TH627

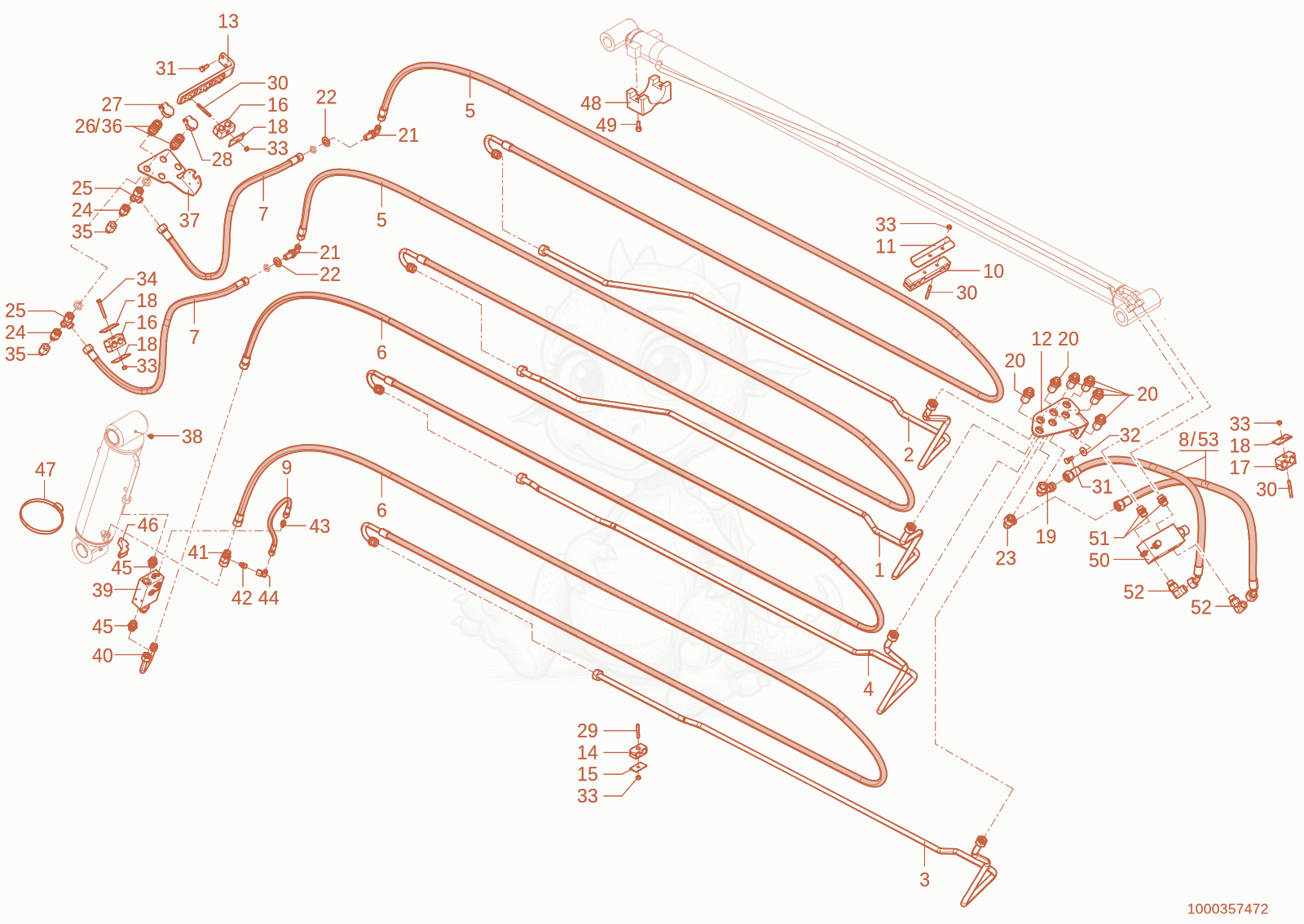

Despiece de Hydraulics Tele · TH627(418-12)
- 11000361474No la vendemoshydraulic pipe×1
- 21000361475No la vendemoshydraulic pipe×1
- 31000361476No la vendemoshydraulic pipe×1
- 41000361477No la vendemoshydraulic pipe×1
- 51000351786No la vendemosHose×2
- 61000351787No la vendemosHose×2
- 71000351789No la vendemosHose×2
- 81000351788No la vendemosHose×2
- SLHYDR 2SC 6,0PN8 0 PN8 0 L400,0 - 1000248144×1
- 101000351284No la vendemoshose clamp×1
- Cover plate - 1000246448×1
- Bracket - 1000336304×1
- Bracket - 1000239988×1
- CLAMP - 1000031626×4
- 151000031230No la vendemoscover plate×4
- CLAMP - 1000031638×2
- CLAMP - 1000124488×1
- 181000031245No la vendemoscover plate×4
- CONNECTION PIECE - 1000168252×1
- 201000015563No la vendemosscrew joint×6
- WSV12LOMDA3C - 1000085080×2
- 221000049221No la vendemoswasher×2
- 231000015513No la vendemosscrew joint×1
- 241000028198No la vendemosscrew joint×2
- 251000015539No la vendemosscrew joint×2
- 261000019246No la vendemosquick lock coupling×2
- Cover - 1000033344×1
- Cover - 1000266545×1
- 291000048892No la vendemosstud×4
- 301000048894No la vendemosstud×4
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- Washer 10,5 St A2C - 1000092303×2
- 331000013022No la vendemoshexagon nut×9
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
- VERSCHRAUBUNG - 1000149766×2
- 361000028413No la vendemosquick lock coupling×2
- Bracket - 1000347790×1
- lock screw - 1000154994×1
- valve - 1000310121×1
- HYDRAULIC PIPE - 1000238489×1
- PIPE LINE - 1000246601×1
- 421000028739No la vendemosscrew joint×1
- 431000015530No la vendemosscrew joint×1
- EW08LOMD - 1000000542×1
- 451000015494No la vendemosscrew joint×2
- Lining - 1000031730×1
- CLAMP - 1000032242×1
- SLIDE PIECE - 1000249132×1
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
- Valve - 1000335231×1
- 511000015494No la vendemosscrew joint×2
- 521000028464No la vendemosscrew joint×2
- 531000372907No la vendemosHose×2
