Despiece de Rear Hood · RTD-SC4

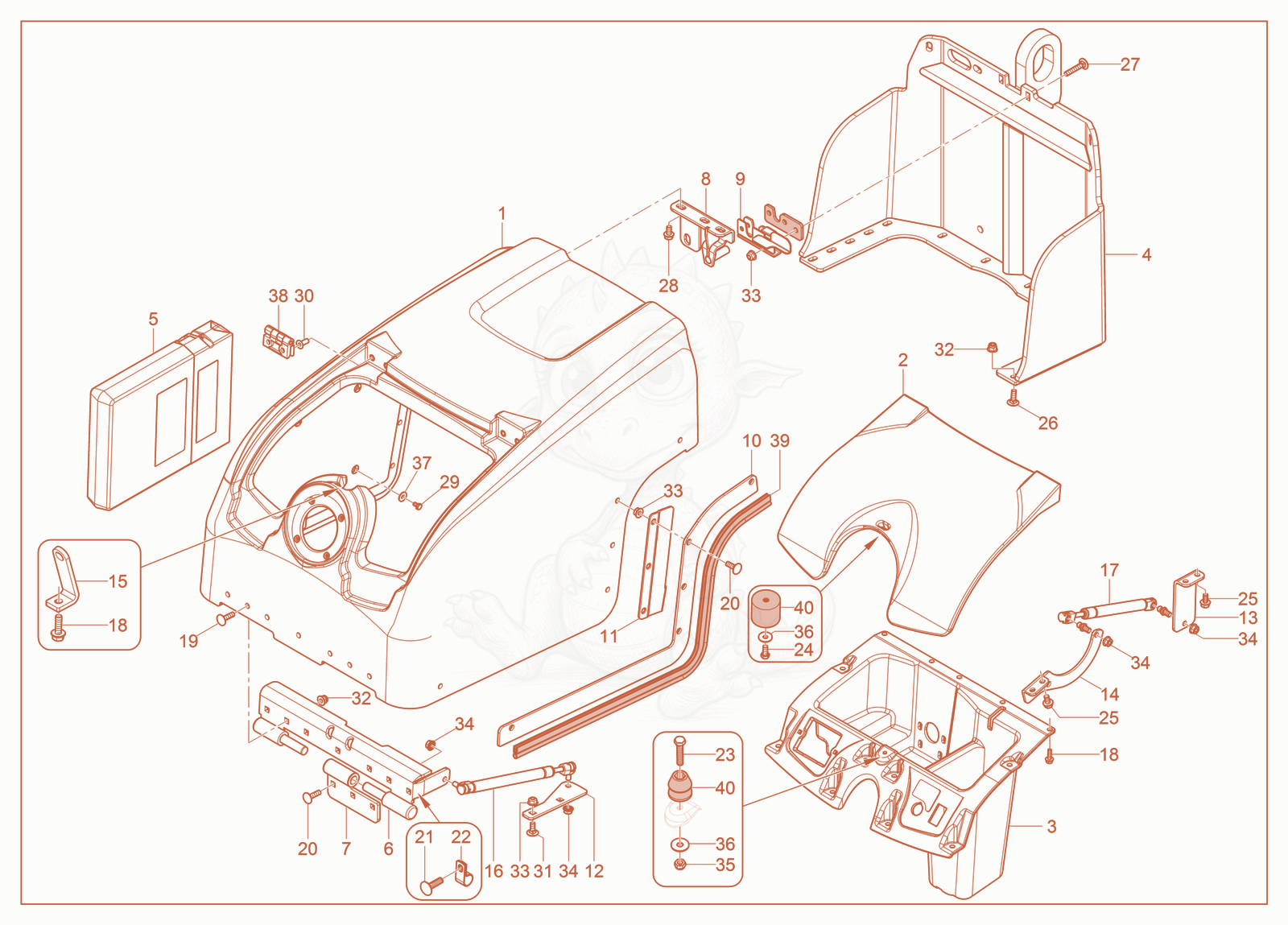

Despiece del Rear Hood de una máquina Wacker Neuson RTD-SC4, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15200017705Precio
    HOOD-REAR,WNC YELLOW P5000112006 - 5200017705×1
  • 15200017709Precio
    HOOD-REAR,SUNBELT GREEN P=5000117952 - 5200017709×1
  • 25200017710Precio
    COVER-ACCESS,SUNBELT GREEN P=5000117952 - 5200017710×1
  • 25200023550Precio
    Set-Gasket, access cover - 5200023550×1
  • 25200017707Precio
    COVER-ACCESS,WNC YELLOW P 5000112006 - 5200017707×1
  • 35200018183Precio
    CONSOLE-STORAGE COMPARTMENT - 5200018183×1
  • 45000150089Precio
    HOUSING-SHROUD,HY P-5000112006 - 5000150089×1
  • 55000153425Precio
    HOLDER-MANUAL - 5000153425×1
  • 65000119984Precio
    HINGE-PIN,LONG P-5000176420 - 5000119984×1
  • 75000164540Precio
    BUSHING-HINGE - 5000164540×1
  • 75000181474Precio
    HINGE-HOUSING P-5000176420 - 5000181474×1
  • 85200019751Precio
    BRACKET-STRIKE WLDMT,Dk Gry P=5000176420 - 5200019751×1
  • 95000160294Precio
    SPACER-LATCH P-5000112007 - 5000160294×1
  • 95000150098Precio
    LATCH-ROTARY - 5000150098×1
  • 105200019756Precio
    Bracket-trim mt, rr, dk gy P=5000176420 - 5200019756×2
  • 115200019758Precio
    Bracket-hold in, rh, dk gy P=5000176420 - 5200019758×1
  • 115200019757Precio
    Bracket-hold in, lh, dk gy P=5000176420 - 5200019757×1
  • 125000154712Precio
    BRACKET-CYL.BALL P-5000176420 - 5000154712×1
  • 135200019783Precio
    Bracket-gas cyl mt, dk gy P=5000176420 - 5200019783×1
  • 145200019785Precio
    Bracket-hood lift, black P=5000112007 - 5200019785×1
  • 155200019786Precio
    Tab-access lock, black P-5000112007 - 5200019786×1
  • 165000155125Precio
    STUD-BALL 10 x M8 - 5000155125×2
  • 165000150104Precio
    CYLINDER-GAS SPRING - 5000150104×1
  • 175000155125Precio
    STUD-BALL 10 x M8 - 5000155125×2
  • 175000154401Precio
    CYLINDER-GAS SPRING - 5000154401×1
  • 185200020974Precio
    Screw M6 x 20, hex hd flange 8.8, zn blk - 5200020974×14
  • 195000011151Precio
    Bolt-Carriage M8x30-8.8,Blk EP3 - 5000011151×6
  • 205000163950No la vendemos
    Carriage bolt×16
  • 215000118318Precio
    Bolt-Carriage M8x35-4.6,Blk EP3 - 5000118318×1
  • 225000163956Precio
    CLAMP-TUBE .625 ID COV-1111 - 5000163956×1
  • 235000011474Precio
    SCREW M5X25 HX.HD. - 5000011474×1
  • 245000011477Precio
    SCREW M5 X 12 HX.HD. - 5000011477×1
  • 255000155839Precio
    SCREW M8X16 HX HD,SERR FLG BLK - 5000155839×4
  • 265000011457Precio
    SCREW M8 X 25 HX.HD. - 5000011457×14
  • 275000157166Precio
    Bolt-Carriage M8x45-4.6,Blk EP3,Med Loc - 5000157166×2
  • 285000155839Precio
    SCREW M8X16 HX HD,SERR FLG BLK - 5000155839×3
  • 295000012356Precio
    SCREW M6 X 10 HX.HD. - 5000012356×4
  • 305000021563Precio
    SCREW M8 X 20 FLAT HD. - 5000021563×8
  • 315000163954Precio
    Bolt-Carriage M8x20-8.8,Blk EP3 - 5000163954×2
  • 325100045993Precio
    NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×28
  • 331000343350Precio
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×4
  • 345000030066Precio
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 355000010369Precio
    NUT-LOCK M5 HEX. - 5000010369×1
  • 365000010372Precio
    WASHER B5.3 FLAT - 5000010372×2
  • 375000010373Precio
    WASHER B6.4 FLAT - 5000010373×4
  • 385000154400Precio
    HINGE-ACCESS - 5000154400×2
  • 395100058111Precio
    SEAL-TRIM, 822MM - 5100058111×2
  • 405000170979Precio
    LATCH-DOOR - 5000170979×1
