RD 27- 100 ROLLER

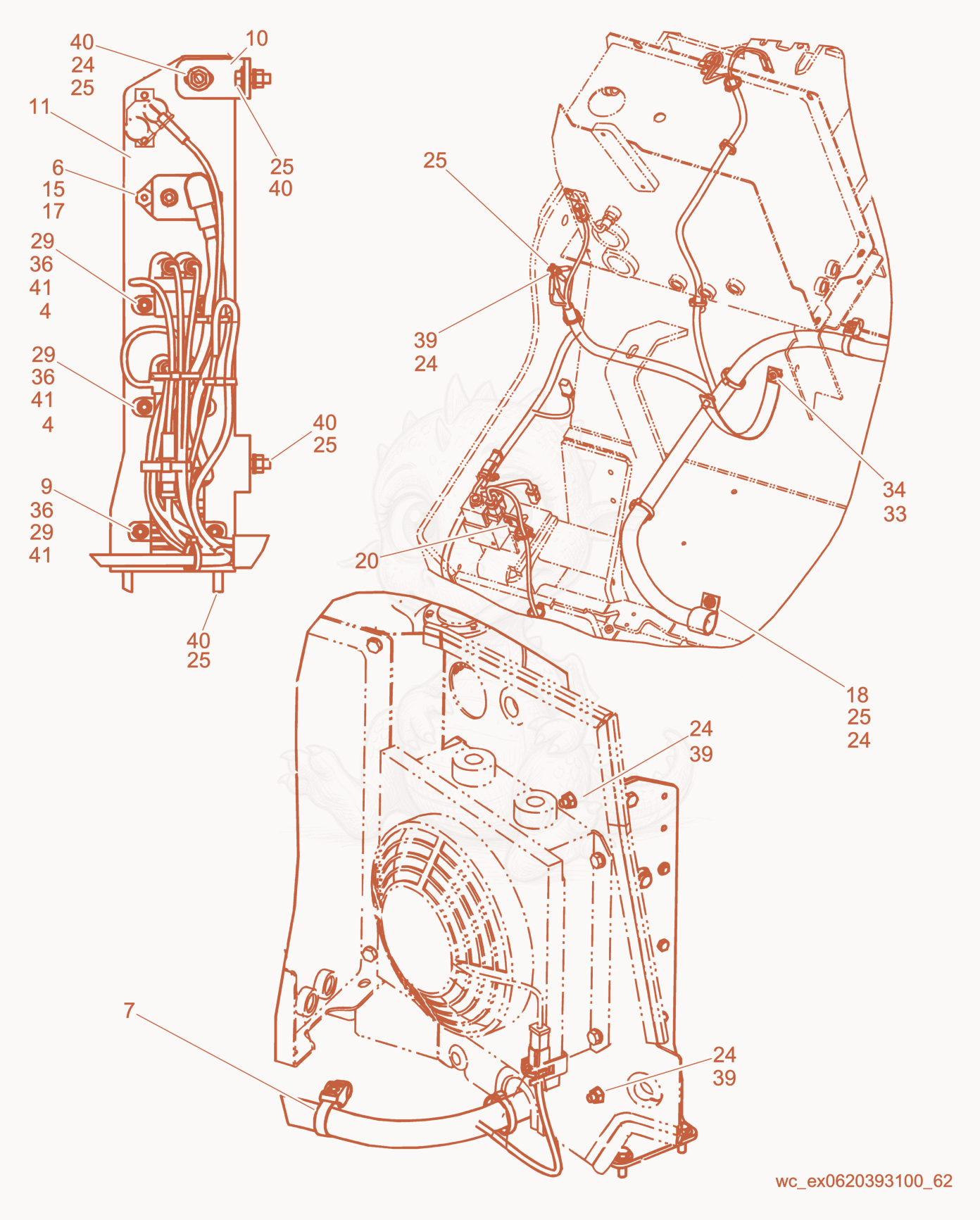

Despiece de Wiring Diagram - Engine StartRelay · RD27-100
- 45000161590No la vendemosStarter relay switch×2
- CLAMP-HOSE - 5000161743×1
- 95000174195No la vendemosSwitch cpl.×1
- plate - 5000174236×1
- BRACKET-RELAY - 5000174261×1
- SCREW-13-32 - 5000174308×2
- washer - 5000161883×2
- CLIP-CABLE - 5000161886×1
- CLIP-WIRING HARNESS - 5000161892×1
- NUT M8 X 1.25 - 5000161895×4
- 255000161907No la vendemosWasher×7
- LOCKNUT M6 X 1 - 5000161930×4
- washer - 5000162006×2
- NUT M10 X 1.5 - 5000162008×1
- BOLT M6 X 1 - 5000162010×6
- 395000162024No la vendemosWasher×2
- BOLT M8 X 1.25 - 5000162029×5
- washer - 5000162058×6
