PT2H Pump

Despiece de Fuel Tank cpl. · PT2H

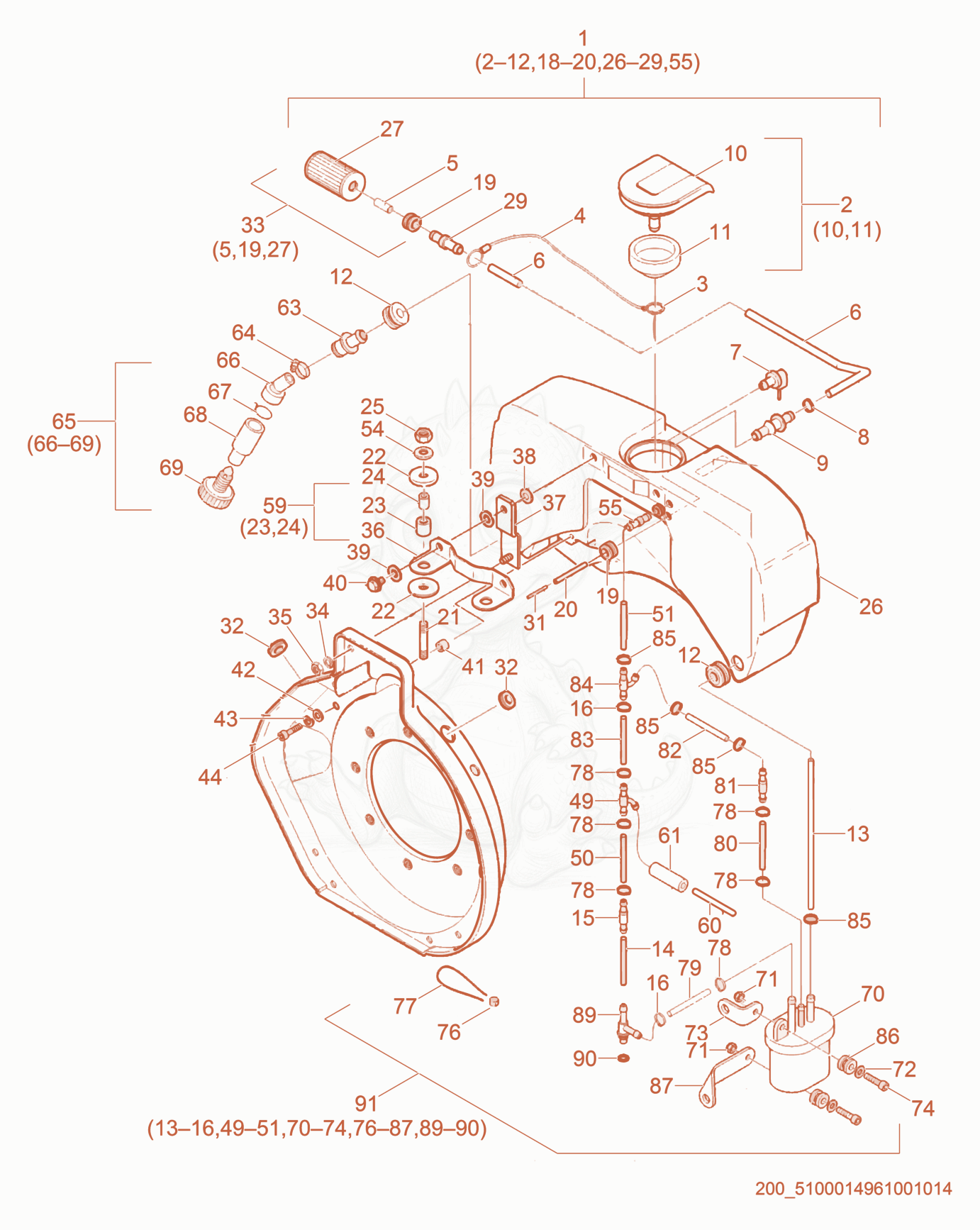

Despiece del Fuel Tank cpl. de una máquina Wacker Neuson PT2H, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000209680Precio
FUEL TANK ASSY,3L - 5000209680×1
25000108861Precio
CAP-TANK,FUEL - 5000108861×1
35000107398Precio
WASHER-LOCK - 5000107398×1
45000128951Precio
WIRE - 5000128951×1
65000128952Precio
FUEL PIPE 3.5 X 260 - 5000128952×1
75000108870Precio
VALVE-VENTILATION,FUEL - 5000108870×1
85000108879Precio
CLAMP 11.3 - 5000108879×1
95000128953Precio
FITTING-STRAIGHT - 5000128953×1
115000108864Precio
GASKET-CAP,FUEL - 5000108864×1
125000108874Precio
SLEEVE-RUBBER - 5000108874×2
135100016570No la vendemos
Fuel hose×1
145100016571No la vendemos
Fuel pipe×1
155000108882Precio
VALVE-VENTILATION,FUEL - 5000108882×1
165000209728Precio
FITTING-STRAIGHT - 5000209728×1
185000108885Precio
SLEEVE-RUBBER - 5000108885×1
195000209734Precio
SLEEVE - 5000209734×2
205000108887Precio
HOSE-BREATHER 1 X 3 X 85 - 5000108887×1
215000151526Precio
STUD M8X25 8.8 A3C - 5000151526×2
225000108892Precio
DISC 8.2 X 22 X 2 - 5000108892×4
245000108895Precio
SLEEVE-INSULATING - 5000108895×2
255000151530Precio
NUT-HEX M8 8 C3A - 5000151530×2
295000128954Precio
FITTING-STRAIGHT - 5000128954×1
315000108888Precio
TUBE 1.4 X 2 X 16 - 5000108888×1
325000108889Precio
SLEEVE - 5000108889×1
335000128955Precio
FILTER-FUEL - 5000128955×1
345000151456Precio
WASHER-SPRING 6 A3C - 5000151456×2
355000151323Precio
NUT-HEX M6 8 A3C - 5000151323×2
365000108893Precio
BRACE-SUPPORT - 5000108893×1
375000108896Precio
BRACE-SUPPORT - 5000108896×2
385000151540Precio
DISC A6.4 A3C - 5000151540×2
395000108791Precio
DISC 7.1 X 17.9 X 2 - 5000108791×4
405000108891Precio
SCREW HEX HD,M6 X 16 - 5000108891×2
415000108890Precio
DISC 6.5 X 13 X 4.8 - 5000108890×2
425000151324Precio
WASHER-FLAT 6.4 - 5000151324×4
435000151456Precio
WASHER-SPRING 6 A3C - 5000151456×4
445000151231Precio
SCREW-ALLEN, M6X16 - 5000151231×4
495000128959Precio
FITTING-T - 5000128959×1
505000207528Precio
HOSE-FUEL LINE - 5000207528×1
515000104444Precio
HOSE 40MM - 5000104444×1
545000151553Precio
WASHER-FLAT 8.4 ST A3C - 5000151553×2
555000128962Precio
FITTING-STRAIGHT - 5000128962×1
595000151489Precio
TUBE-ASSEMBLY,INSULATING - 5000151489×2
605200022026No la vendemos
Hose×1
615000209716No la vendemos
Fuel hose×1
635000209719Precio
FITTING-STRAIGHT - 5000209719×1
645000202465Precio
clamp - 5000202465×1
655000209871Precio
WATER SEPERATOR COMP - 5000209871×1
665000202412Precio
HOSE 20 X 12MM - 5000202412×1
675000108688Precio
CLIP-HOSE - 5000108688×1
685000209707Precio
FLUID SEPARATOR-WATER - 5000209707×1
695000202461Precio
SCREW-M10 - 5000202461×1
705100016572Precio
FUEL FILTER - 5100016572×1
715000209735Precio
NUT M4 - 5000209735×2
725000108843Precio
WASHER 4.3,A3C,140HV - 5000108843×2
735000209723Precio
BRACKET-SUPPORT - 5000209723×1
745000129026Precio
SCREW M4X16 A3C-8.8,CH.HD. - 5000129026×2
755000209720Precio
Label - 5000209720×1
765000201399Precio
SEAL 8MM - 5000201399×1
775000201400Precio
WIRE 0.5-0.3 - 5000201400×1
785000207586Precio
CLAMP-HOSE - 5000207586×5
795000209693Precio
FUEL HOSE 5 X 275 - 5000209693×1
805000209726Precio
FUEL HOSE 5 X 285 - 5000209726×1
815000047977Precio
FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
825000207574Precio
HOSE-FUEL LINE 5 X 50 - 5000207574×1
835000207524Precio
HOSE-FUEL LINE 5X35 - 5000207524×1
845000108878Precio
CONNECTOR-NIPPLE,HOSE - 5000108878×1
855000108879Precio
CLAMP 11.3 - 5000108879×6
865000209738Precio
BUSHING - 5000209738×2
875000209722Precio
BRACKET-SUPPORT - 5000209722×1
895000209682Precio
T-FITTING - 5000209682×1
905000071130Precio
O-RING 7.5 X 10.5 X 1.5 - 5000071130×1
915100017226Precio
FUEL PIPE - 5100017226×1
