Vibratory Plate DPU6555Hehapn

Despiece de Cylinder head · DPU6555HEHAPN

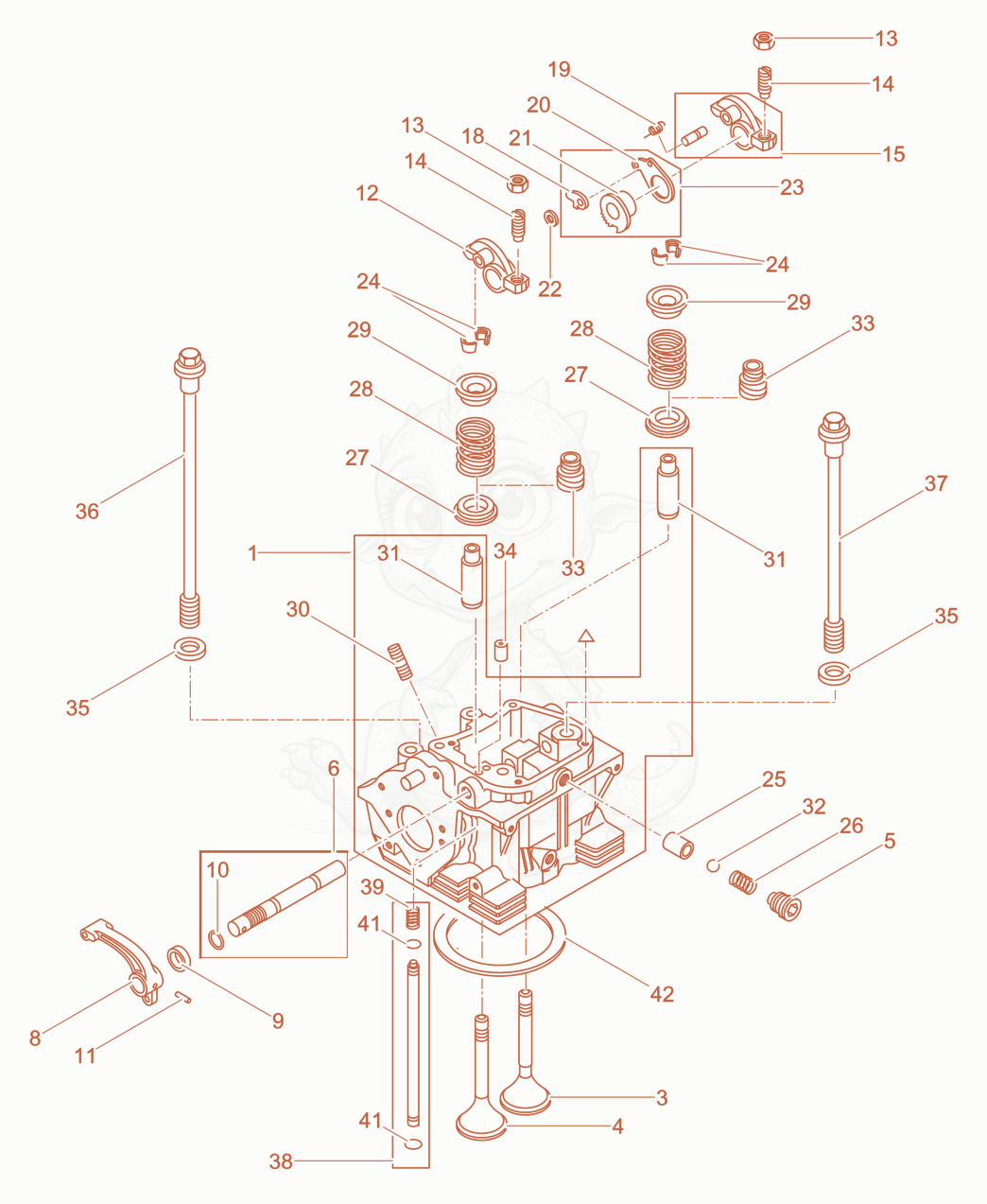

Despiece del Cylinder head de una máquina Wacker Neuson DPU6555HEHAPN, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15100065040Precio
Cylinder head - 5100065040×1
35000105044Precio
VALVE-EXHAUST - 5000105044×1
45000105043Precio
VALVE-INLET - 5000105043×1
55000094888Precio
Screw - 5000094888×1
65000105928Precio
SHAFT-ROCKER - 5000105928×1
85000094909Precio
LEVER-DECOMPRESSION - 5000094909×1
95000097401Precio
SEAL - 5000097401×1
105000108801Precio
O-RING 8X2 - 5000108801×1
115000020183Precio
SLEEVE-DOWEL,SPR.4X22 - 5000020183×1
125000098449Precio
ROCKER ARM INTAKE - 5000098449×1
135004101500Precio
NUT-LOCK 5/16X24 - 5004101500×2
145000094891Precio
SCREW-ADJUSTING - 5000094891×2
155000098448Precio
ROCKER ARM EXHAUST - 5000098448×1
185000094897Precio
RATCHET-PAWL - 5000094897×1
195000094894Precio
Spring - 5000094894×1
205000094895Precio
HOLDER - 5000094895×1
225000202427Precio
CLIP-RETAINING - 5000202427×1
235000126917Precio
GEAR SEGMENT - 5000126917×1
245000094899Precio
SET-TAPER,CONE VALVE - 5000094899×2
255100032122Precio
Bush - 5100032122×1
265000094887Precio
Spring - 5000094887×1
275000094902No la vendemos
Washer×2
285100062279No la vendemos
Valve spring×2
295100051933No la vendemos
Spring holder×2
305000207595Precio
STUD M8X35 - 5000207595×1
315000094890Precio
GUIDE-VALVE STEM - 5000094890×2
325000066801Precio
Ball - 5000066801×1
335100010410Precio
Seal - 5100010410×2
345000207538Precio
jet - 5000207538×1
355000104388No la vendemos
Washer×4
365100030359Precio
Hexagonal head cap screw - 5100030359×2
375000094882Precio
SCREW-SOCKET HEAD - 5000094882×2
385000094906Precio
TUBE-GREASE - 5000094906×1
395000094903Precio
Spring - 5000094903×1
415000094905Precio
O-Ring - 5000094905×2
425100062304No la vendemos
Cylinder head gasket 1,3×1
425100062303No la vendemos
Cylinder head gasket 1,25×1
425100062301No la vendemos
Cylinder head gasket 1,2×1
425100062300No la vendemos
Cylinder head gasket 1,15×1
425100062299No la vendemos
Cylinder head gasket 1,1×1
425100062297No la vendemos
Cylinder head gasket 1,05×1
425100062296No la vendemos
Cylinder head gasket 1,0×1
425100062295No la vendemos
Cylinder head gasket 0,95×1
425100062294No la vendemos
Cylinder head gasket 0,85×1
425100062293No la vendemos
Cylinder head gasket 0,8×1
425100062292No la vendemos
Cylinder head gasket 0,75×1
425100062290No la vendemos
Cylinder head gasket 0,7×1
425100062289No la vendemos
Cylinder head gasket 0,65×1
425100062288No la vendemos
Cylinder head gasket 0,6×1
425100062287No la vendemos
Cylinder head gasket 0,55×1
425100062285No la vendemos
Cylinder head gasket 0,5×1
425100062284No la vendemos
Cylinder head gasket 0,45×1
425100062283No la vendemos
Cylinder head gasket 0,4×1
425100062282No la vendemos
Cylinder head gasket 0,35×1
425100062281No la vendemos
Cylinder head gasket 0,3×1
