CRT48-57K Trowel

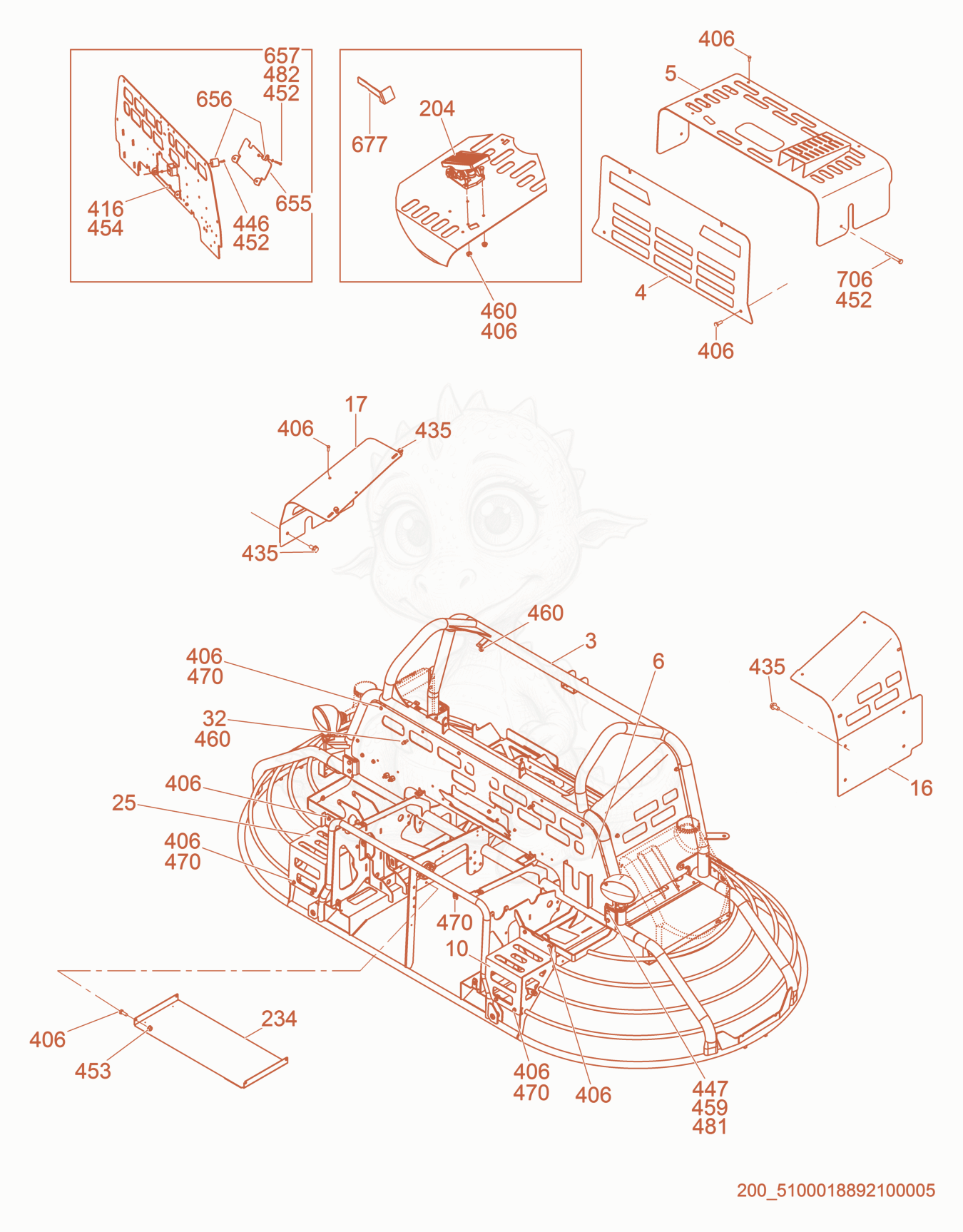

Despiece de Panel cpl. · CRT48-57K-MS
- 35200023465No la vendemosUpper frame×1
- PLATE-FRONT GRILL P-5000112006 - 5000164099×1
- PLATE-FOOT ASSEMBLY P-5000176420 - 5100018893×1
- Plate-Panel, Engine P-5000112006 - 5200024411×1
- PLATE-STEP,CRT48 P-5000176420 - 5000164103×1
- 165200023455No la vendemosLeft side panel×1
- 175200023453No la vendemosRight side panel×1
- PLATE-STEP,RIGHT P-5000176420 - 5000165031×1
- STUD-BALL 10 x M8 - 5000155125×2
- CONTROL-ELECTRONIC PEDAL - 5200024607×1
- GUARD-SPLASH P-5000176420 - 5000164908×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×32
- SCREW M8 X 20 HX.HD. - 5000012362×2
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×10
- SCREW M5 X 12 HX.HD. - 5000011477×1
- SCREW M10 X 30 HX.HD - 5000011439×8
- SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×2
- NUT-LOCK M6 HEX. - 5000010368×6
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×6
- NUT-LOCK M8 HEX - 5000010367×2
- NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
- NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×13
- WASHER B10.5 FLAT - 5000010621×8
- WASHER B5.3 FLAT - 5000010625×1
- Cover-Engine Panel P-5000112006 - 5200024413×1
- 6565000192831No la vendemosLatch×1
- SCREW M5X25 HX.HD. - 5000011474×1
- 6775200025746No la vendemosGuard×1
