A3000-POWER UNIT,HONDA

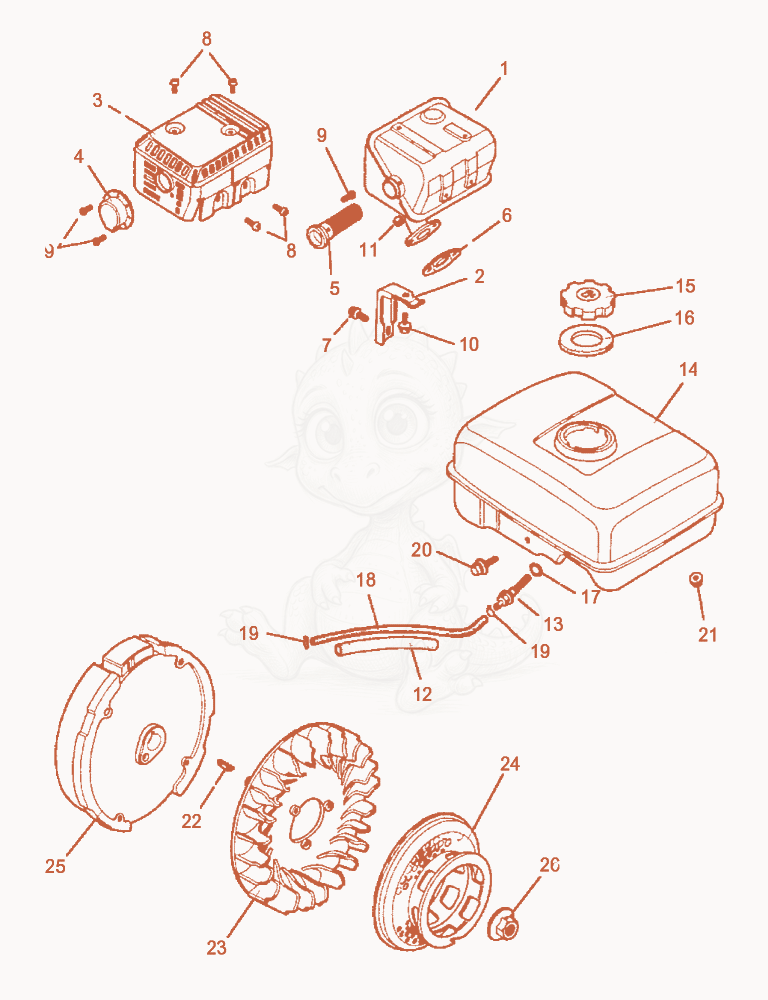

Despiece de Muffler-Tank-Fly Wheel · A3000
- MUFFLER-EXHAUST - 5000107065×1
- BRACKET-MUFFLER STAY - 5000076606×1
- COVER-PROTECTION - 5000107066×1
- BAFFLE-EXHAUST - 5000107072×1
- 55000107067No la vendemosSpark arrester×1
- GASKET-MUFFLER MOUNT - 5000081768×1
- SCREW M6 X 13,HEX.FLANGE - 5000072773×1
- SCREW M5 X 8,TAPPING - 5000071070×4
- SCREW M4 X 6,C - 5000071073×3
- SCREW M6 X 12,HX.FLANGE - 5000072333×1
- NUT M8,HEX - 5000071076×2
- hose cover - 5000081764×1
- FILTER-FUEL,INTANK - 5000071083×1
- TANK-FUEL - 5000071080×1
- CAP-FUEL TANK - 5000081662×1
- 165000107068No la vendemosSeal×1
- O-RING 14 X 1.3 - 5000071082×1
- HOSE-4.5MM I D X 30.5MM - 5000077733×1
- CLAMP B8,HOSE CLIP - 5000054136×2
- SCREW M6 X 25,HX.FLANGE - 5000071081×1
- 215000071037No la vendemosNut×2
- WEDGE 25 X 18 - 5000068967×1
- FAN - 5000070976×1
- PULLEY-REWIND STARTER - 5000081803×1
- 255000107086No la vendemosFly wheel×1
- NUT M14 - 5000054005×1
