280

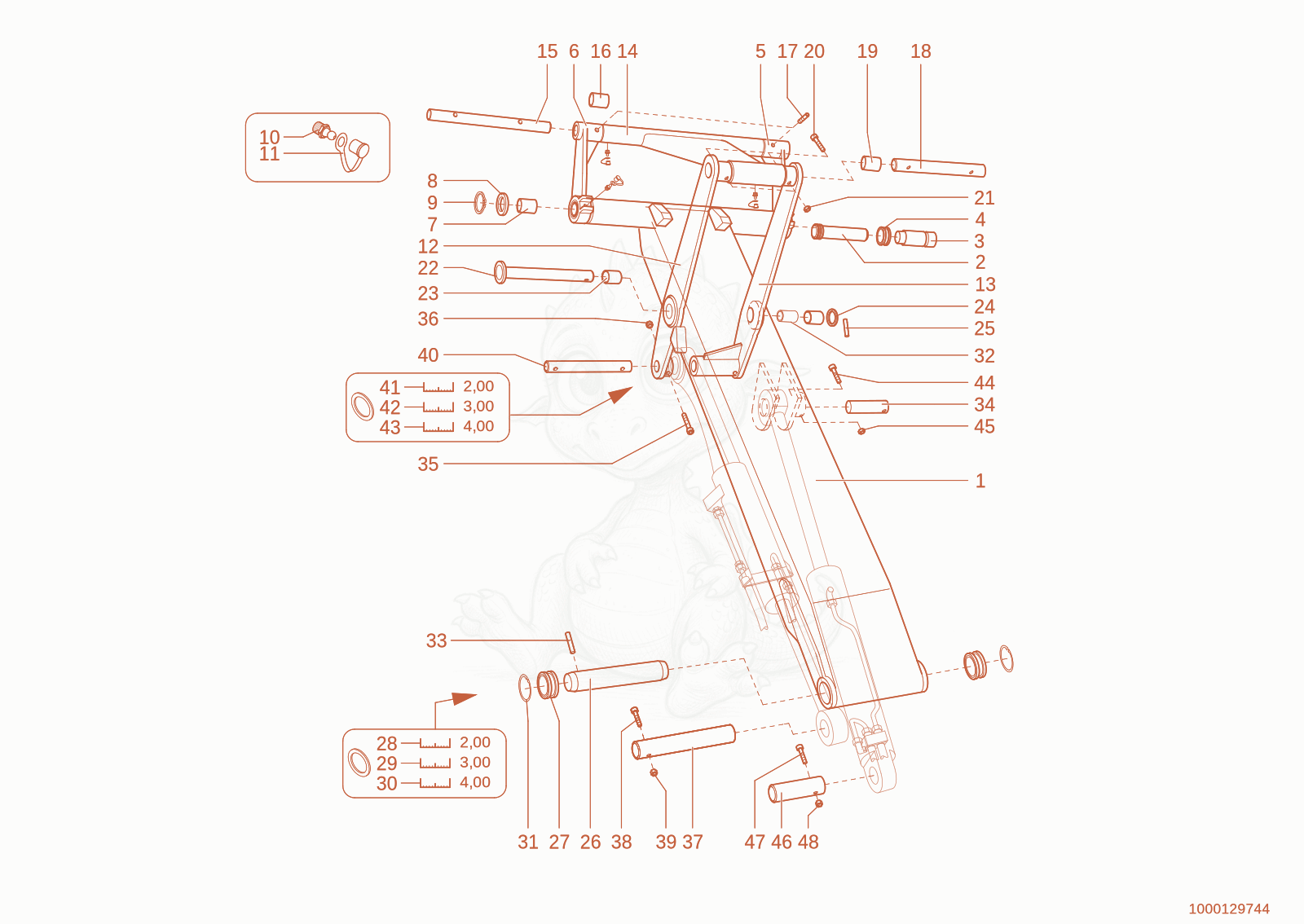

Despiece de loading system · 280
- 11000124918No la vendemoslift arm×1
- 21000037123No la vendemospiston rod×2
- 31000051112No la vendemosguide tube×2
- seal kit - 1000105444×2
- MOUNTING - 1000034825×1
- MOUNTING - 1000034821×1
- 71000032711No la vendemosbearing bush×2
- SHIM - 1000092560×2
- LOCK RING - 1000092427×2
- grease nipple - 1000050469×5
- 111000033442No la vendemoscap×5
- 121000034820No la vendemosrocker arm×1
- 131000034824No la vendemosrocker arm×1
- 141000034822No la vendemostilt rod×1
- Pin - 1000051116×1
- bushing - 1000032685×2
- 171000032970No la vendemosthread pin×2
- 181000051113No la vendemospin×1
- bushing - 1000032685×2
- 6-Point screw M8x80-8.8 A2C - 1000085319×2
- 211000013022No la vendemoshexagon nut×2
- PIN - 1000051079×1
- bushing - 1000032716×2
- WASHER - 1000034866×2
- 251000049780No la vendemoscotter pin×1
- Pin - 1000051117×1
- BUSHING - 1000032723×2
- DISC - 1000090624×1
- DISC - 1000090626×1
- DISC - 1000090628×1
- 311000049530No la vendemoslock ring×2
- PIPE - 1000034877×1
- 331000104384No la vendemosspiral tension pin×1
- Pin - 1000051115×1
- hex screw - 1000085320×1
- 361000013022No la vendemoshexagon nut×1
- Pin - 1000051118×1
- 6-Point screw M8x80-8.8 A2C - 1000085319×1
- 391000013022No la vendemoshexagon nut×1
- Pin - 1000098897×1
- DISC - 1000090624×1
- DISC - 1000090626×1
- DISC - 1000090628×1
- hex screw - 1000085320×2
- 451000013022No la vendemoshexagon nut×2
- Pin - 1000051118×1
- 6-Point screw M8x80-8.8 A2C - 1000085319×1
- 481000013022No la vendemoshexagon nut×1
