1150

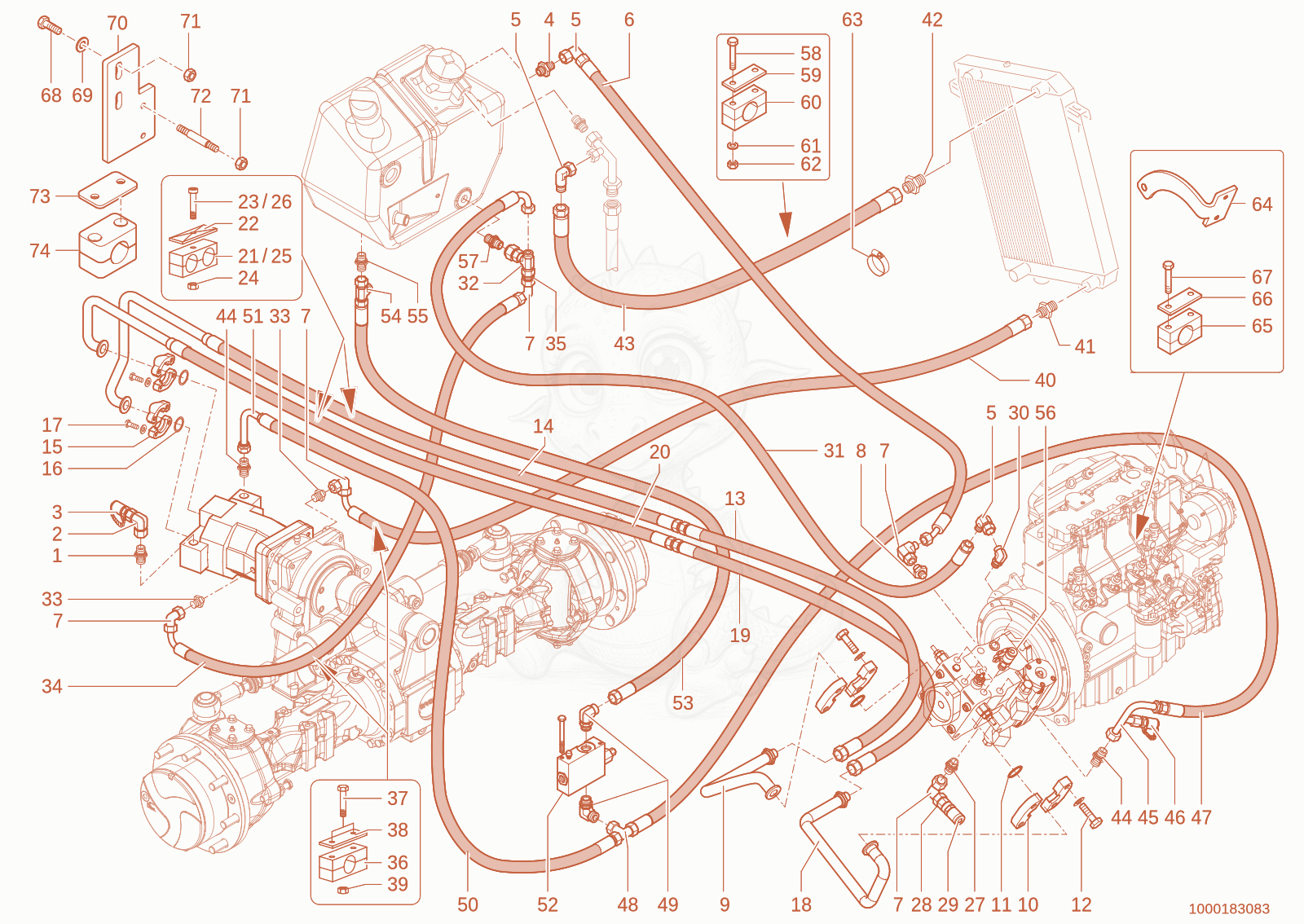

Despiece de circulation · 1150
- 11000000577No la vendemosscrew joint×1
- EW08LOMD - 1000000542×1
- 31000000575No la vendemosminimess point×1
- GE22LR A3C - 1000100732×1
- EW22LOMD - 1000020261×2
- SLHYDR SPIR16 PN22 0 PN18 45 L1100 0 - 1000144652×1
- 71000015513No la vendemosscrew joint×4
- 81000028323No la vendemosscrew joint×1
- PIPE LINE - 1000169184×1
- 101000028689No la vendemoshalf flange×4
- O-RING - 1000090485×2
- 121000015346No la vendemoshex screw×8
- Slhydr4Sh19Pp250Pe2590L4750 1000135814×1
- Slhydr4Sh19Ps25180Pp250L1210 1000144572×1
- 151000028694No la vendemoshalf flange×4
- o-ring - 1000020772×2
- 171000032990No la vendemoshex screw×8
- PIPE LINE - 1000169185×1
- Slhydr4Sh19Pp250Pe2590L3700 1000135815×1
- 201000144573No la vendemosHose×1
- clamp - 1000032359×1
- 221000031631No la vendemoscover plate×2
- 231000048174No la vendemoscheese head screw×1
- 241000013022No la vendemoshexagon nut×2
- Double clamp - 1000100565×1
- cheese head screw - 1000085465×1
- GE18LM22X1,5EDOMDA3C - 1000085104×1
- REDUCTION - 1000028337×1
- 291000028095No la vendemosdrain coupling×1
- EWE18LM22X1,5 A3C - 1000102939×1
- SLHYDR SPIR20 PN18 0 PN22 90 L860,0 0 - 1000144639×1
- ET22LOMDA3C - 1000085124×1
- GE18LM18X1,5EDOMDA3C - 1000085088×2
- SLHYDR SPIR16 PN18 0 PN18 90 L1290 0 - 1000146246×1
- 351000028177No la vendemosscrew joint×1
- CLAMP - 1000141576×2
- hex screw M6x60-8.8 A2C-DIN931 - 1000085312×4
- 381000031685No la vendemoscover plate×4
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- Slhydrspir16Pn220Pn1890L2450 1000181030×1
- GE22LMEDOMDA3C - 1000085056×1
- 421000028300No la vendemosscrew joint×2
- Slhydrspir20Pn220Pn2290L2030 1000182743×1
- GE12LM14X1,5EDOMDA3C - 1000085078×2
- 451000051048No la vendemosconnection piece×1
- 461000028660No la vendemosminimess point×1
- SLHYDR 2SC 10 PN12 0 PN12 0 L1320 - 1000156672×1
- ET12LOMDA3C - 1000015519×1
- 491000028478No la vendemosscrew joint×2
- SLHYDR 2SC 10 PN12 0 PN12 45 L1220 0 - 1000144638×1
- 511000051026No la vendemosconnection piece×1
- 521000052099No la vendemosinching valve×1
- SLHYDR 2SC 10 PN12 0 PN12 90 L270,0 - 1000098319×1
- EL12LOMDA3C - 1000015516×1
- 551000028596No la vendemosscrew joint×1
- 561000028224No la vendemosminimess point×1
- 571000052083No la vendemosnon return valve×1
- hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
- 591000031685No la vendemoscover plate×1
- CLAMP - 1000141576×1
- 611000049283No la vendemosbearing disc×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- CLAMP - 1000031691×1
- 641000183191No la vendemosbracket×2
- CLAMP - 1000031124×2
- 661000031685No la vendemoscover plate×2
- hex screw M6x60-8.8 A2C-DIN931 - 1000085312×4
- hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
- WASHER - 1000092290×2
- 701000149585No la vendemosbracket×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- STUD - 1000048886×2
- 731000031643No la vendemoscover plate×2
- CLAMP - 1000032060×2
