Vibroplate xPU KMAT

XPUKMAT Electric 1B50E Diagram

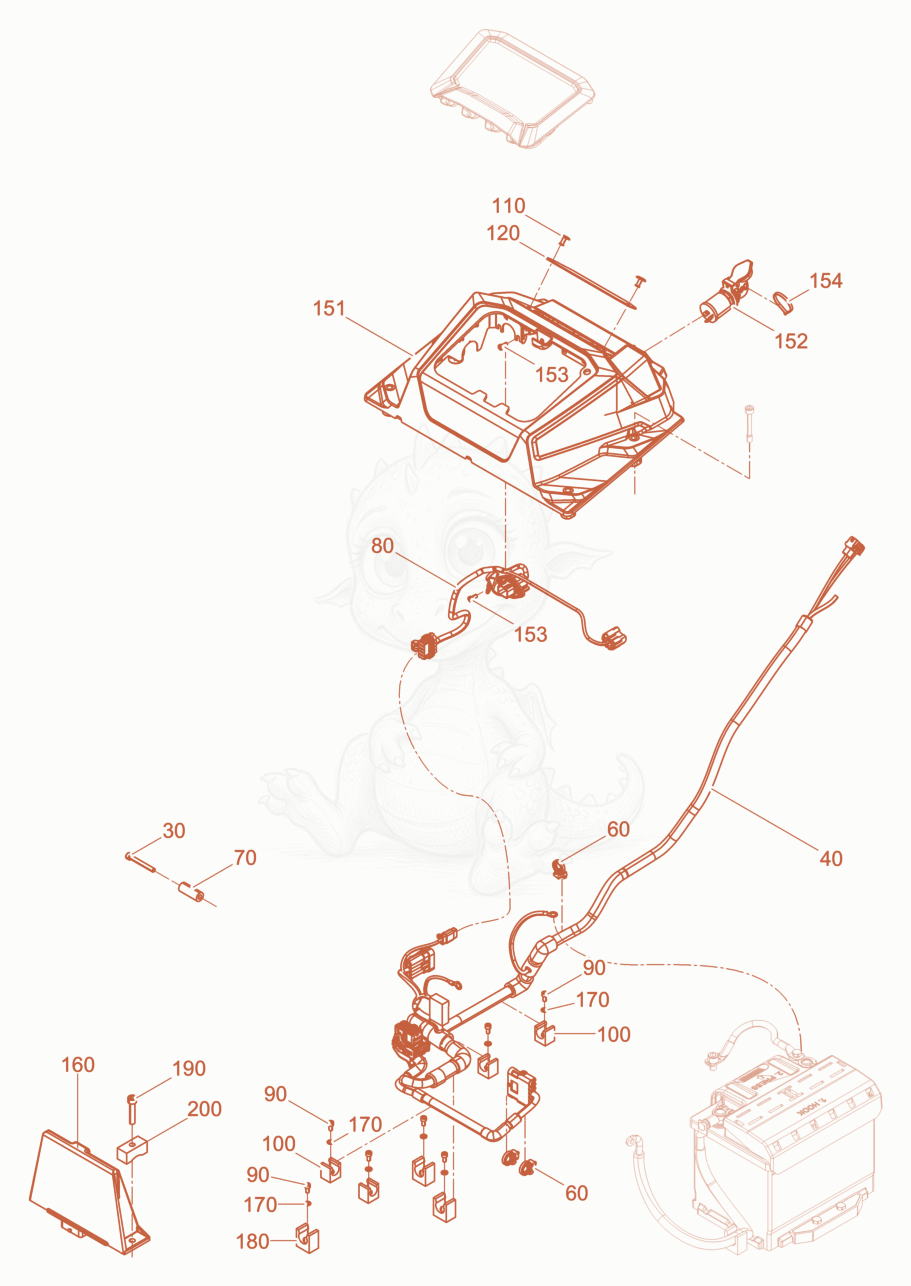

Exploded parts diagram of the Electric 1B50E of a Wacker Neuson XPUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305000013000Price
    SCREW M6 X 50 SOC.HD. - 5000013000×1
  • 405100055766Not stocked
    wire harness×1
  • 605100064264Not stocked
    cable tie×3
  • 705100070236Not stocked
    Bushing spacer×1
  • 805100067810Not stocked
    wire harness×1
  • 905000024617Price
    SCREW M5 X 10 SOC.HD. - 5000024617×7
  • 1005100010281Price
    Hose Clamp - 5100010281×4
  • 1105100060234Not stocked
    Blind rivet×2
  • 1205100072016Not stocked
    Plate (Compatec)×1
  • 1515100070051Not stocked
    Batterieschutz×1
  • 1525000220116Price
    ignition starter switch - 5000220116×1
  • 1535100058845Price
    Oval head screw 5x12 - 5100058845×2
  • 1545000038489Not stocked
    Tie cable×1
  • 1605100049692Not stocked
    control unit×1
  • 1705000010625Price
    WASHER B5.3 FLAT - 5000010625×7
  • 1805000210107Price
    CLAMP - 5000210107×3
  • 1905000011539Price
    SCREW M8 X 40 SOC.HD. - 5000011539×2
  • 2005100079742Not stocked
    Plate×2
