WPP 1540Ww

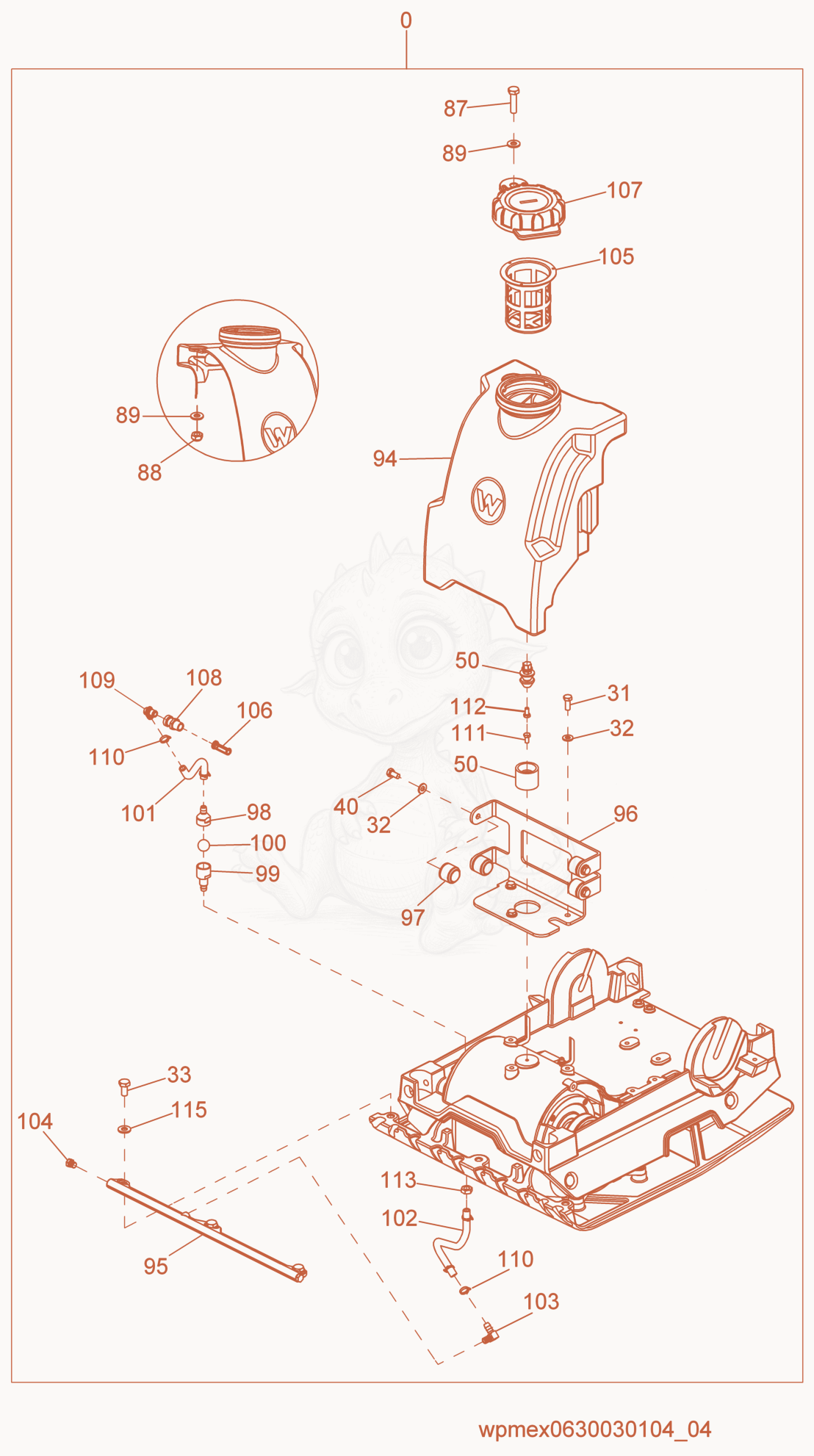

WPP1540WW Water System Kit Diagram
- 5000400665Not stockedWater System Kit×1
- SCREW M8 X 20 HX.HD. - 5000012362×3
- WASHER-LOCK B8 - 5000033198×7
- SCREW M10 X 20 HX.HD. - 5000012364×3
- SCREW M8 X 16 HX.HD. - 5000012361×4
- 505000401880Not stockedLock×1
- SCREW M10 X 40 HX.HD - 5000401557×1
- NUT-LOCK,M10 - 5000401129×1
- WASHER-M10 - 5000401128×2
- 945000402008Not stockedWater tank×1
- 955000400479Not stockedManifold×1
- 965000402030Not stockedBracket×1
- Shockmount - 5000401835×4
- VIBRATION VALVE-UPPER - 5000400346×1
- VIBRATION VALVE-LOWER - 5000400347×1
- FLOAT BALL - 5000400405×1
- 1015000401881Not stockedHose×1
- 1025000402747Not stockedHose Kit×1
- FITTING-MANIFOLD - 5000401922×1
- PLUG-SLOTTED - 5000402081×2
- 1055000401079Not stockedFilter×1
- 1065000402025Not stockedFilter×1
- CAP-RUBBER - 5000400786×1
- 1085000402316Not stockedCoupling×1
- 1095000402315Not stockedMale coupling×1
- CLAMP-HOSE - 5000402180×3
- SCREW M6 X 12 HX.HD. - 5000012357×2
- SCREW M6 X 25 HX.HD. - 5000011469×1
- Nut - 5000401851×1
- WASHER B10.5 FLAT - 5000010621×3
