Vibroplate WP KMAT

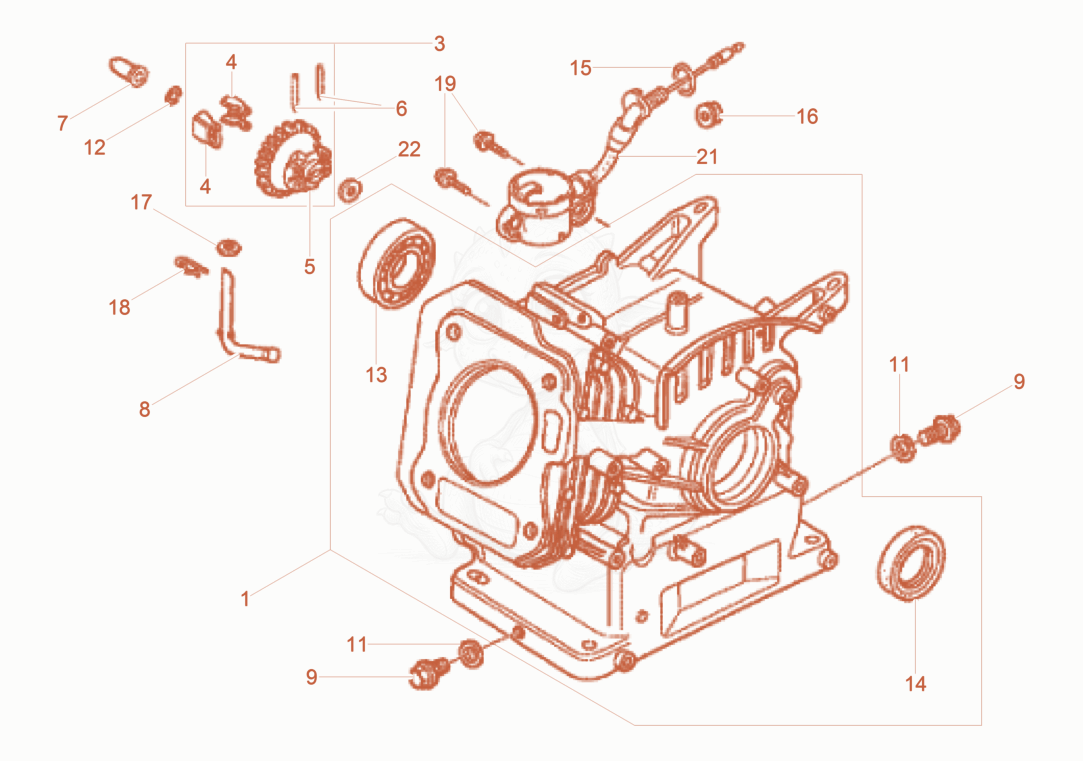

WPKMAT Cylinder housing Diagram
- 15100005428Not stockedCylinder Housing cpl.×1
- 35100005429Not stockedGovernor cpl.×1
- 45100005430Not stockedWeight×2
- 55100005431Not stockedBracket×1
- PIN-GOVERNOR WEIGHT - 5000156689×2
- 75100005432Not stockedGovernor Pin×1
- 85100005433Not stockedGovernor×1
- PLUG - 5000070964×2
- Washer - 5000070963×2
- RET.RING 7.7MM,FORM C - 5000081615×1
- 135100003485Not stockedGrooved ball bearing×1
- Ring seal - 5100039035×1
- 155000208616Not stockedO-Ring×1
- 165000072332Not stockedFlange nut×1
- WASHER 6MM,PLAIN - 5000071639×1
- PIN - 5000054033×1
- 195100003498Not stockedFlange screw×2
- SWITCH - 5000216513×1
- WASHER 6MM,PLAIN - 5000071639×1
