Single direction vibratory plate WP1030A

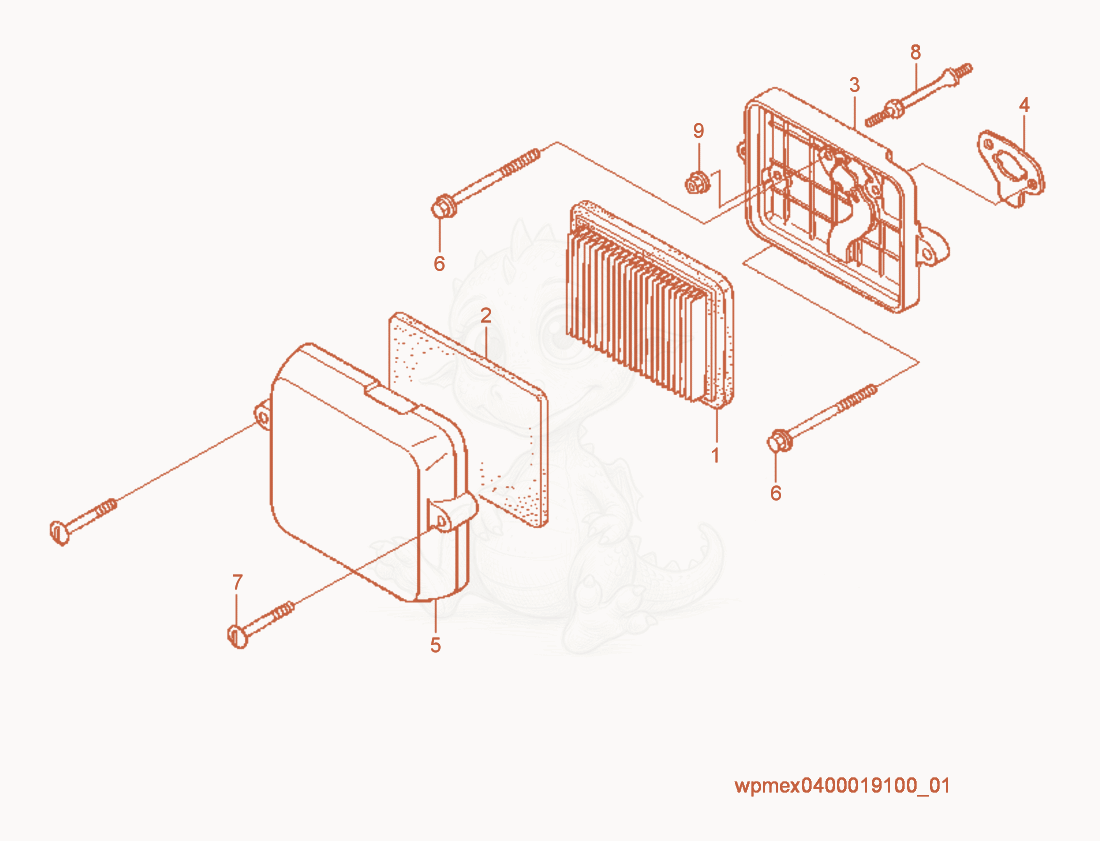

WP1030A Air Cleaner cpl. Diagram

Exploded parts diagram of the Air Cleaner cpl. of a Wacker Neuson WP1030A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000209825Price
    ELEMENT-AIR FILTER - 5000209825×1
  • 25000162094Price
    ELEMENT-AIR FILTER - 5000162094×1
  • 35000162095Not stocked
    Housing×1
  • 45000162097Not stocked
    Gasket×1
  • 55000162096Not stocked
    Air cleaner cover×1
  • 65000162098Price
    BOLT-FLANGE M5 X 77 - 5000162098×2
  • 75000162099Not stocked
    Screw×2
  • 85000162100Price
    STUD - 5000162100×1
  • 95000071056Price
    NUT M6,HEX,FLANGE - 5000071056×1
