Wheel Loader

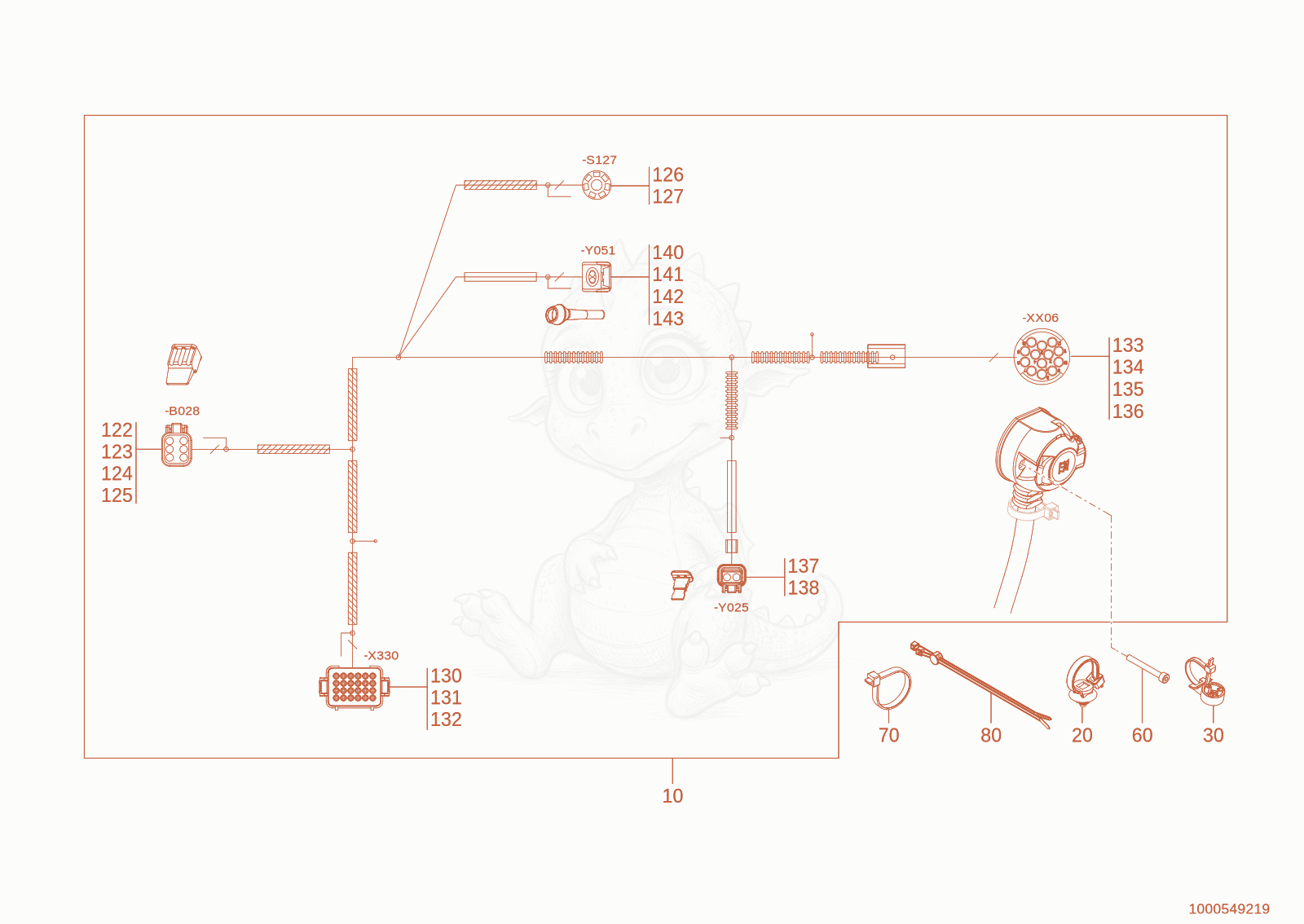

WLT1050(A06-04) Wiring harness lifting system Diagram
- 101000512163Not stockedwiring harness×1
- 201000375997Not stockedfixing bracket×1
- 301000374107Not stockedmounting×2
- 601000548153Not stockedcheese head screw×3
- cable strap - 1000193759×3
- 801000399434Not stockedmounting×13
- Plug - 1000161431×2
- bushing contact - 1000148274×4
- bushing housing - 1000183226×1
- LOCKING PIN - 1000183227×1
- Plug housing - 1000104430×1
- plug sleeve - 1000095370×2
- 1301000420699Not stockedbushing contact×3
- BUSHING CONTACT - 1000147471×17
- 1321000363132Not stockedbushing housing×1
- 1331000532749Not stockedTube×10
- 1341000532747Not stocked13pole Socket×1
- 1351000532750Not stockedTube×1
- 1361000532751Not stockedseal×1
- 1371000027442Not stockedwedge×1
- Plug Housing with cable - 1000483949×1
- 1401000334041Not stockedtimer contact×2
- seal - 1000246747×2
- Housing - 1000027410×1
- 1431000027466Not stockedprotecting cap×1
