WL950p

WL950P(A05-05) screw joint displacement pump Diagram

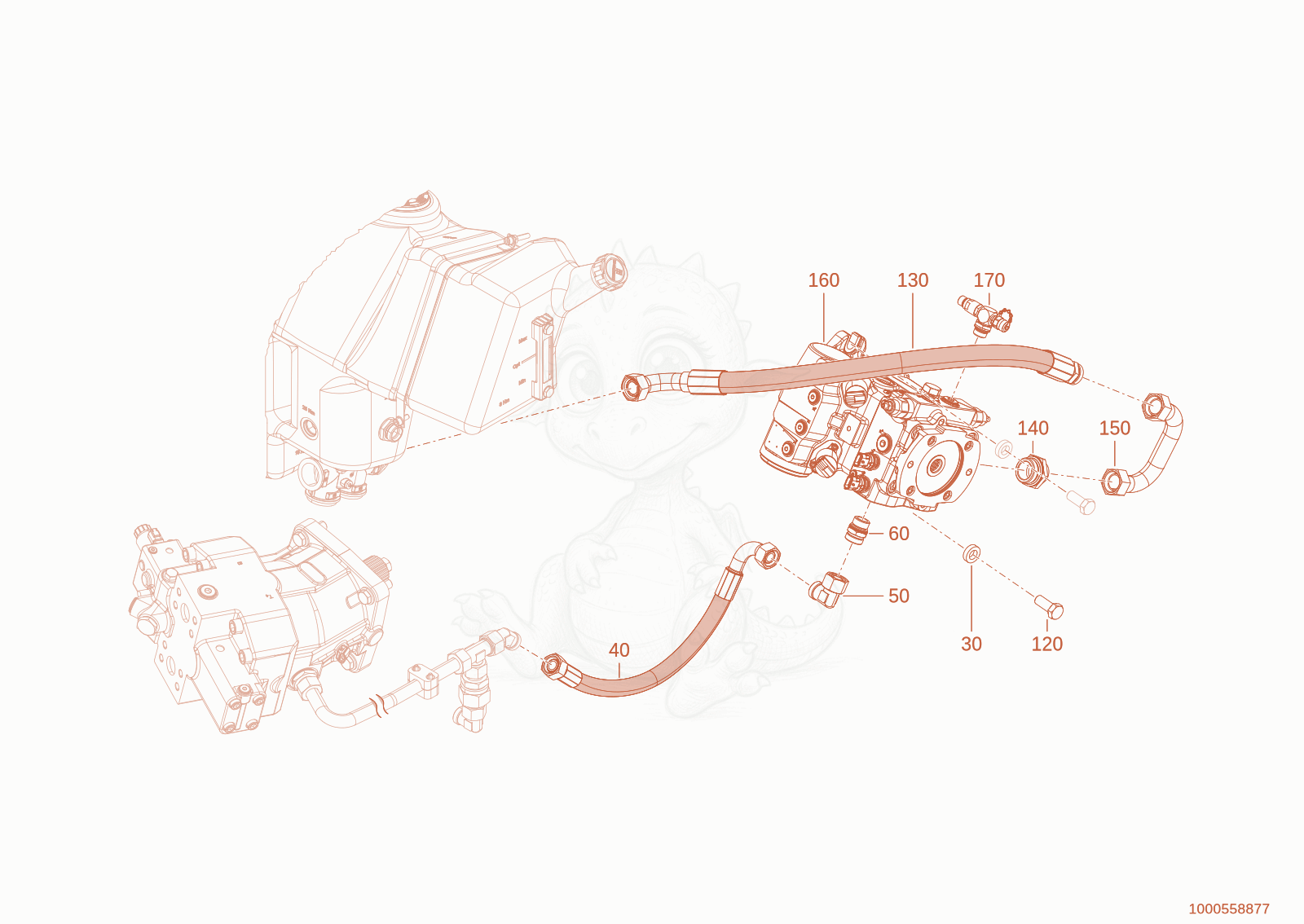

Exploded parts diagram of the screw joint displacement pump of a Wacker Neuson WL950P(A05-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 301000222612Price
    Washer - 1000222612×2
  • 401000449998Not stocked
    Hose×1
  • 501000020261Price
    EW22LOMD - 1000020261×1
  • 601000183818Price
    GE22LM27X2ORA3CX - 1000183818×1
  • 1201000433396Not stocked
    hex screw×2
  • 1301000543416Not stocked
    Hose×1
  • 1401000427974Price
    GEO28LM42X2OMDCF - 1000427974×1
  • 1501000542708Not stocked
    hydraulic pipe×1
  • 1601000540665Not stocked
    displacement pump×1
  • 1701000542943Not stocked
    control joint×1
