WL95

WL95(R90-02) Harness EAT console Diagram

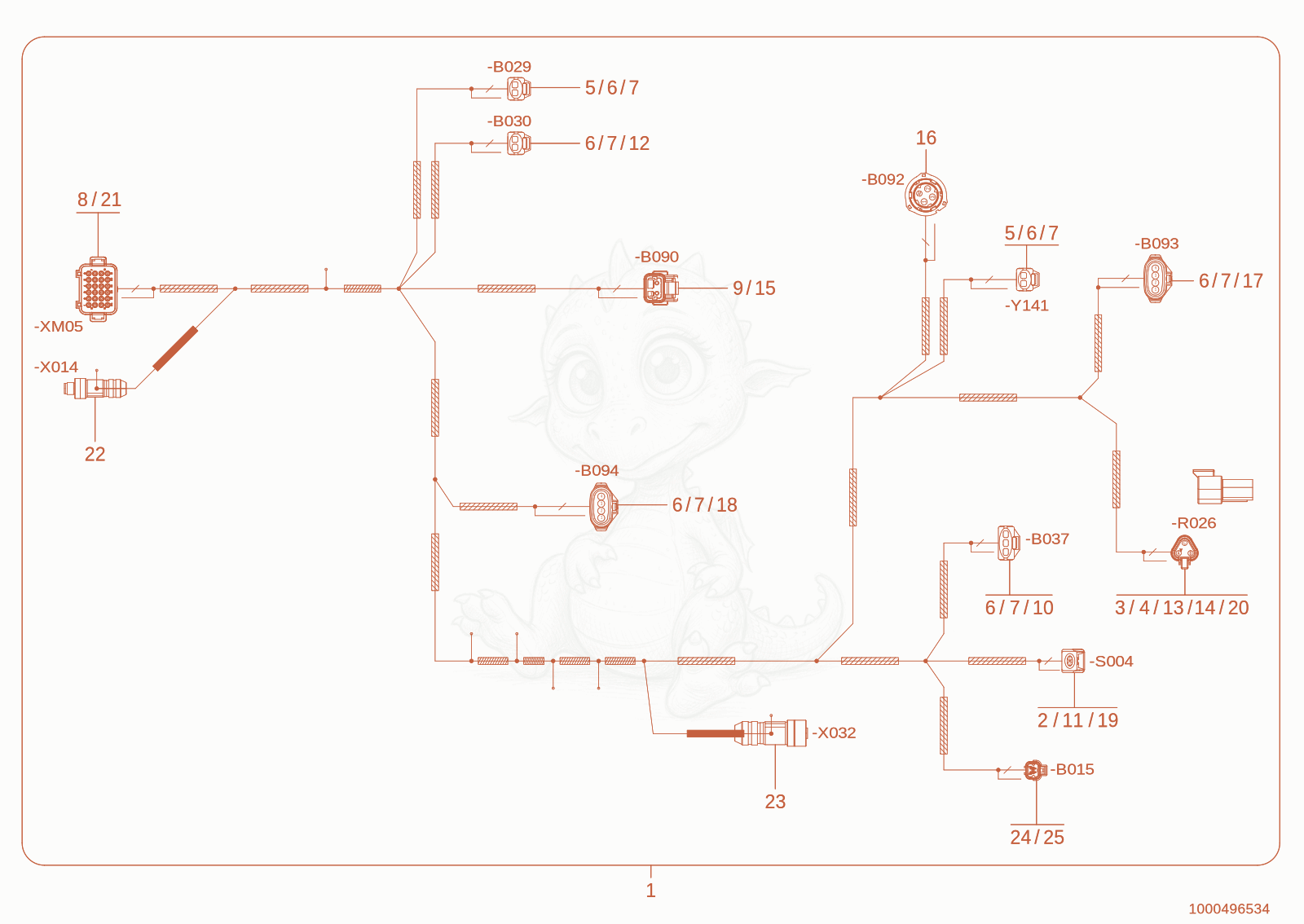

Exploded parts diagram of the Harness EAT console of a Wacker Neuson WL95(R90-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000494129Not stocked
    wiring harness×1
  • 21000027410Price
    Housing - 1000027410×1
  • 31000027429Not stocked
    housing×1
  • 41000030446Not stocked
    plug×1
  • 51000126125Price
    bushing housing - 1000126125×2
  • 61000126126Price
    Seal - 1000126126×17
  • 71000126127Price
    BUSHING CONTACT - 1000126127×17
  • 81000147472Price
    Pin contact - 1000147472×24
  • 91000148274Price
    bushing contact - 1000148274×2
  • 101000168235Price
    bushing housing - 1000168235×1
  • 111000246747Price
    seal - 1000246747×2
  • 121000260161Price
    bushing housing - 1000260161×1
  • 131000278564Price
    Resistor - 1000278564×1
  • 141000278858Price
    Key - 1000278858×1
  • 151000333855Not stocked
    bushing housing×1
  • 161000333856Price
    Plug - 1000333856×1
  • 171000333923Price
    Plug - 1000333923×1
  • 181000333924Price
    Plug - 1000333924×1
  • 191000334041Not stocked
    timer contact×2
  • 201000359612Not stocked
    plug connection×2
  • 211000363133Not stocked
    pin housing×1
  • 221000365480Not stocked
    pin housing×1
  • 231000365653Not stocked
    bushing housing×1
  • 241000380382Not stocked
    bushing contact×2
  • 251000380860Price
    CONTACT-HOUSING - 1000380860×1
