WL750p

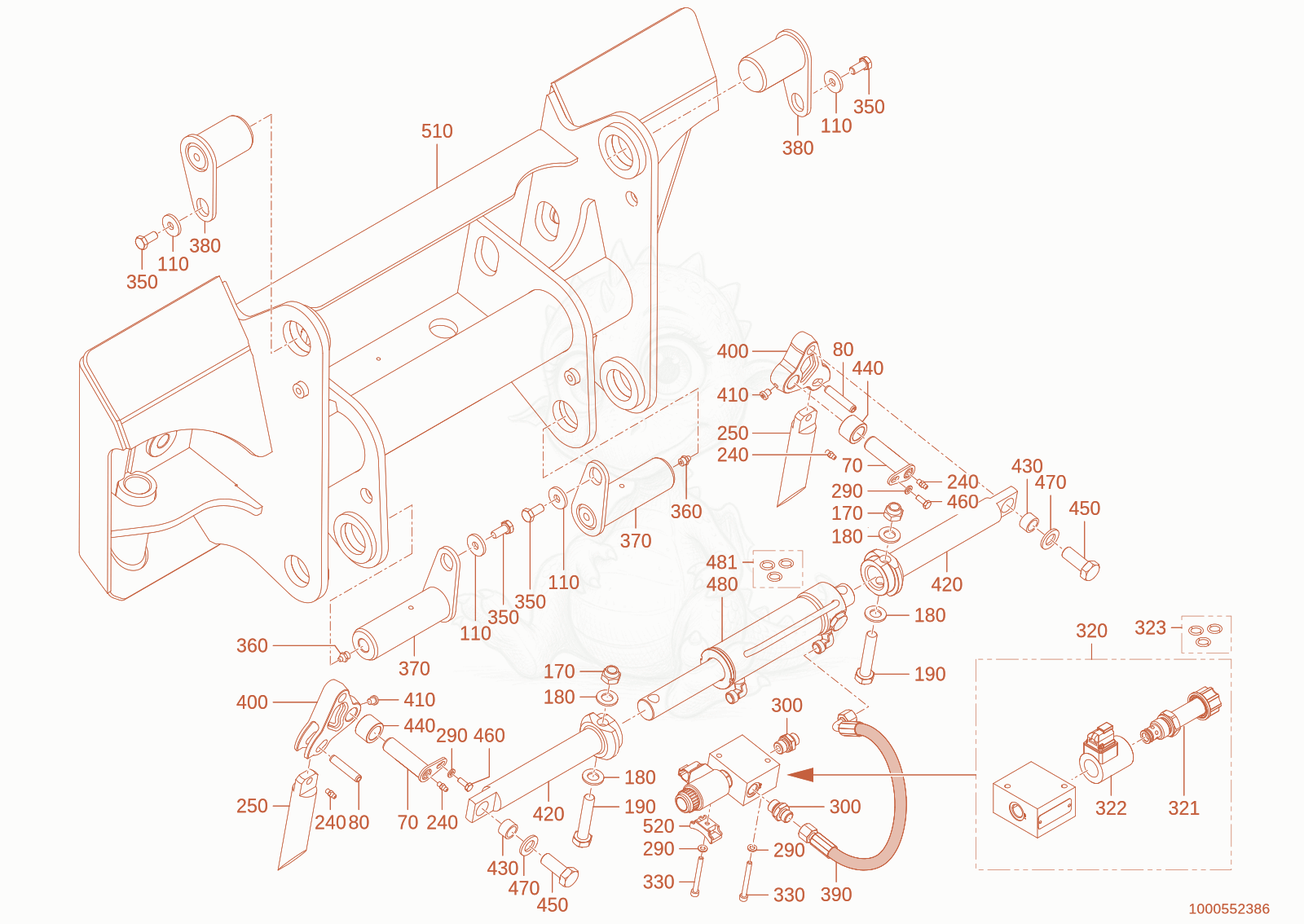

WL750P(A04-05) quickhitch plate Diagram
- Bolt - 1000372601×2
- cotter pin - 1000118414×2
- Washer - 1000222577×4
- 1701000049060Not stockedhexagon nut×2
- 1801000019126Not stockedu-washer×4
- 1901000047404Not stockedhex screw×2
- NIPPLE-GREASE - 1000222726×4
- Bolt - 1000224822×2
- 2901000015430Not stockedu-washer×4
- 3001000015491Not stockedscrew joint×2
- Valve - 1000335644×1
- drive valve - 1000265570×1
- Solenoid - 1000346390×1
- 3231000367370Not stockedseal kit valve cartridge×1
- cheese head screw M6x60-8.8 A2C - 1000085461×2
- SCREW - 1000223198×4
- grease nipple - 1000050469×2
- 3701000539084Not stockedpin×2
- 3801000550823Not stockedpin×2
- 3901000218143Not stockedHose×1
- 4001000546207Not stockedLEVER×2
- LOCK SCREW - 1000241240×2
- 4201000381586Not stockedlocking pin×2
- Sleeve - 1000262757×2
- Sleeve - 1000372610×2
- hex screw - 1000109786×2
- 4601000082237Not stockedhex screw×2
- WASHER - 1000021001×2
- Cylinder - 1000354340×1
- 4811000468985Not stockedcylinder seal kit×1
- 5101000550456Not stockedadapter frame×1
- sockets - 1000282739×1
