WL60

WL60T4F oil sump Diagram

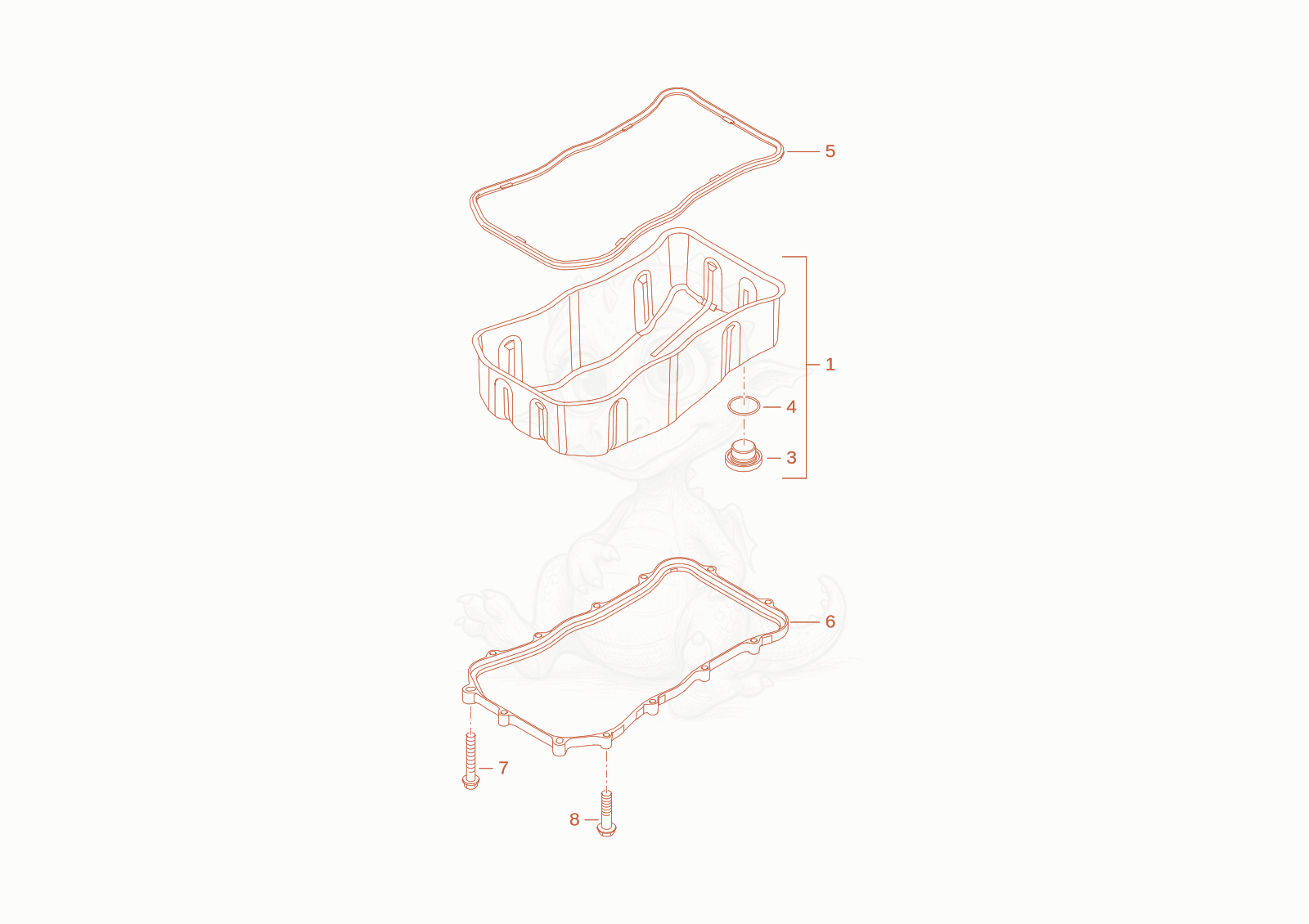

Exploded parts diagram of the oil sump of a Wacker Neuson WL60T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000310765Not stocked
    oil sump×1
  • 31000377730Price
    plug - 1000377730×1
  • 41000310766Not stocked
    seal ring×1
  • 51000310768Price
    Seal - 1000310768×1
  • 61000310802Price
    Seal - 1000310802×1
  • 71000139973Price
    screw - 1000139973×2
  • 81000087141Price
    Screw - 1000087141×11
