WL60

WL60STAGEV Tubing Diagram

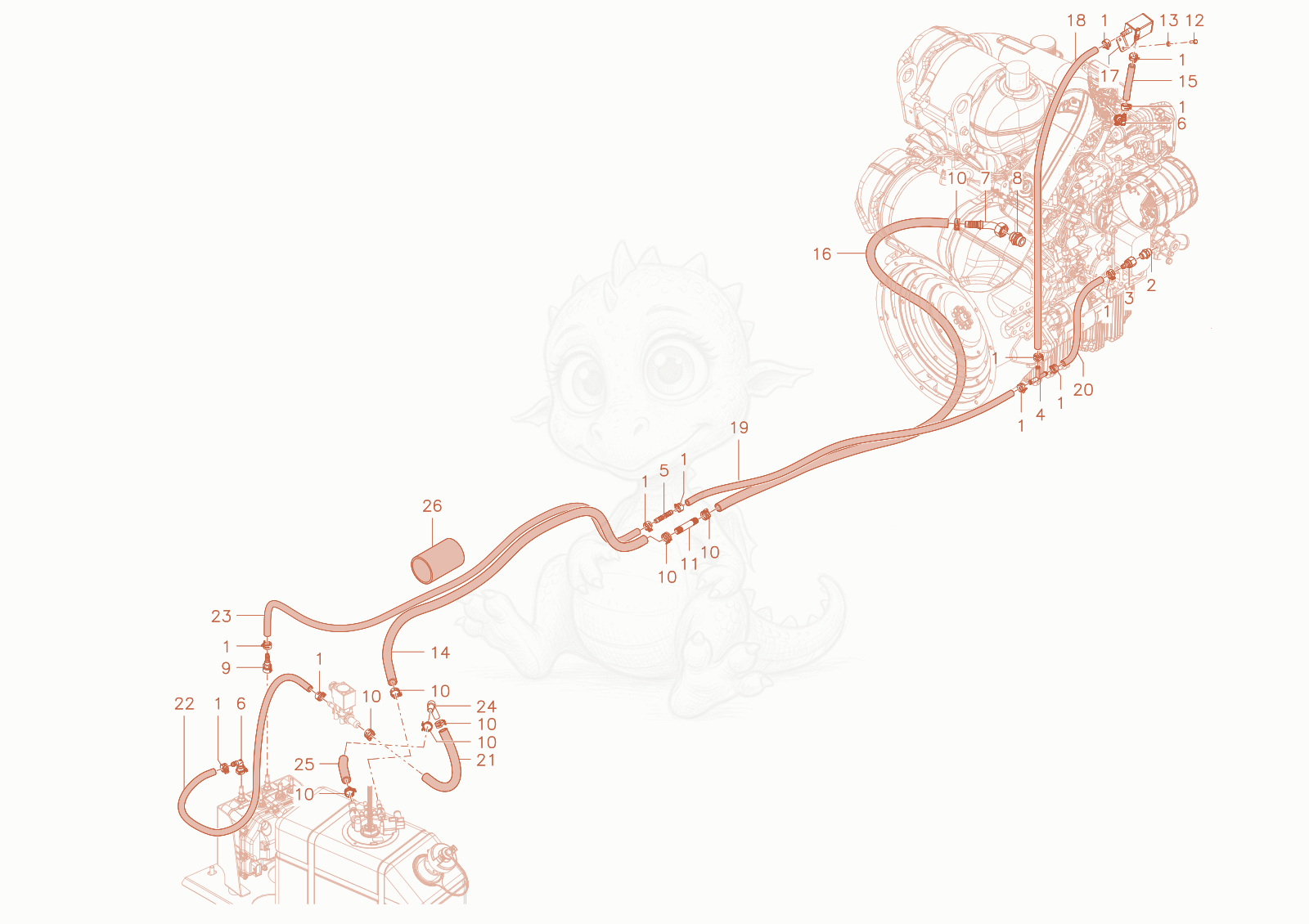

Exploded parts diagram of the Tubing of a Wacker Neuson WL60STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000392136Not stocked
    clamp×12
  • 21000028168Not stocked
    screw joint×1
  • 31000482793Not stocked
    screw joint×1
  • 41000461124Price
    Branch - 1000461124×1
  • 51000415428Not stocked
    NORMA 10mm Straight connector×1
  • 61000392098Not stocked
    plug×2
  • 71000171491Price
    hose fitting - 1000171491×1
  • 81000028327Not stocked
    screw joint×1
  • 91000328893Price
    Quickconnector - 1000328893×1
  • 101000392138Not stocked
    clamp×8
  • 111000376890Not stocked
    hose nipple×1
  • 121000018400Not stocked
    hex screw×2
  • 131000015430Not stocked
    u-washer×2
  • 141000222304Price
    WATER HOSE - 1000222304×1.245
  • 151000461111Not stocked
    water hose×0.13
  • 161000222304Price
    WATER HOSE - 1000222304×1.65
  • 171000473890Not stocked
    collect container×1
  • 181000461111Not stocked
    water hose×1
  • 191000461111Not stocked
    water hose×0.98
  • 201000461111Not stocked
    water hose×0.55
  • 211000222304Price
    WATER HOSE - 1000222304×0.32
  • 221000461111Not stocked
    water hose×0.62
  • 231000461111Not stocked
    water hose×1.54
  • 241000377681Not stocked
    hose nipple×1
  • 251000222304Price
    WATER HOSE - 1000222304×0.12
  • 261000216866Price
    PROTECTING HOSE - 1000216866×0.12
