Articulated wheel loader WL44

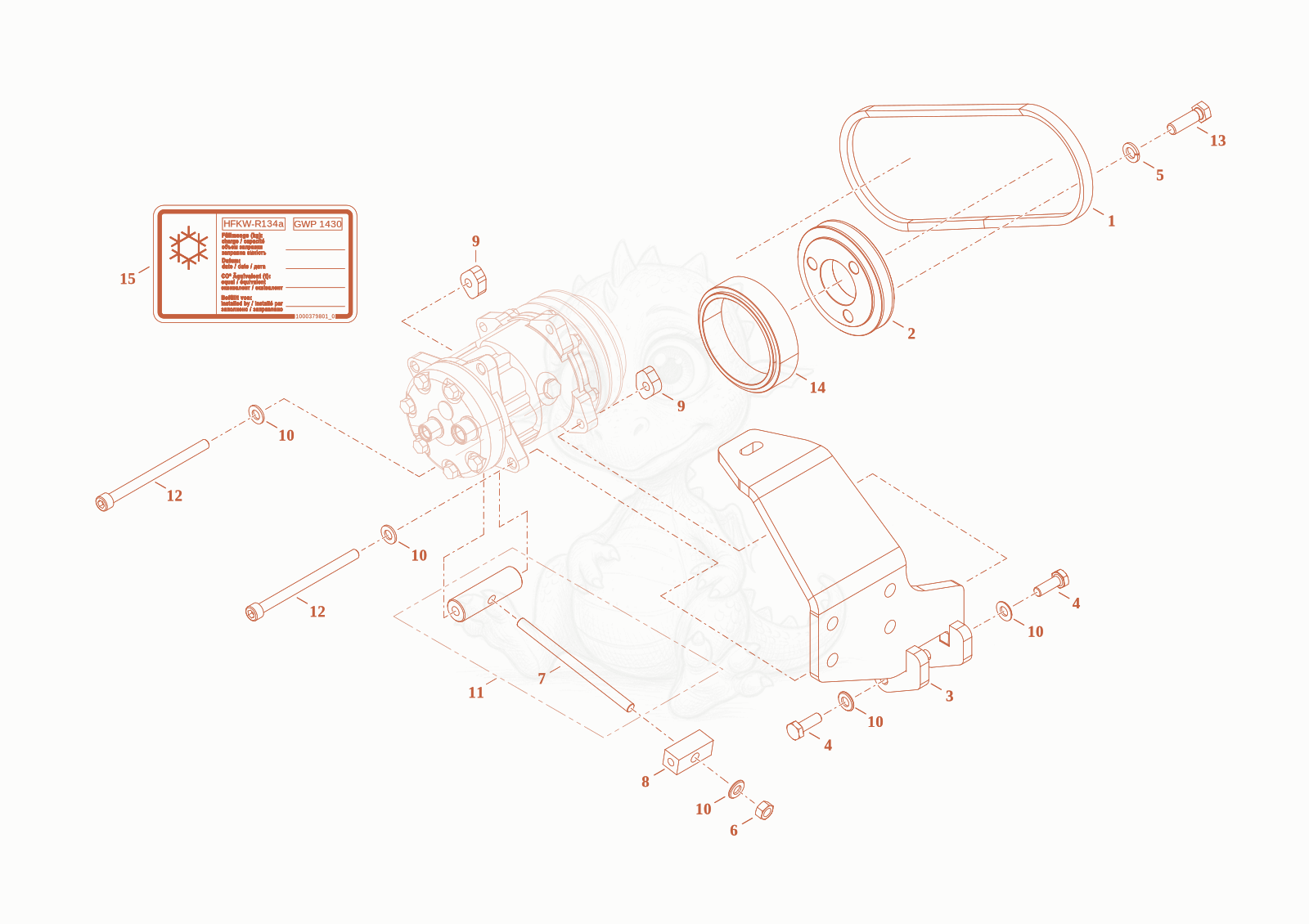

WL44 compressor aircondition Diagram
- 11000329792Not stockedv-belt×1
- belt pulley - 1000211031×1
- Bracket - 1000378907×1
- 41000015364Not stockedhex screw×2
- 51000022017Not stockedspring washer×3
- 61000015407Not stockedhexagon nut×1
- 71000308474Not stockedthread rod×1
- thread plate - 1000295118×1
- Plate - 1000179163×2
- washer 10,5 A2C DIN125 - 1000015432×5
- 111000378903Not stockedconnection sleeve×1
- cheese head screw - 1000131405×2
- 131000047392Not stockedhex screw×3
- shim - 1000354415×1
- 151000379801Not stockedrefrigerant sticker×1
