Articulated wheel loader WL44

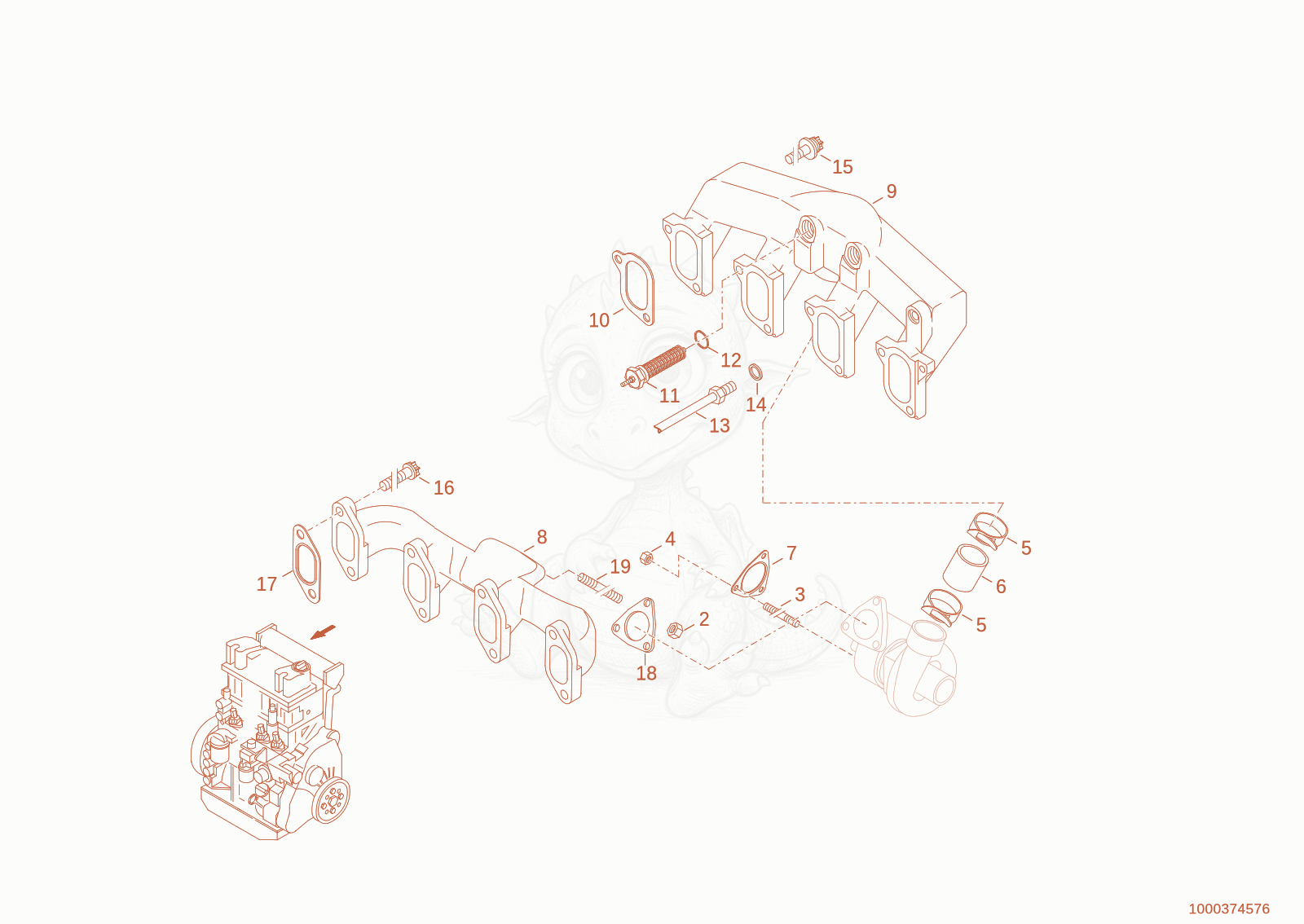

WL44 turbo charger Diagram
- HEXAGON NUT - 1000108926×3
- stud - 1000086430×3
- HEXAGON NUT - 1000108925×3
- Clamp - 1000086722×2
- RUBBER SLEEVE - 1000108957×1
- Seal - 1000086768×1
- Exhaustmanifold 1000086766×1
- Suctionpipe 1000183296×1
- Seal - 1000087714×4
- Glow plug - 1000108967×1
- SEAL RING - 1000108917×1
- HOSE - 1000109035×1
- Seal ring - 1000152442×1
- TORX SCREW - 1000131352×8
- torx screw - 1000089375×3
- Seal - 1000086428×4
- Seal - 1000086431×1
- Bolt - 1000329138×3
