WL36 LP

WL36CANOPY wiring harness Diagram

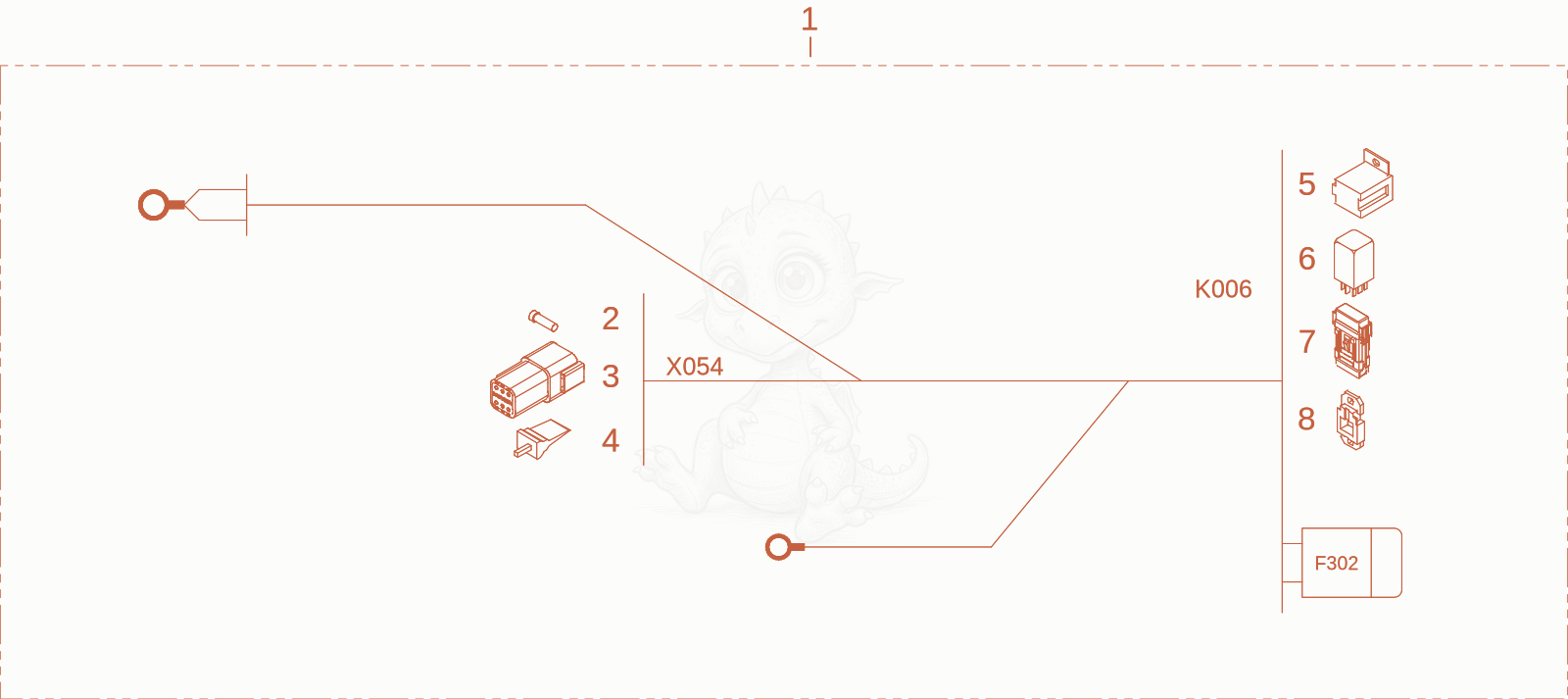

Exploded parts diagram of the wiring harness of a Wacker Neuson WL36CANOPY, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000250233Price
    wiring harness - 1000250233×1
  • 21000030446Not stocked
    plug×2
  • 31000229839Price
    HOUSING-PLUG - 1000229839×1
  • 41000229835Not stocked
    locking×1
  • 51000207057Price
    bracket relay - 1000207057×1
  • 61000271612Price
    preheating relay - 1000271612×1
  • 71000155563Price
    fuse holder - 1000155563×1
  • 81000203519Price
    fuse holder - 1000203519×1
