WL28e

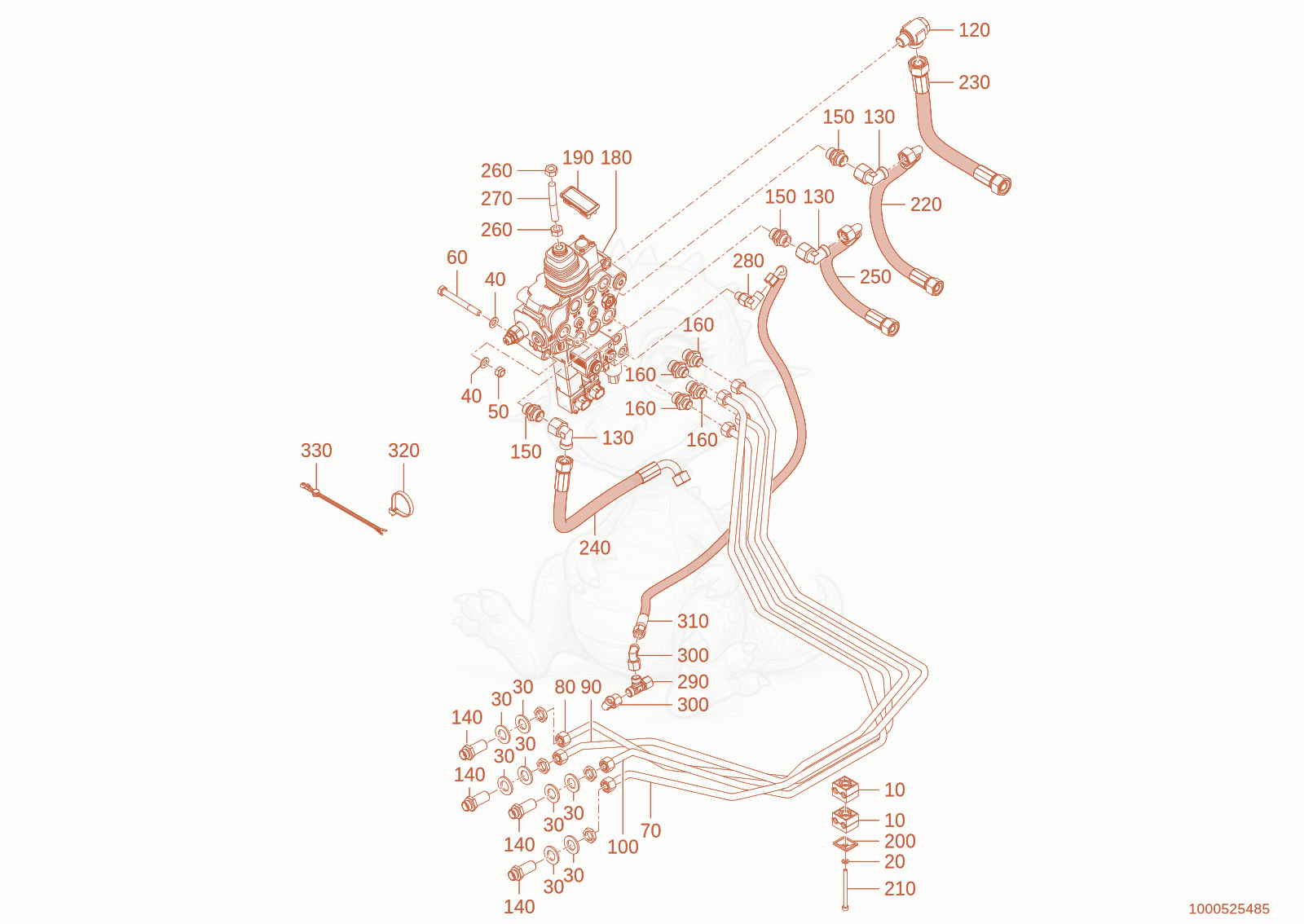

WL28E(A10-01) electrical control circuit Diagram
- 101000031460Not stockedclamp×2
- 201000015430Not stockedu-washer×1
- washer 19 - 1000082625×8
- washer 10,5 A2C DIN125 - 1000015432×6
- nut M10-8 A2C-DIN985 - 1000015408×3
- 601000047265Not stockedhex screw×3
- 701000499549Not stockedhydraulic pipe×1
- 711000543583Not stockedolive×1
- 721000543590Not stockedseal ring×1
- 731000543595Not stockedo-ring×1
- 801000499544Not stockedhydraulic pipe×1
- 811000543583Not stockedolive×1
- 821000543590Not stockedseal ring×1
- 831000543595Not stockedo-ring×1
- 901000499546Not stockedhydraulic pipe×1
- 911000543583Not stockedolive×1
- 921000543590Not stockedseal ring×1
- 931000543595Not stockedo-ring×1
- 1001000499548Not stockedhydraulic pipe×1
- 1011000543583Not stockedolive×1
- 1021000543590Not stockedseal ring×1
- 1031000543595Not stockedo-ring×1
- 1201000028322Not stockedscrew joint×1
- 1301000015512Not stockedscrew joint×3
- SV12-LA3C - 1000028480×4
- 1501000015494Not stockedscrew joint×3
- 1601000015493Not stockedscrew joint×4
- 1801000446005Not stockedcontrol valve×1
- cover - 1000436984×1
- 2001000031211Not stockedcover plate×1
- 2101000085492Not stockedcheese head screw×1
- 2201000500182Not stockedHose×1
- 2301000500179Not stockedHose×1
- 2401000481589Not stockedHose×1
- 2501000481590Not stockedHose×1
- 2601000049000Not stockedhexagon nut×2
- 2701000434295Not stockedthread rod×1
- EWE10LR 1/4 - 1000146696×1
- EL10LOMD - 1000417279×1
- 3001000015510Not stockedscrew joint×2
- 3101000456113Not stockedHose×1
- cable strap - 1000193759×3
- 3301000399434Not stockedmounting×1
