Wheel Loader

WL16 front axle Diagram

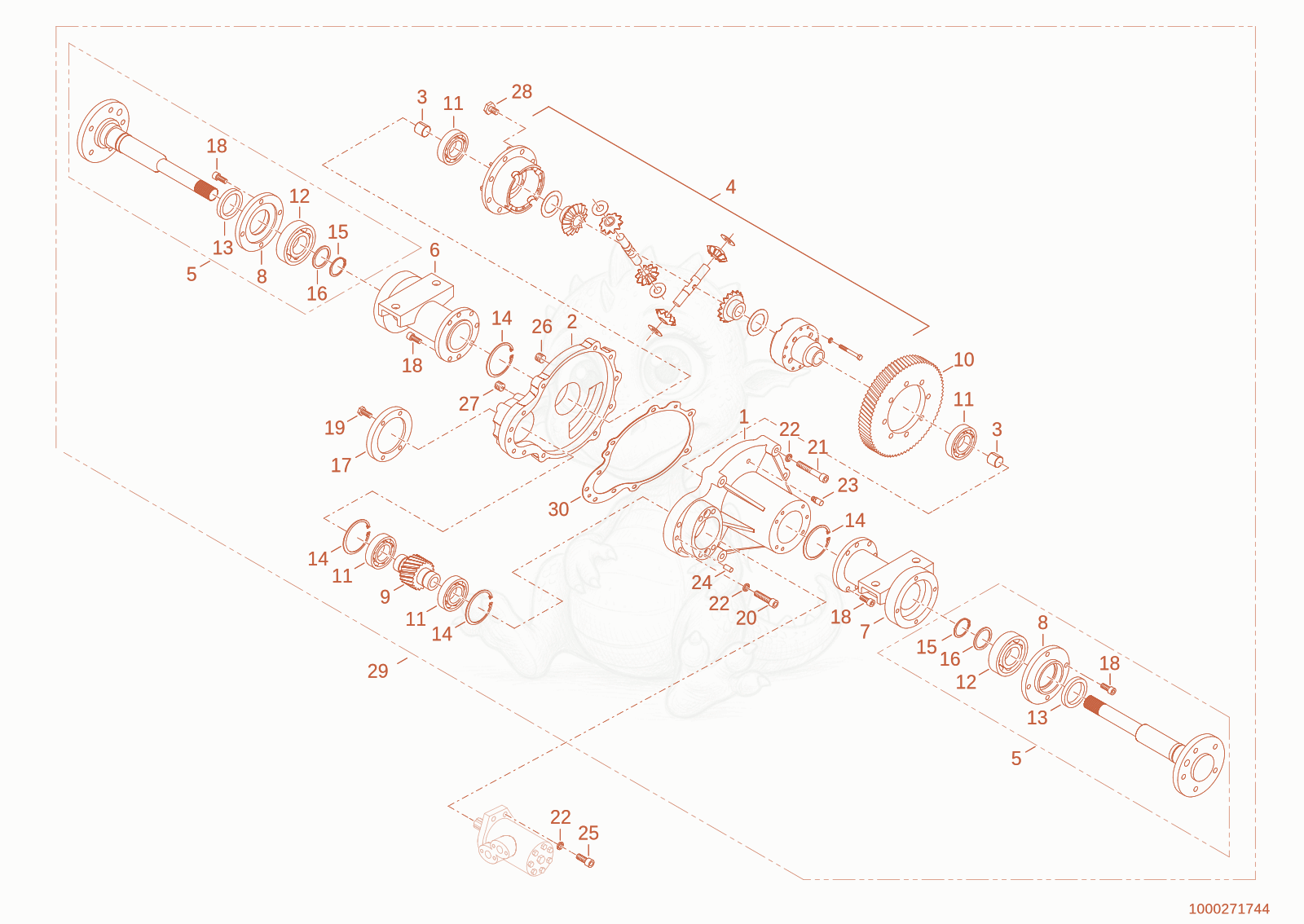

Exploded parts diagram of the front axle of a Wacker Neuson WL16, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000192584Price
    Differentialhousing 1000192584×1
  • 21000192585Price
    Boxcover 1000192585×1
  • 31000224995Price
    slide bearing - 1000224995×1
  • 41000192476Price
    Differentialhousing 1000192476×1
  • 51000321754Not stocked
    tooth shaft×2
  • 61000192652Price
    Axlepipe 1000192652×1
  • 71000192473Price
    Axlepipe 1000192473×1
  • 81000192475Price
    Cover 1000192475×2
  • 91000192469Price
    gear shaft - 1000192469×1
  • 101000192472Price
    Gear 1000192472×1
  • 111000224986Price
    BALL BEARING - 1000224986×4
  • 121000224987Price
    ball bearing - 1000224987×2
  • 131000224899Price
    shaft seal - 1000224899×2
  • 141000015474Not stocked
    lock ring×4
  • 151000021348Not stocked
    lock ring×2
  • 161000079454Not stocked
    fitting disc×2
  • 171000192586Price
    Cover - 1000192586×1
  • 171000224983Price
    SEAL KIT COVER - 1000224983×1
  • 181000015376Not stocked
    cheese head screw×14
  • 191000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
  • 201000048191Not stocked
    cheese head screw×3
  • 211000048193Not stocked
    cheese head screw×7
  • 221000022017Not stocked
    spring washer×6
  • 231000198691Price
    Valve - 1000198691×1
  • 241000223463Price
    GROOVED PIN - 1000223463×1
  • 251000328014Not stocked
    cheese head screw×4
  • 261000222717Price
    SCREW-LOCK - 1000222717×1
  • 271000222718Price
    lock screw - 1000222718×1
  • 281000048060Not stocked
    hex screw×8
  • 291000323081Not stocked
    axle×1
  • 301000391851Price
    Gasket - 1000391851×1
