WL1150

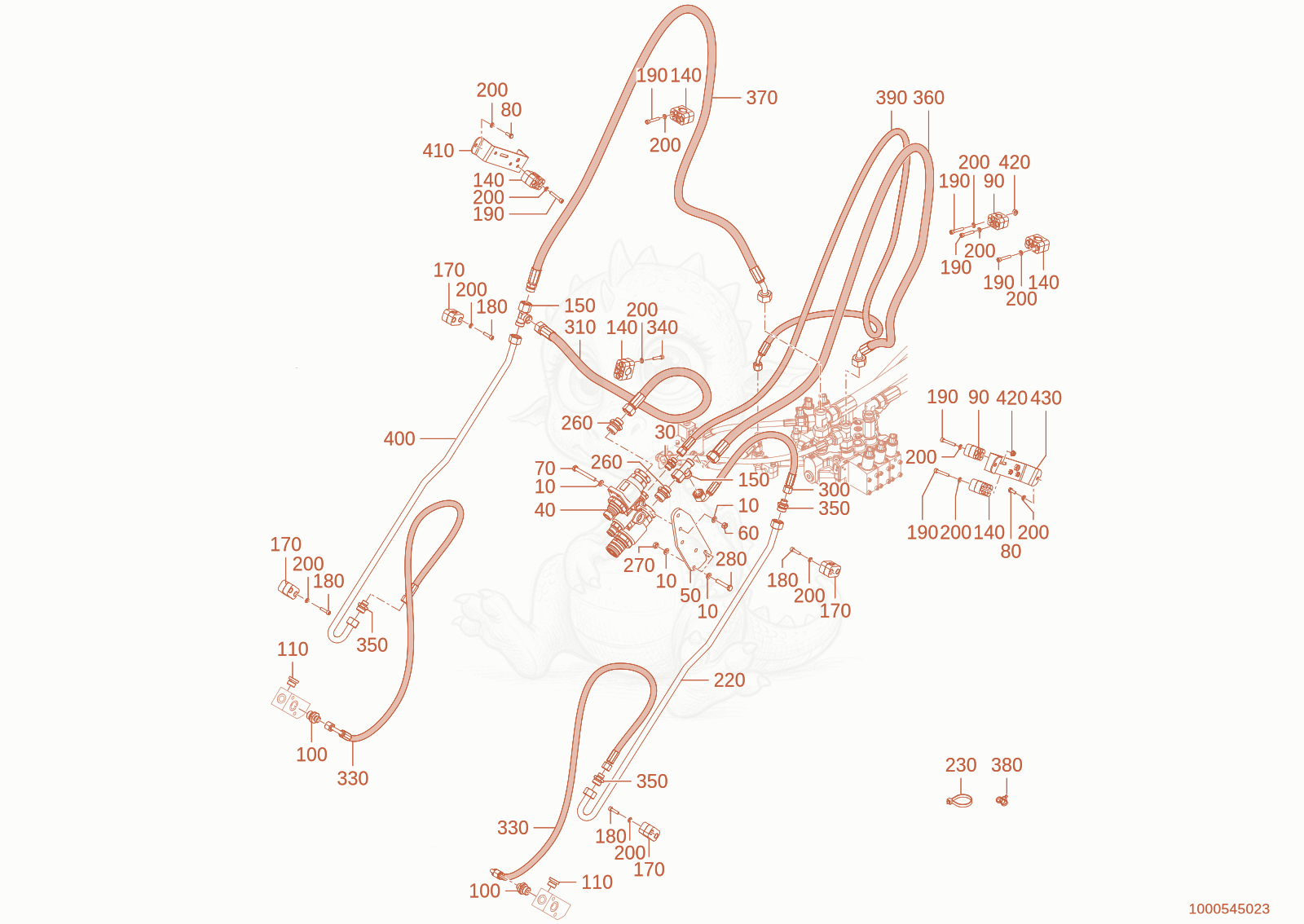

WL1150(A06-01) working hydraulic Diagram
- 101000015431Not stockedwasher×8
- 301000015491Not stockedscrew joint×1
- Quicklockcoupling 1000270048×1
- Bracket - 1000311833×1
- 601000013022Not stockedhexagon nut×2
- 701000022334Not stockedhex screw×2
- 801000082237Not stockedhex screw×4
- 901000416645Not stockedclamp×2
- GE10LR1/2"EDOMDA3C - 1000106888×2
- 1101000030660Not stockedlock plug×2
- 1401000416647Not stockedclamp×6
- 1501000015539Not stockedscrew joint×2
- CLAMP SHOE - 1000222581×4
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×8
- Screw M6x40-8.8 A2C DIN912 - 1000085458×12
- 2001000015430Not stockedu-washer×28
- 2201000526484Not stockedhydraulic pipe×1
- 2211000050505Not stockedunion nut×1
- 2221000543584Not stockedolive×1
- 2231000543591Not stockedseal ring×1
- 2241000543596Not stockedo-ring×1
- cable strap - 1000193759×3
- GE15LR3/4EDOMDA3C - 1000085074×2
- 2701000013021Not stockedhexagon nut×2
- 2801000015370Not stockedhex screw×2
- 3001000535547Not stockedHose×1
- 3101000432354Not stockedHose×1
- 3301000513189Not stockedHose×2
- 3401000015369Not stockedcheese head screw×4
- 3501000157122Not stockedGR15/10LA3CX×3
- 3601000535981Not stockedHose×1
- 3701000535820Not stockedHose×1
- 3801000399434Not stockedmounting×2
- 3901000509745Not stockedHose×1
- 4001000526485Not stockedhydraulic pipe×1
- 4011000050505Not stockedunion nut×1
- 4021000543584Not stockedolive×1
- 4031000543591Not stockedseal ring×1
- 4041000543596Not stockedo-ring×1
- 4101000543966Not stockedbracket hose×1
- LODGING NUT - 1000253008×2
- 4301000543967Not stockedbracket hose×1
