WL110

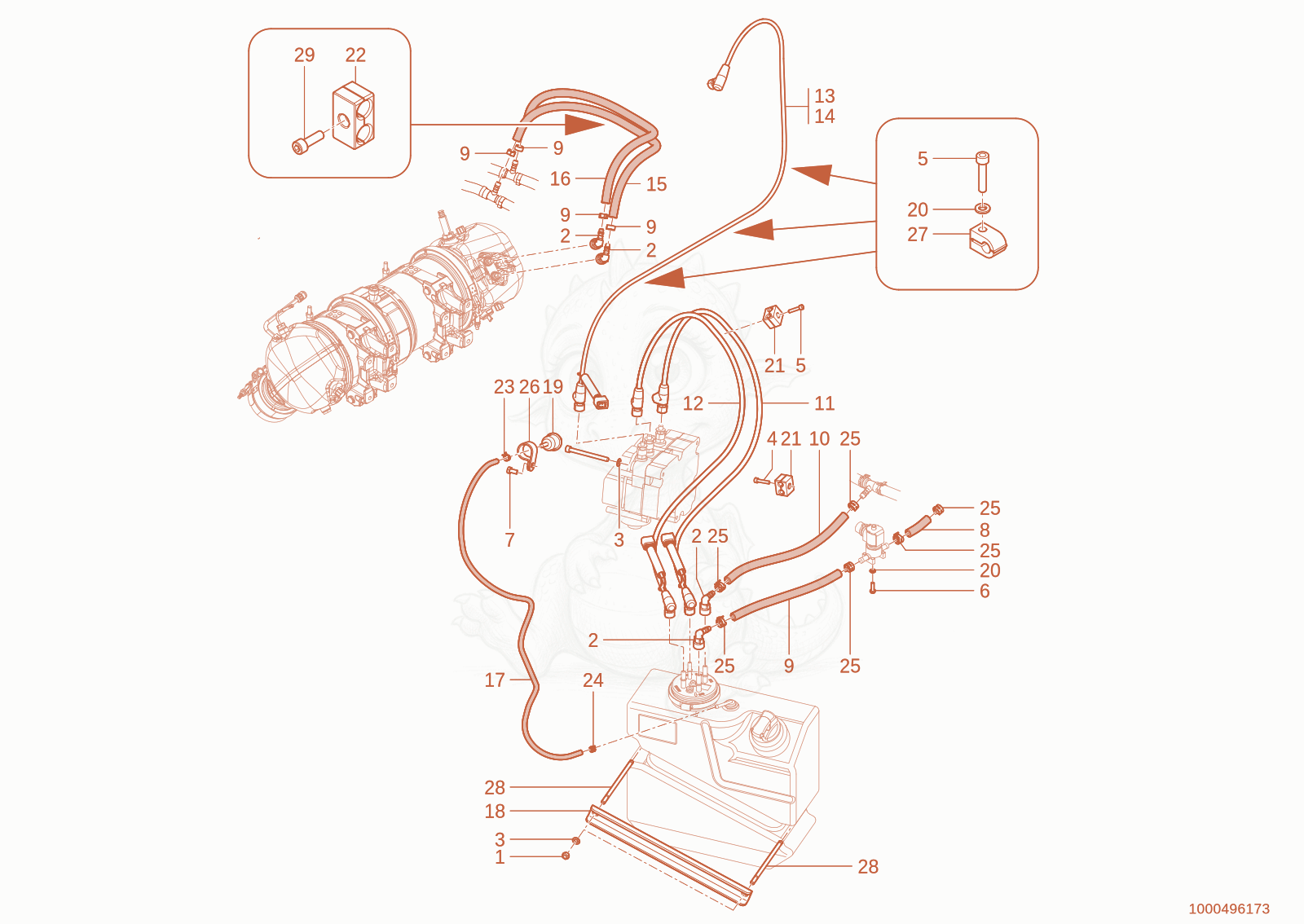

WL110(R90-05) nutrients Diagram
- 11000013022Not stockedhexagon nut×2
- 21000338935Not stockedconnection piece×4
- 31000015431Not stockedwasher×2
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
- 51000015369Not stockedcheese head screw×5
- 61000018400Not stockedhex screw×4
- 71000019136Not stockedhex screw×1
- 81000331219Not stockedheater hose×0.08
- 91000331219Not stockedheater hose×0.3
- 101000331219Not stockedheater hose×0.39
- 111000400510Not stockedhose×1
- 121000400511Not stockedhose×1
- 131000479677Not stockedinjection line×1
- SCR Pipe line - 1000479676×1
- 151000331219Not stockedheater hose×0.8
- 161000331219Not stockedheater hose×0.77
- Hose - 1000161484×1.077
- Strip - 1000367248×1
- 191000000412Not stockedfuel filter×1
- WASHER - 1000092290×8
- CLAMP - 1000052647×2
- CLAMP - 1000031626×1
- Clamp 9,5/7 - 1000290073×1
- clamp - 1000315550×1
- 251000282350Not stockedclamp×10
- CLAMP - 1000031926×1
- 271000100561Not stockedclamp×4
- STUD - 1000374144×2
- 291000022386Not stockedcheese head screw×1
