VP1340W-LL VIBROPLATE

VP1340W-LL Governor Lever Diagram

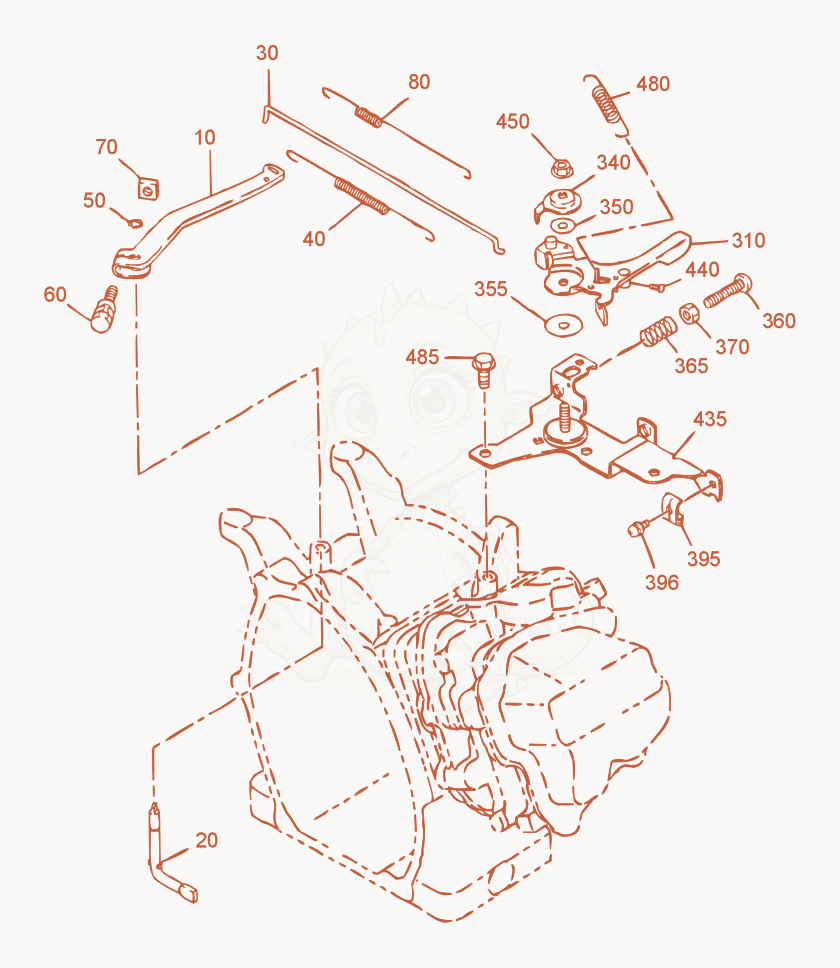

Exploded parts diagram of the Governor Lever of a Wacker Neuson VP1340W-LL, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000156504Not stocked
    Governor lever×1
  • 205000156505Not stocked
    Governor shaft×1
  • 305000156506Price
    ROD-GOVERNOR - 5000156506×1
  • 405000156507Price
    SPRING-ROD - 5000156507×1
  • 505000156106Price
    CLIP - 5000156106×1
  • 605000156508Not stocked
    Bolt with Washer×1
  • 705000156108Price
    nut - 5000156108×1
  • 805000156509Not stocked
    Spring-governor×1
  • 3105000156510Not stocked
    Control lever×1
  • 3405000156511Not stocked
    Stop Plate×1
  • 3505000156512Not stocked
    Washer×1
  • 3555000156513Price
    WASHER-FRICTION - 5000156513×1
  • 3605000156514Price
    screw - 5000156514×1
  • 3655000156515Price
    SPRING-ADJUSTER - 5000156515×1
  • 3705000151186Price
    Nut - 5000151186×1
  • 3955000156516Price
    clamp - 5000156516×1
  • 3965000156517Price
    SCREW W/WASHER - 5000156517×1
  • 4355000156518Price
    BRACKET-SPEED - 5000156518×1
  • 4405000156519Not stocked
    Screw×1
  • 4505000156520Not stocked
    Locknut×1
  • 4805000156521Price
    SPRING-RETURN - 5000156521×1
  • 4855000156645Price
    BOLT-FLANGE - 5000156645×2
