VP1135AWSingle Direction Vibratory Plate

VP1135AWUS Vibration Plate Diagram

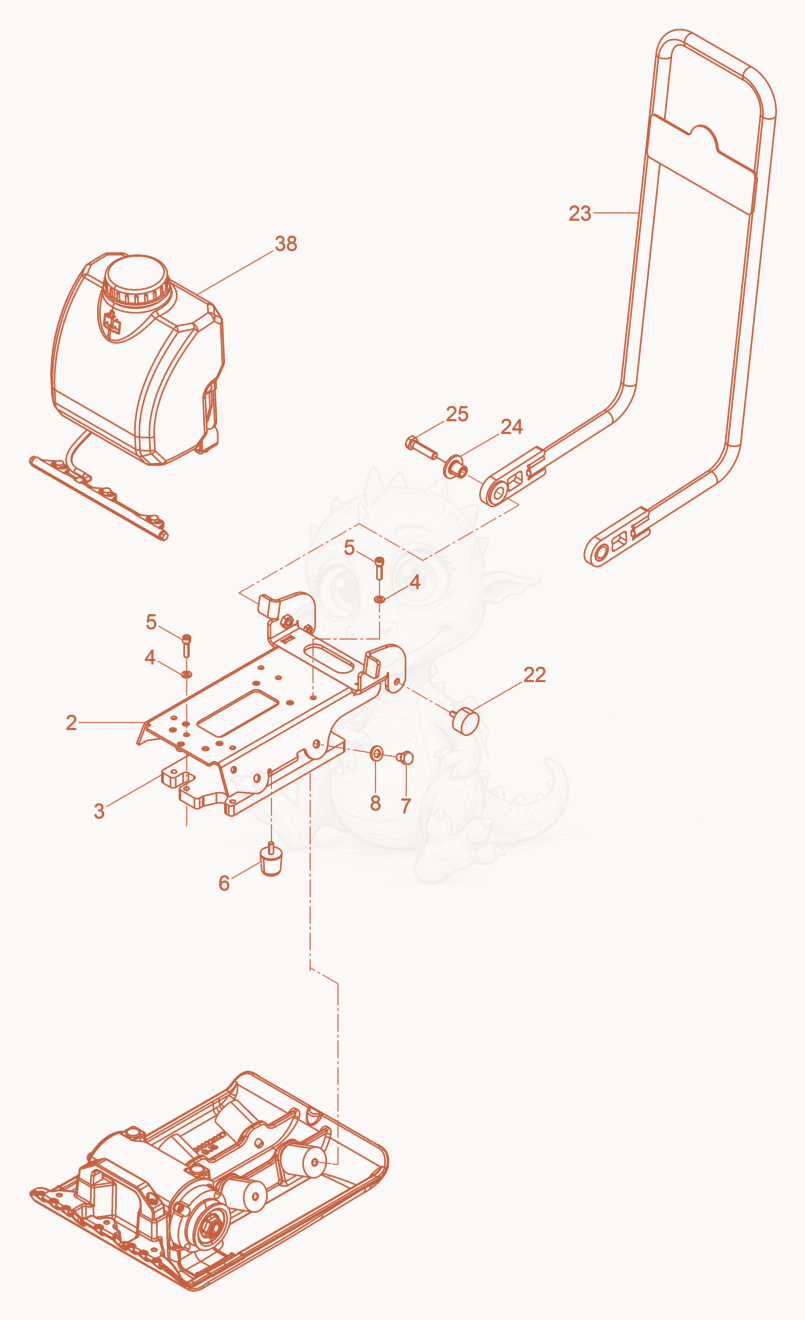

Exploded parts diagram of the Vibration Plate of a Wacker Neuson VP1135AWUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100018401Price
    Upper Mass - 5100018401×1
  • 35100026132Price
    Plate - 5100026132×1
  • 45000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×6
  • 55000011541Not stocked
    Cheese head screw×6
  • 65100016327Price
    Shockmount 35 x 40 - 5100016327×1
  • 75000021465Price
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×4
  • 85000014316Price
    SCREW M12 X 16 HX.HD. - 5000014316×4
  • 225100017108Price
    Shockmount 40x20 - 5100017108×2
  • 235100018421Price
    Shackle cpl. - 5100018421×1
  • 245100018340Price
    Bush - 5100018340×2
  • 255000220523Price
    SCREW M12 X 50 HX.HD. - 5000220523×2
  • 385100025545Not stocked
    Spinkler System cpl.×1
