VP1035R-VIBROPLATE

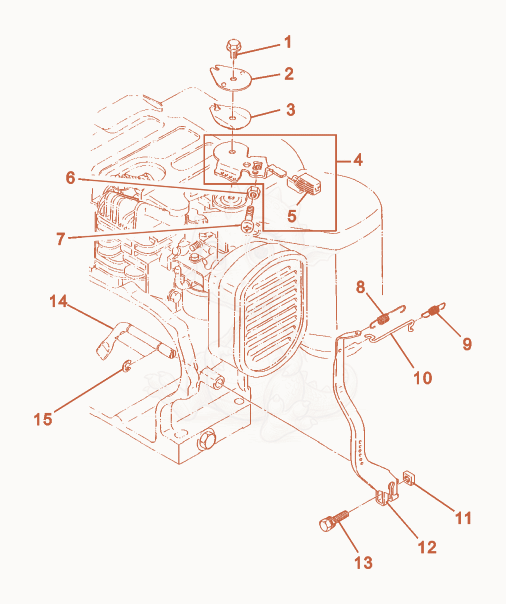

VP1035R Governor Diagram
- SCREW M6 X 14,HEX.FLANGE - 5000053648×1
- 25000053647Not stockedPlate×1
- WASHER-LOCK - 5000053646×1
- 45000053643Not stockedGovernor Control Lever Set×1
- 55000053645Not stockedKnob×1
- NUT M6,HEX - 5000053650×1
- SCREW M6 X 30,PAN.HD. - 5000053649×1
- 85000115753Not stockedGovernor spring×1
- SPRING-GOVERNOR CONTROL ROD - 5000053641×1
- 105000053640Not stockedGovernor rod×1
- 115000077396Not stockedNut×1
- 125000053635Not stockedGovernor lever×1
- 135000077397Not stockedScrew w/washer×1
- 145000053638Not stockedGovernor shaft×1
- RET.RING-EXT 6MM,E-TYP - 5000053639×2
