VP1030R-VIBROPLATE

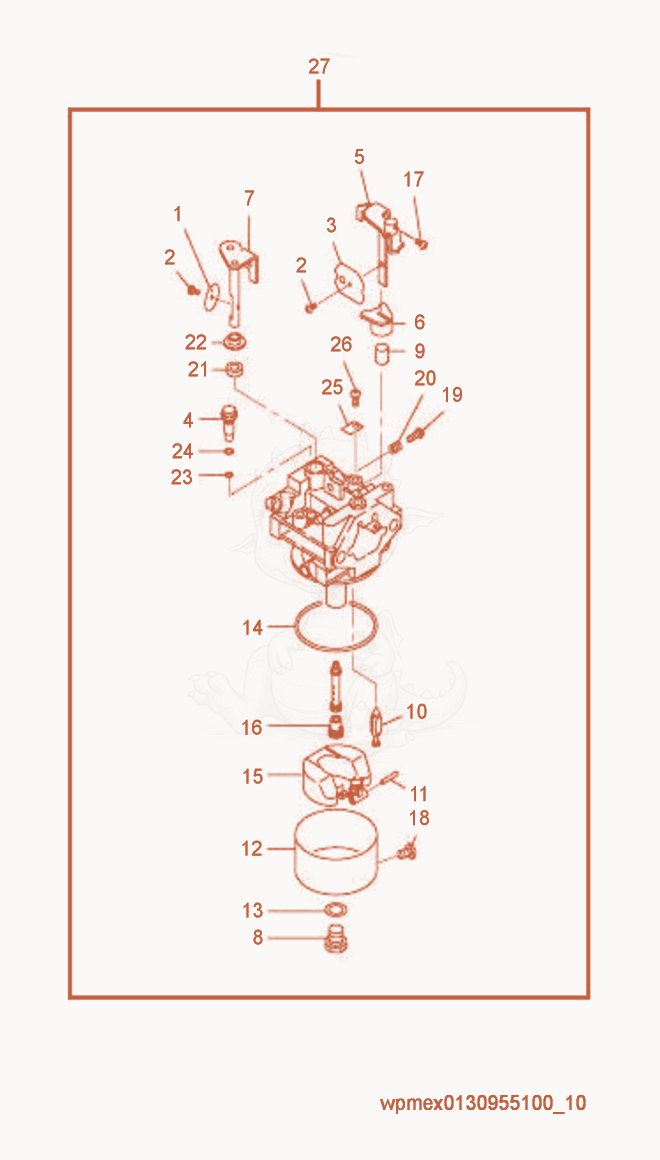

VP1030R Carburetor Diagram

Exploded parts diagram of the Carburetor of a Wacker Neuson VP1030R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000216787Not stocked
    Throttle valve×1
  • 25000216780Price
    Screw - 5000216780×2
  • 35000216785Not stocked
    Choke valve×1
  • 45000216777Not stocked
    Jet×1
  • 55000216784Not stocked
    Choke lever×1
  • 65000216745Not stocked
    Choke shaft×1
  • 75000216786Not stocked
    Choke shaft cpl.×1
  • 85000216775Not stocked
    Bolt w/washer×1
  • 95000216746Not stocked
    Choke shaft×1
  • 105000205500Price
    VALVE-NEEDLE - 5000205500×1
  • 115000216783Not stocked
    Pin×1
  • 125000216789Not stocked
    Float Chamber Set×1
  • 135000156629Price
    GASKET - 5000156629×1
  • 145000216788Price
    Gasket - 5000216788×1
  • 155000216782Not stocked
    Float cpl.×1
  • 165000216776Price
    JET-MAIN - 5000216776×1
  • 175000216781Not stocked
    Screw×1
  • 185000216742Not stocked
    Screw×1
  • 195000216744Not stocked
    Adjustment screw×1
  • 205000156623Not stocked
    Spring×2
  • 215000216741Not stocked
    Bushing×1
  • 225000216790Not stocked
    Collar×1
  • 235000216778Not stocked
    O-Ring×1
  • 245000216779Price
    O-Ring - 5000216779×1
  • 255000216791Not stocked
    Plate×1
  • 265000216781Not stocked
    Screw×1
  • 275000216774Not stocked
    Carburetor cpl.×1
