Telehandlers

TH955(416-16) Trailer coupling Diagram

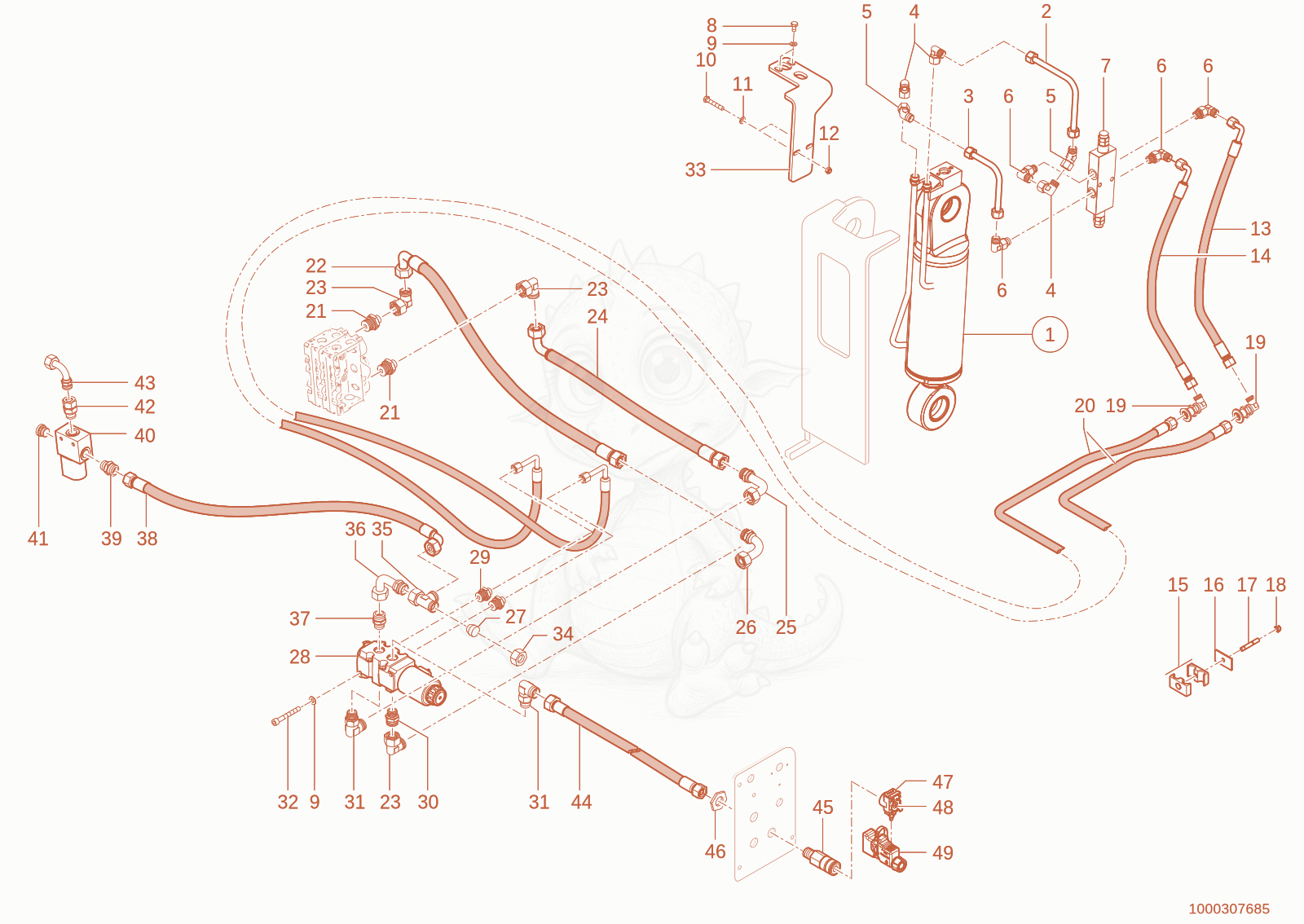

Exploded parts diagram of the Trailer coupling of a Wacker Neuson TH955(416-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000296772Not stocked
    Level cylinder×1
  • 21000304329Not stocked
    pipe line×1
  • 31000304330Not stocked
    pipe line×1
  • 41000000573Not stocked
    screw joint×3
  • 51000170681Price
    EW 12 L 45° - 1000170681×2
  • 61000028506Not stocked
    screw joint×4
  • 71000296773Not stocked
    valve×1
  • 81000019136Not stocked
    hex screw×2
  • 91000095341Price
    WASHER - 1000095341×4
  • 101000015341Not stocked
    hex screw×2
  • 111000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 121000049283Not stocked
    bearing disc×2
  • 131000149623Not stocked
    Hose×1
  • 141000289221Not stocked
    Hose×1
  • 151000031626Price
    CLAMP - 1000031626×1
  • 161000031230Not stocked
    cover plate×1
  • 171000048892Not stocked
    stud×2
  • 181000013022Not stocked
    hexagon nut×2
  • 191000021041Not stocked
    screw joint×2
  • 201000299727Not stocked
    Hose×2
  • 211000015565Not stocked
    screw joint×2
  • 221000302312Not stocked
    Hose×1
  • 231000015513Not stocked
    screw joint×3
  • 241000302313Not stocked
    Hose×1
  • 251000168252Price
    CONNECTION PIECE - 1000168252×1
  • 261000147641Price
    CONNECTION PIECE - 1000147641×1
  • 271000028206Not stocked
    lock piece×1
  • 281000146528Price
    Valve 1000146528×1
  • 291000299392Price
    GE10-LM22X1,5ORA3C - 1000299392×2
  • 301000147704Price
    GE18LM22X1,5OROMDA3C - 1000147704×1
  • 311000168541Not stocked
    screw joint×1
  • 321000085467Price
    cheese head screw - 1000085467×2
  • 331000300203Not stocked
    bracket×1
  • 341000050506Not stocked
    union nut×1
  • 351000015517Not stocked
    screw joint×1
  • 361000168252Price
    CONNECTION PIECE - 1000168252×1
  • 371000147704Price
    GE18LM22X1,5OROMDA3C - 1000147704×1
  • 381000298889Not stocked
    Hose×1
  • 391000015494Not stocked
    screw joint×1
  • 401000189585Price
    VALVE - 1000189585×1
  • 411000030660Not stocked
    lock plug×1
  • 421000015521Not stocked
    screw joint×1
  • 431000167361Price
    CONNECTION PIECE - 1000167361×1
  • 441000300424Not stocked
    Hose×1
  • 451000277835Price
    Socket - 1000277835×1
  • 461000296705Not stocked
    hexagon nut×1
  • 471000277838Price
    oiltank - 1000277838×1
  • 481000284529Price
    Bracket - 1000284529×1
  • 491000284530Price
    Container - 1000284530×1
