TH942

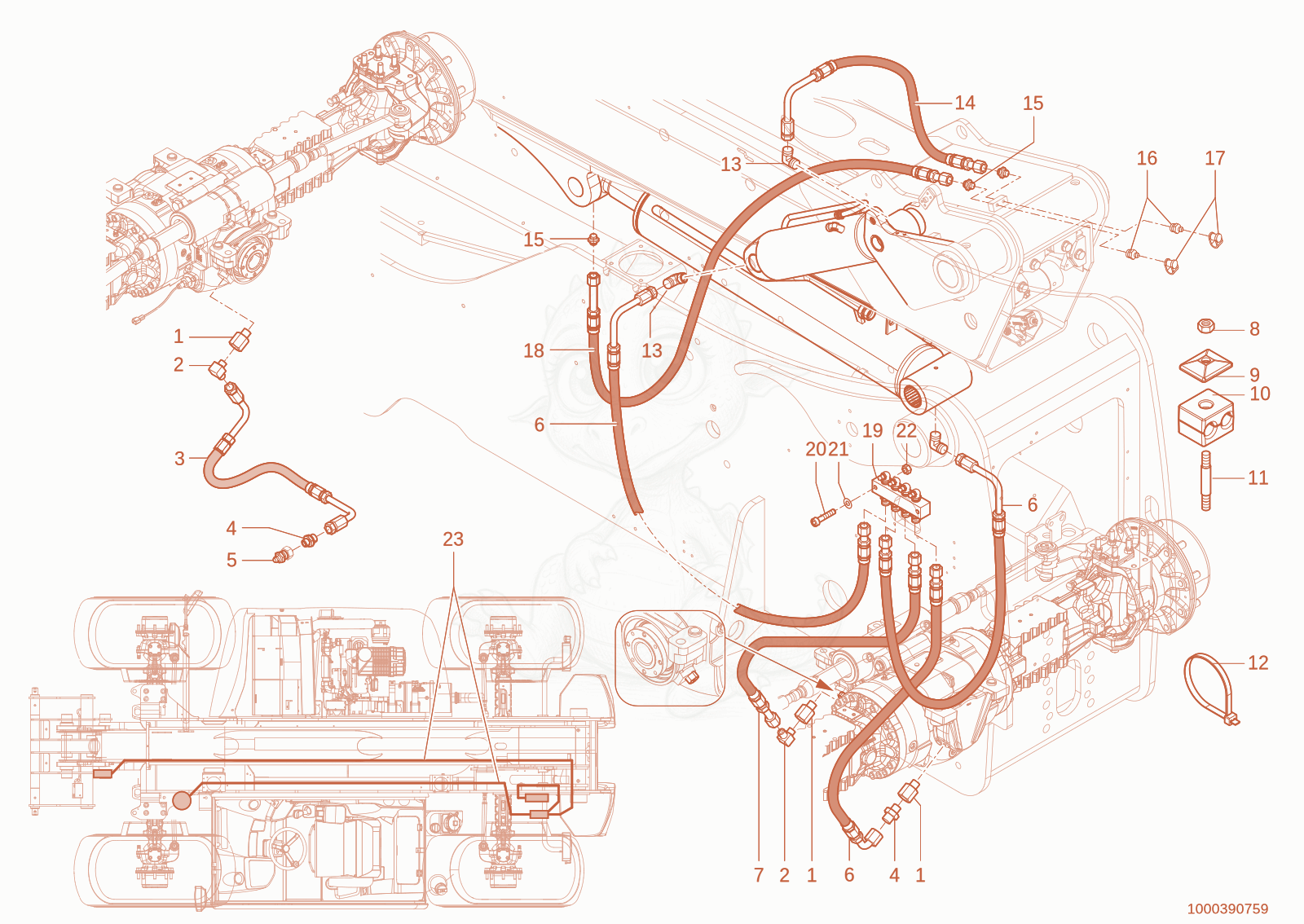

TH942(416-39) lubrication line Diagram
- 11000302974Not stockedextension×3
- angle screw joint - 1000302973×2
- SCHYDR L830,0 - 1000303298×1
- GE06-LLM10X1K A3C - 1000150994×2
- grease nipple - 1000050469×1
- 61000165239Not stockedhp hose×3
- 71000279584Not stockedhp hose×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
- 91000031211Not stockedcover plate×1
- 101000280065Not stockedclamp×1
- 111000048884Not stockedstud×1
- Cable tie 200x4,6 - 1000089965×24
- 131000028213Not stockedscrew joint×4
- 141000386432Not stockedhp hose×1
- GE06-LLM10X1K A3C - 1000150994×4
- grease nipple - 1000050469×3
- CAP - 1000033455×6
- 181000302676Not stockedhp hose×1
- Nipple block - 1000150149×1
- CHEESE HEAD SCREW - 1000126329×2
- washer X-1000092302 - 1000095342×2
- HEXAGON NUT - 1000085587×2
- 231000322439Not stockedlubrication line×1
