Telehandlers

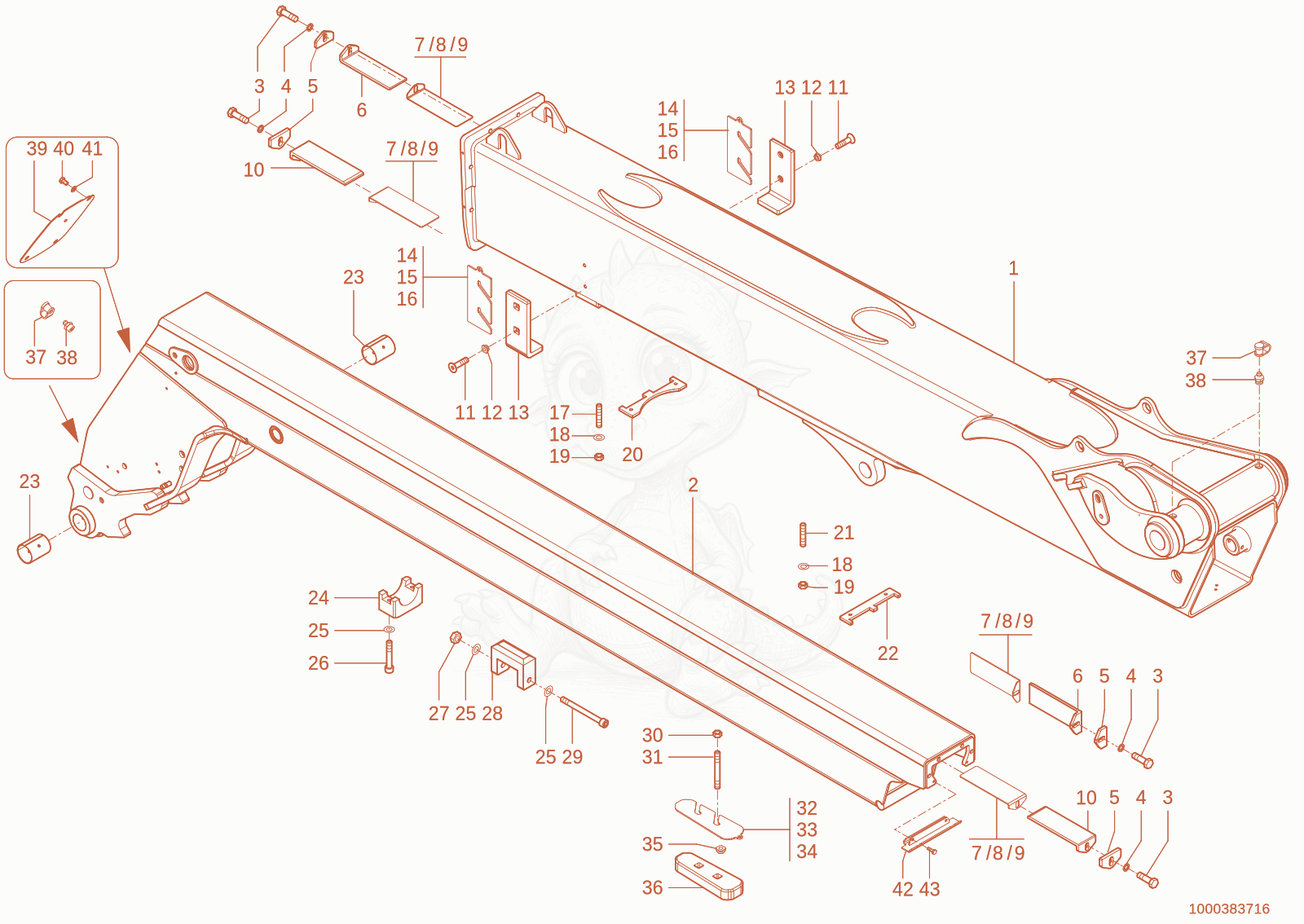

TH750(416-38) Telescopic boom Diagram
- 11000438648Not stockedlift arm×1
- 21000455015Not stockedlift arm×1
- 31000047712Not stockedhex screw×12
- Washer - 1000117989×12
- 51000286562Not stockedplate×12
- 61000266482Not stockedslide piece×8
- 71000297789Not stockedspacer×12
- 81000297790Not stockedspacer×12
- 91000297788Not stockedspacer×12
- 101000286335Not stockedslide piece×4
- 111000085535Not stockedcountersunk screw×4
- 121000266486Not stockedthread piece×4
- 131000266485Not stockedslide piece×2
- 141000270424Not stockedspacer×2
- 151000270423Not stockedspacer×2
- 161000269312Not stockedspacer×2
- 171000158118Not stockedthread pin×2
- WASHER - 1000085610×4
- 191000015415Not stockedhexagon nut×8
- 201000286332Not stockedbooster×1
- THREAD PIN - 1000244621×2
- 221000286566Not stockedbooster×1
- 231000267438Not stockedbushing×2
- 241000269209Not stockedslide piece×1
- WASHER - 1000092291×4
- 261000048178Not stockedcheese head screw×2
- 271000013022Not stockedhexagon nut×1
- Slider - 1000279291×1
- 291000048176Not stockedcheese head screw×1
- HEXAGON NUT - 1000085583×2
- 311000286756Not stockedthread pin×2
- 321000286561Not stockedspacer×1
- 331000286560Not stockedspacer×1
- 341000286559Not stockedspacer×1
- 351000286557Not stockedthread piece×2
- 361000286555Not stockedslide piece×1
- CAP - 1000033455×4
- grease nipple - 1000050469×4
- 401000013008Not stockedhex screw×4
- 411000013027Not stockedwasher×4
- 421000269311Not stockedguide plate×1
- 431000013008Not stockedhex screw×2
