TH745 (416-32)

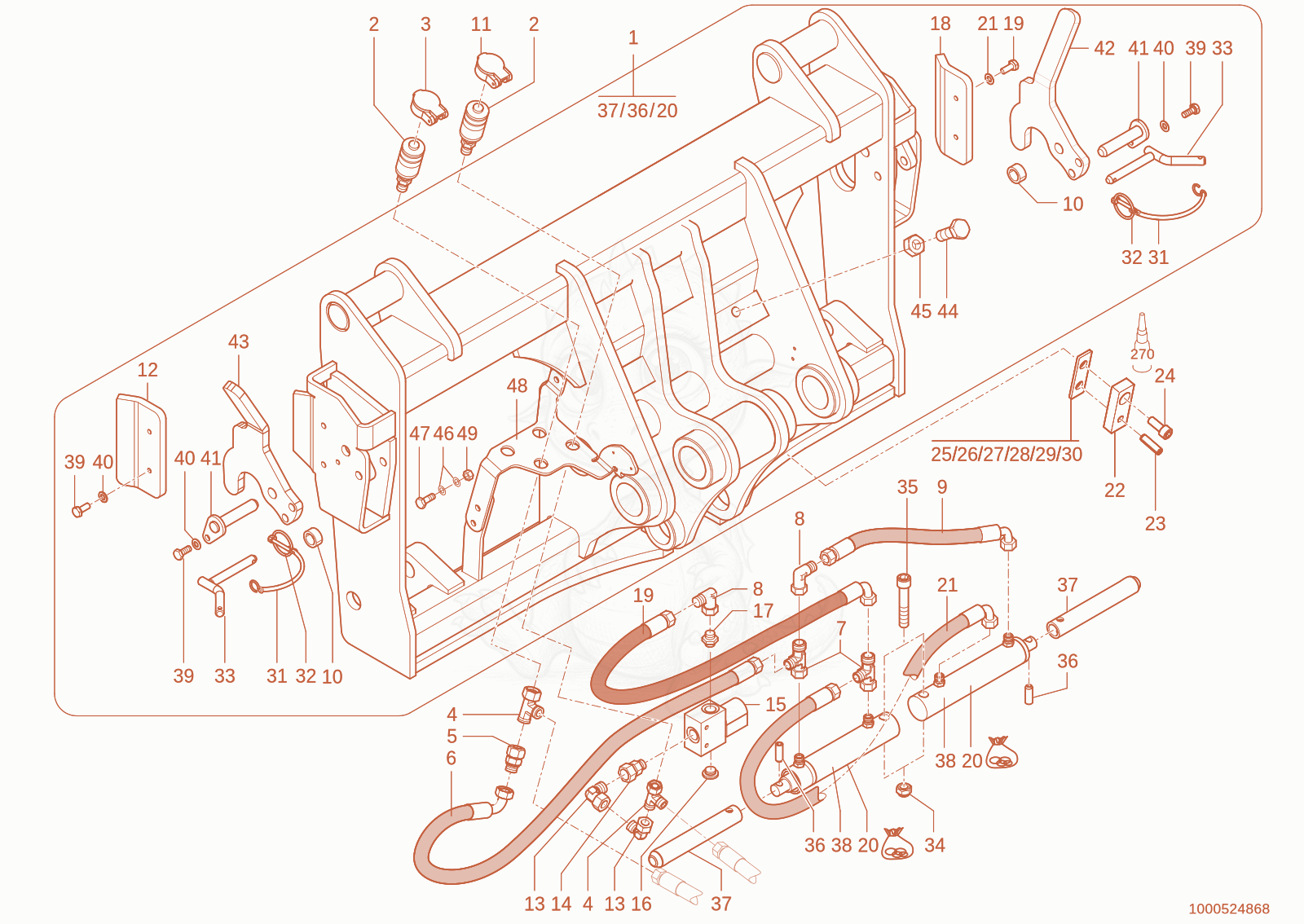

TH745(416-32) quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH745(416-32), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000490020Not stocked
    quickhitch plate×1
  • 21000028413Not stocked
    quick lock coupling×2
  • 31000266545Price
    Cover - 1000266545×1
  • 41000015539Not stocked
    screw joint×2
  • 51000020688Not stocked
    screw joint×1
  • 61000098336Price
    SLHYDR 2SC 8,0PN10 0 PN10 90 L300,0 - 1000098336×1
  • 71000085089Price
    EL10LOMDA3C - 1000085089×2
  • 81000015510Not stocked
    screw joint×2
  • 91000130526Price
    SLHYDR 2SC 8,0PN10 0 PN10 0 L570,0 - 1000130526×1
  • 101000493932Not stocked
    shim×2
  • 111000033344Price
    Cover - 1000033344×1
  • 121000493939Price
    plate - 1000493939×1
  • 131000015512Not stocked
    screw joint×2
  • 141000015521Not stocked
    screw joint×1
  • 151000027858Price
    VALVE-SOLENOID - 1000027858×1
  • 161000030660Not stocked
    lock plug×1
  • 171000106888Price
    GE10LR1/2"EDOMDA3C - 1000106888×1
  • 181000493937Price
    plate - 1000493937×1
  • 191000247440Price
    SLHYDR 2SC 8,0PN10 0 PN10 90 L490,0 - 1000247440×1
  • 201000524796Price
    SEAL KIT ø38 - 1000524796×1
  • 211000247371Price
    SLHYDR 2SC 8,0PN10 0 PN10 90 L410,0 - 1000247371×1
  • 221000438791Not stocked
    limit stop plate×2
  • 231000438589Not stocked
    cylinder pin×2
  • 241000440249Not stocked
    cheese head screw×2
  • 251000438797Not stocked
    spacer×2
  • 261000438794Not stocked
    spacer×2
  • 271000438793Not stocked
    spacer×2
  • 281000438792Not stocked
    spacer×2
  • 291000438795Not stocked
    spacer×2
  • 301000438796Not stocked
    spacer×2
  • 311000030719Price
    Chain - 1000030719×2
  • 321000030824Not stocked
    cotter pin×2
  • 331000493935Price
    Pin - 1000493935×2
  • 341000146812Price
    HEXAGON NUT - 1000146812×2
  • 351000048310Not stocked
    cheese head screw×2
  • 361000132855Not stocked
    cotter pin×2
  • 371000491114Price
    Pin - 1000491114×2
  • 381000491122Price
    CYLINDER ø38 - 1000491122×2
  • 391000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 401000092291Price
    WASHER - 1000092291×6
  • 411000493936Price
    Pin - 1000493936×2
  • 421000248657Not stocked
    lock×1
  • 431000248656Not stocked
    lock×1
  • 441000047871Not stocked
    hex screw×2
  • 451000021948Not stocked
    hexagon nut×2
  • 461000015432Price
    washer 10,5 A2C DIN125 - 1000015432×5
  • 471000015364Not stocked
    hex screw×3
  • 481000303136Not stocked
    bracket×1
  • 491000015407Not stocked
    hexagon nut×2
