Telehandler TH744

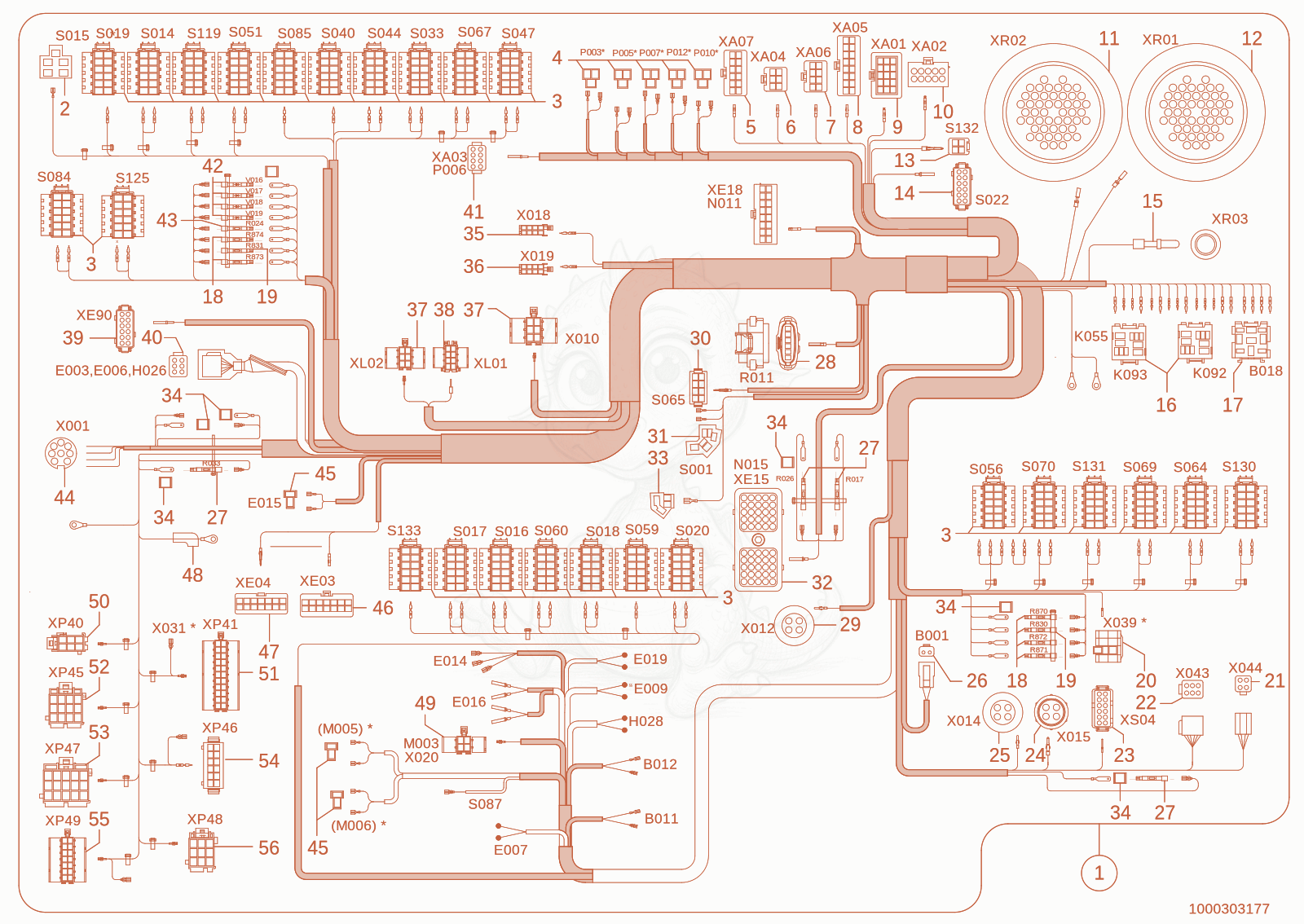

TH744(416-02) wiring harness Diagram
- 11000298974Not stockedwiring harness×1
- plug sleeve housing - 1000086664×1
- bushing housing - 1000103949×25
- plug sleeve housing - 1000095339×5
- BUSHING HOUSING - 1000161407×1
- bushing housing - 1000185644×1
- 71000128153Not stockedbushing housing×1
- bushing housing - 1000189741×1
- Pin housing - 1000104663×1
- 101000255726Not stockedpin housing×1
- 111000147267Not stockedbushing housing×1
- BUSHING HOUSING - 1000147268×1
- 131000166642Not stockedpin housing×1
- 141000148250Not stockedplug bushing×1
- 151000147060Not stockedpin housing×1
- 161000295341Not stockedsockets×2
- 171000295673Not stockedsockets×1
- 181000285871Not stockedresistor×5
- resistor - 1000190316×2
- plug sleeve housing - 1000094922×1
- bushing housing - 1000104286×1
- bushing housing - 1000299131×1
- Pin housing - 1000240116×1
- 241000264681Not stockedpin housing×1
- 251000277526Not stockedpin housing×2
- 261000027438Not stockedbushing housing×1
- resistor - 1000190317×3
- 281000166646Not stockedbushing housing×1
- bushing housing - 1000282328×1
- 301000288777Not stockedplug housing×1
- PLUG - 1000027386×1
- 321000161402Not stockedbushing housing×1
- 331000027368Not stockedcentral plug×1
- PLUG HOUSING - 1000085008×8
- CONTACT-HOUSING - 1000104902×1
- CONTACT-HOUSING - 1000104903×1
- bushing housing - 1000187268×2
- Pin housing - 1000173083×1
- bushing housing - 1000254182×1
- 401000027431Not stockedbushing housing×1
- bushing housing - 1000105113×1
- 421000100594Not stockedblock diode×4
- 431000285872Not stockedresistor×1
- bushing housing - 1000165663×1
- plug sleeve housing - 1000095323×3
- 461000051984Not stockedbushing housing×1
- Plug housing - 1000284771×1
- PROTECTING CAP - 1000098966×1
- BUSHING HOUSING - 1000176122×1
- bushing housing - 1000099201×1
- BUSHING HOUSING - 1000104433×1
- bushing housing - 1000098961×1
- bushing housing - 1000098960×1
- 541000146828Not stockedbushing housing×1
- bushing housing - 1000100971×1
- Bushing housing - 1000149340×1
