TH735

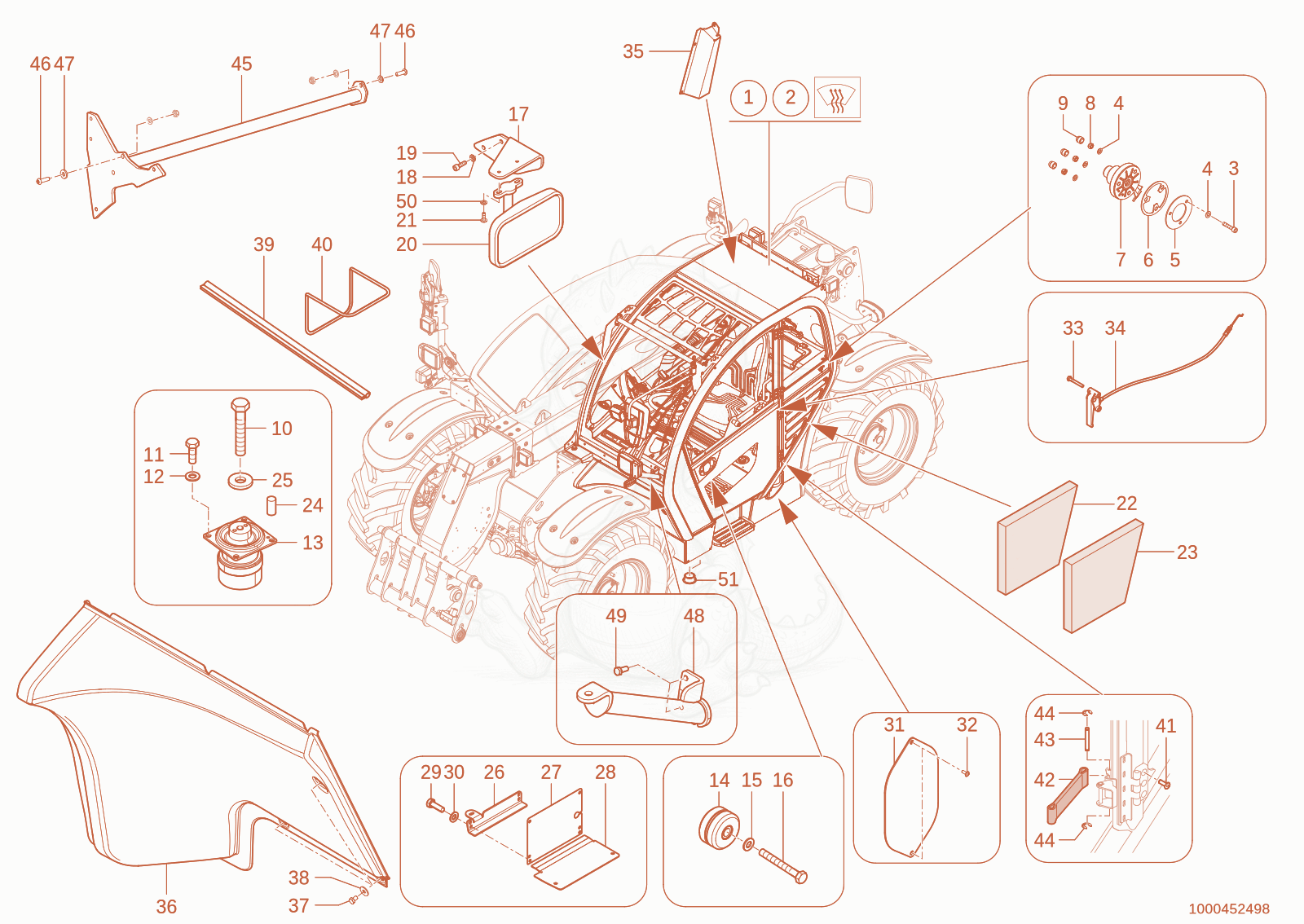

TH735(415-36) Cab Diagram
- 11000485685Not stockedStandard cabin×1
- 21000485686Not stockedCabine cpl. 415-4X STD Window heater×1
- 31000392953Not stockedscrew×3
- WASHER - 1000372764×6
- 51000308615Not stockedlining×2
- 61000308606Not stockedwasher×1
- 71000308604Not stockeddoor fastener×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
- 91000308608Not stockedcap×3
- 101000047711Not stockedhex screw×2
- 111000015348Not stockedhex screw×8
- WASHER - 1000092291×8
- 131000378051Not stockedhydro.bearing×2
- Bearing 1000236499×1
- WASHER - 1000235712×1
- hex screw - 1000085348×1
- Bracket - 1000449654×1
- WASHER - 1000092290×2
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- INNER MIRROR - 1000138616×1
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×2
- Filter - 1000272301×1
- 231000272288Not stockedCarbon Filter×1
- cylinder pin - 1000294621×2
- 251000020782Not stockedwasher×2
- 261000342224Not stockedbracket×1
- 271000342225Not stockedcover plate×1
- 281000354489Not stockedMaintenance cover×1
- 291000015343Not stockedhex screw×8
- 301000015431Not stockedwasher×8
- 311000362582Not stockedcover×1
- SCREW - 1000187776×2
- Door opener - 1000145186×1
- Screw - 1000109212×2
- 351000335158Not stockedcover plate×1
- 361000389102Not stockedtrim×1
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×4
- 381000013027Not stockedwasher×4
- rofile - 1000097040×1.02
- RUBBER PROFILE - 1000099662×0.48
- countersunk screw M8X25 ISO10642 - 1000392952×12
- fastenbelt - 1000356558×1
- PIN - 1000356557×1
- 441000356554Not stockedlock ring×1
- 451000452503Not stockedbar×1
- 461000015348Not stockedhex screw×4
- WASHER - 1000092291×4
- 481000390440Not stockedbracket×1
- 491000015343Not stockedhex screw×2
- WASHER - 1000092289×2
- 511000445071Not stockedplug×2
