Telehandlers

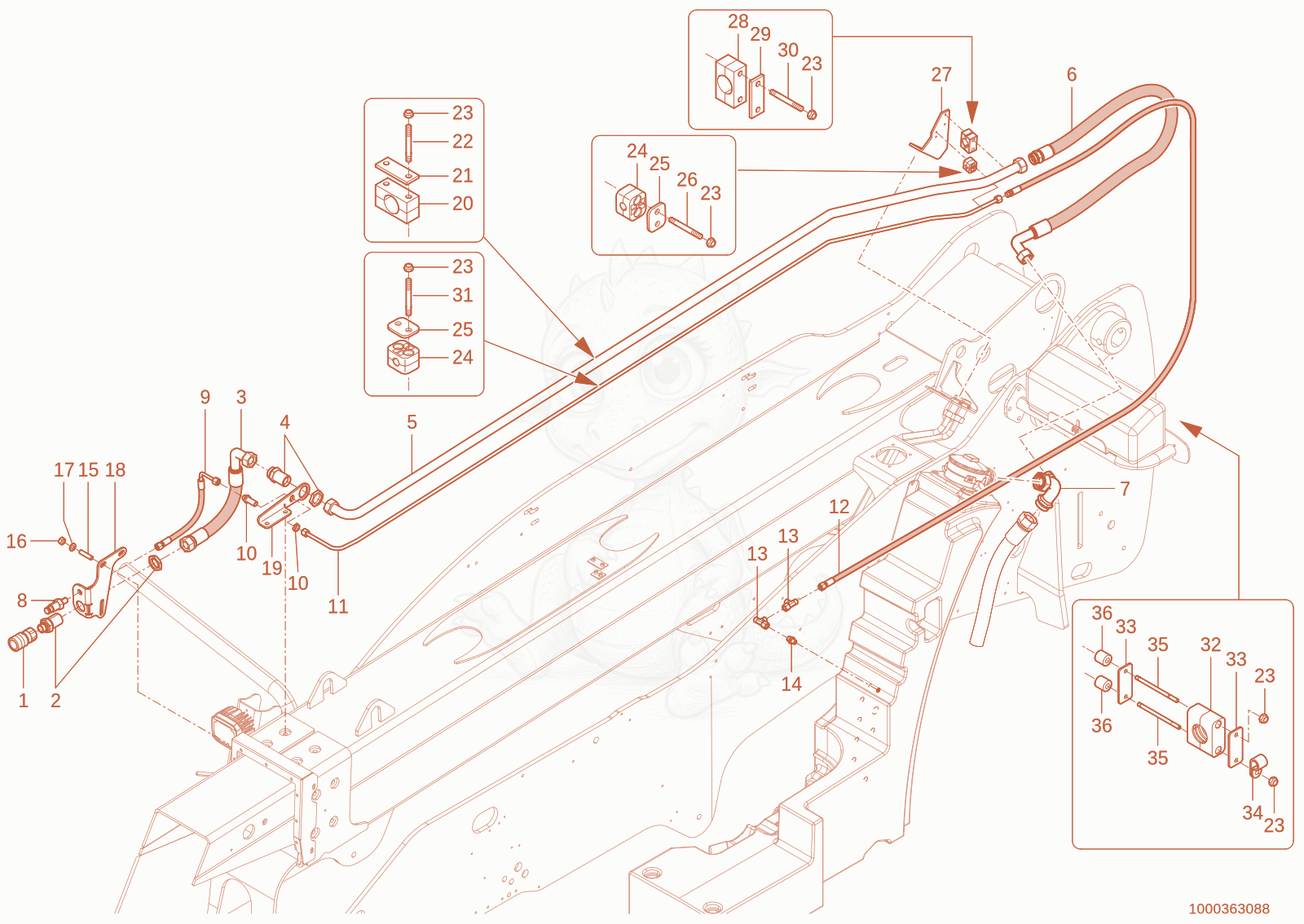

TH735(415-16) Cycle opt. Diagram
- 11000028483Not stockedquick lock coupling×1
- ADAPTER - 1000251998×1
- SLHYDR SPIR25 PN28 0 PN28 90 L430,0 0 - 1000188219×1
- SV28-L - 1000085059×1
- 51000358732Not stockedhydraulic pipe×1
- 61000358539Not stockedHose×1
- 71000358734Not stockedconnection piece×1
- 81000000563Not stockedquick lock coupling×1
- SLHYDR 2SC 8,0PN10 0 PN10 90 L350,0 - 1000233260×1
- SV10-L - 1000085076×1
- 111000358733Not stockedhydraulic pipe×1
- 121000358537Not stockedHose×1
- EL10LOMDA3C - 1000085089×2
- GE10LMEDOMDA3C - 1000085114×1
- THREAD PIN - 1000158036×3
- 161000015415Not stockedhexagon nut×3
- 171000049219Not stockedwasher×6
- 181000362589Not stockedbracket×1
- 191000357443Not stockedbracket×1
- CLAMP - 1000031124×1
- 211000031685Not stockedcover plate×1
- 221000048885Not stockedstud×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×10
- 241000031251Not stockedclamp×2
- 251000031397Not stockedcover plate×2
- 261000048878Not stockedstud×2
- 271000357441Not stockedbracket×1
- CLAMP - 1000031124×1
- 291000031685Not stockedcover plate×1
- STUD - 1000048887×2
- 311000048884Not stockedstud×2
- CLAMP - 1000032250×1
- COVER PLATE - 1000099794×2
- CLAMP - 1000032103×1
- STUD - 1000109713×2
- Distance piece - 1000251449×2
