Telehandlers

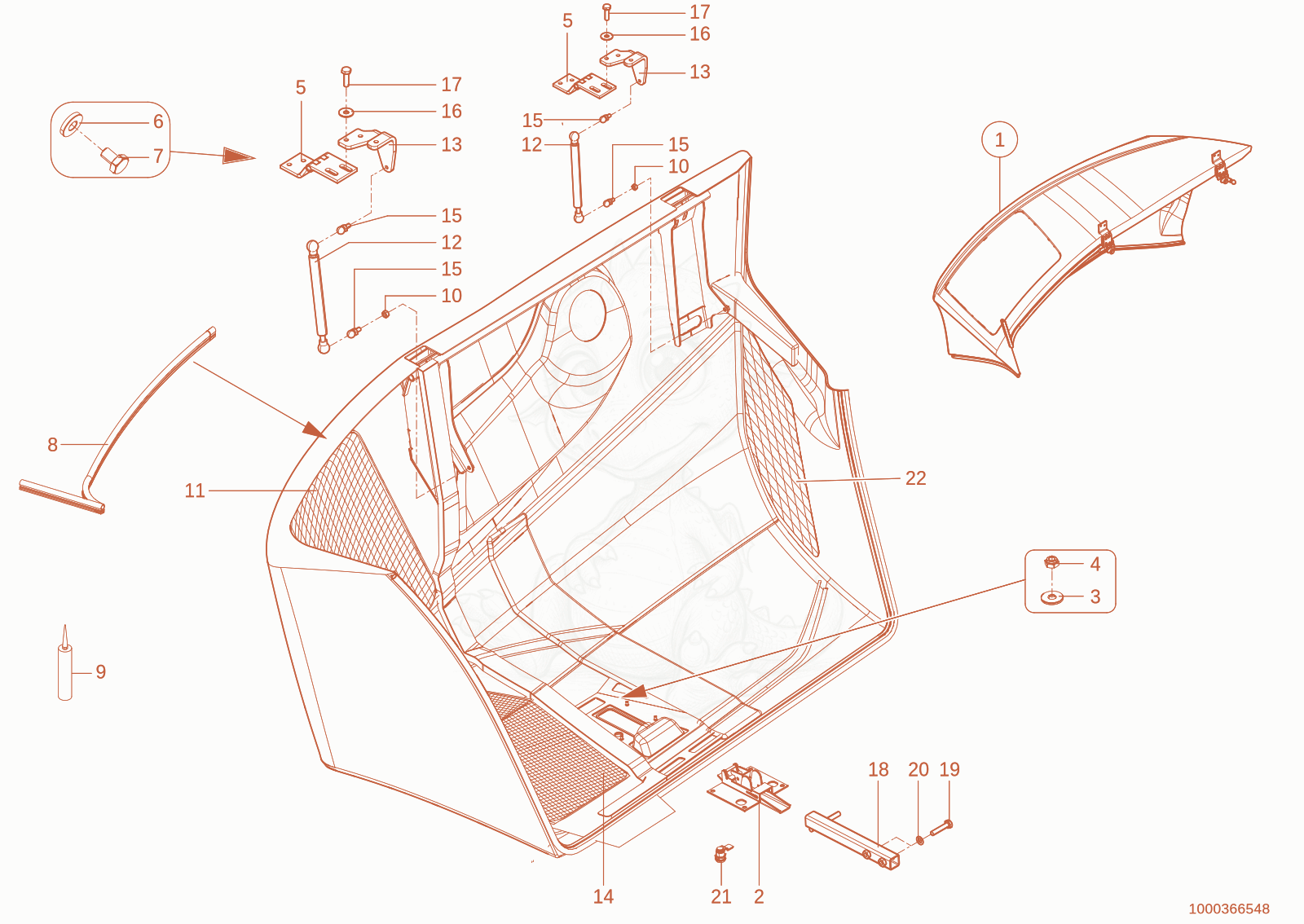

TH730(415-14) engine hood Diagram
- 11000338527Not stockedengine hood×1
- Lock - 1000146417×1
- 31000049283Not stockedbearing disc×4
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- Hinge - 1000154691×2
- 61000049278Not stockedwasher×4
- 71000013009Not stockedhex screw×4
- Profile - 1000097173×1
- 91000052895Not stockedsealing compound×1
- 101000013022Not stockedhexagon nut×2
- 111000341647Not stockedscreen×1
- 121000260467Not stockedgas strut×2
- 131000353886Not stockedmounting×2
- 141000341646Not stockedscreen×1
- BALL PLUG - 1000099031×4
- Washer 10,5 St A2C - 1000092303×6
- 171000015346Not stockedhex screw×6
- bar - 1000148162×1
- hex screw - 1000085414×2
- WASHER - 1000092291×2
- Lock - 1000154570×1
- 221000373828Not stockedscreen×1
