TH730

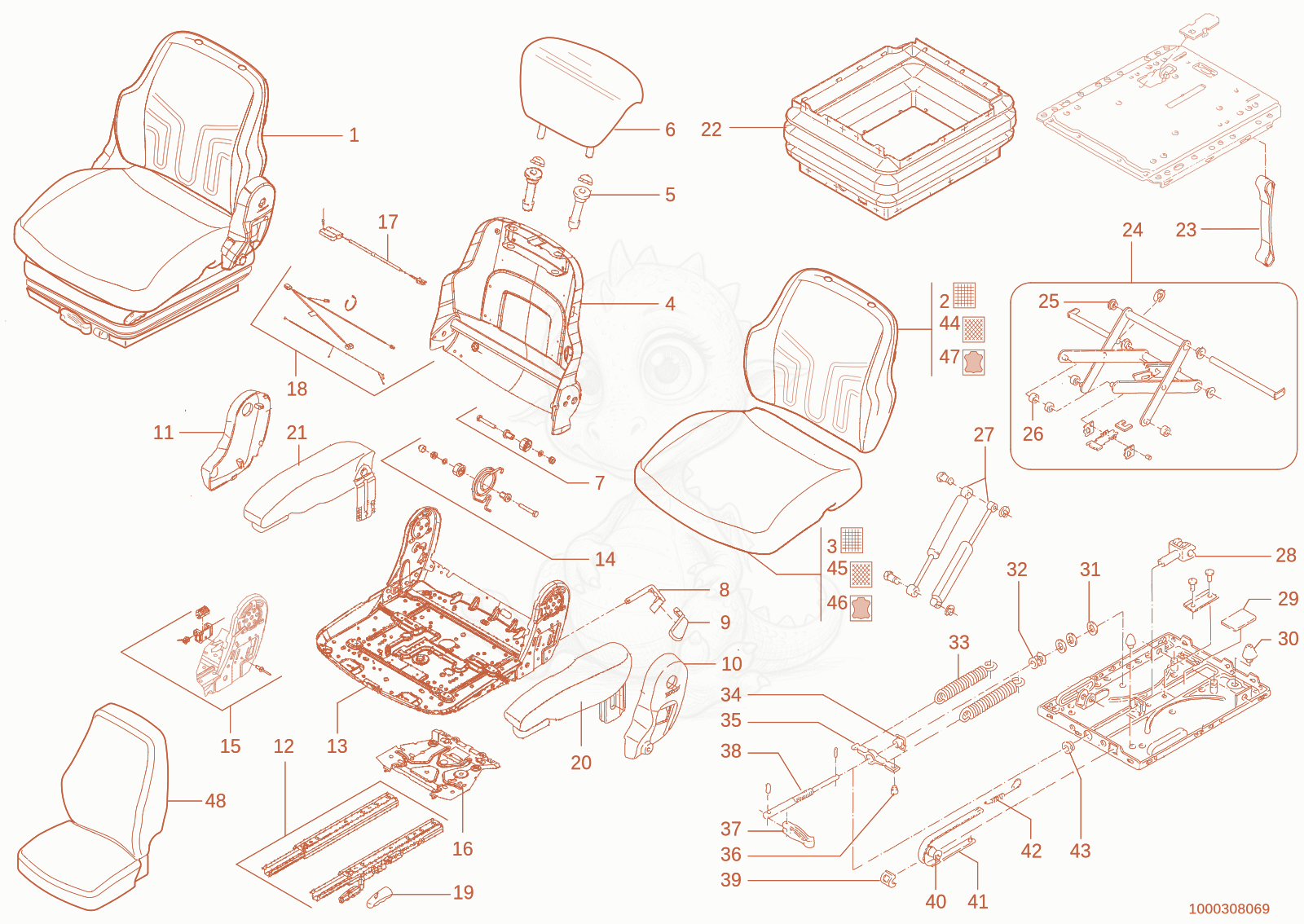

TH730(415-04) drivers seat Diagram
- Driversseat 1000292167×1
- 21000088411Not stockedback cushion×1
- Seatupholstery 1000084945×1
- back part - 1000298239×1
- guide sleeve - 1000073554×1
- 61000038209Not stockedheadrest×1
- bearing - 1000298282×2
- LEVER - 1000088409×1
- HANDLE - 1000088405×1
- Cover - 1000147168×1
- COVER - 1000147170×1
- Displacementrail 1000298236×1
- Seatplate 1000297345×1
- bearing - 1000298281×1
- Bearing - 1000088404×1
- balance - 1000297349×1
- seat switch - 1000297454×1
- Wiring harness - 1000298285×1
- HANDLE - 1000147158×1
- ARM REST - 1000111249×1
- Arm rest - 1000089492×1
- BELLOW - 1000108144×1
- 231000108189Not stockedstrip×1
- 241000086476Not stockedwing×1
- Bushing - 1000032631×4
- 261000036272Not stockedroller×4
- 271000147161Not stockedshock absorber×1
- 281000088162Not stockedQuick-hitch-coupler×1
- 291000147164Not stockedrubber plate×1
- 301000147165Not stockedbuffer×1
- 311000088392Not stockedwasher×1
- Ball bearing - 1000108148×1
- Spring - 1000030809×2
- 341000117897Not stockednut×1
- 351000088391Not stockedspring lodging×1
- 361000088396Not stockedplug×1
- 371000108194Not stockedHandle kpl.×1
- 381000088399Not stockeddisplac spindle×1
- 391000088160Not stockedguide×1
- ROLLER - 1000088393×1
- Announcement - 1000147166×1
- Spring - 1000030818×1
- 431000108183Not stockedring×1
- cushion - 1000308515×1
- 451000310997Not stockedseat upholstery×1
- Seatupholstery 1000089496×1
- BACK CUSHION - 1000154470×1
- 481000508543Not stockedslip-cover×1
