TH627 Telehandler

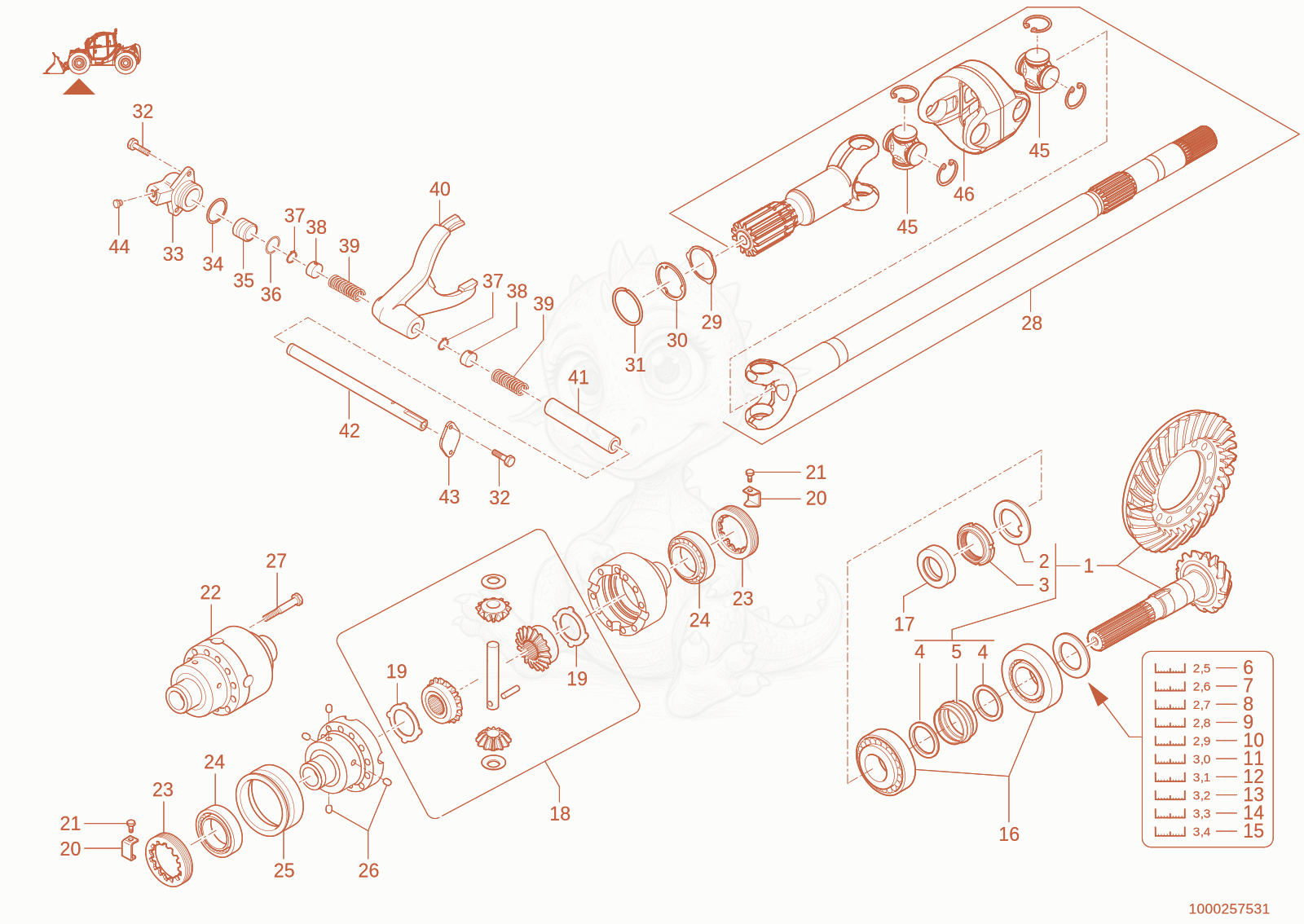

TH627(418-02) angle drive Diagram
- 11000108627Not stockedangle drive×1
- Washer - 1000089263×1
- Screw - 1000089262×1
- Washer - 1000108458×2
- SHIM - 1000108460×1
- Distance piece - 1000108470×1
- Distance piece - 1000105067×1
- Distance piece - 1000105069×1
- Distance piece - 1000105070×1
- Distance piece - 1000105071×1
- Distance piece - 1000105072×1
- Distance piece - 1000105074×1
- Distance piece - 1000105075×1
- Distance piece - 1000105076×1
- Distance piece - 1000105077×1
- Bearing - 1000105078×2
- Radial seal - 1000257414×1
- 181000108480Not stockedDifferential Set×1
- LOCK WASHER - 1000132801×2
- Plate - 1000105079×2
- Screw - 1000105052×2
- 221000108481Not stockedhousing×1
- Nut - 1000108482×2
- Bearing - 1000105039×2
- 251000105038Not stockedsleeve×1
- 261000105037Not stockedpin×4
- SCREW - 1000108483×12
- Doublecardanshaft 1000257373×2
- Washer - 1000257374×2
- Washer - 1000257375×2
- lock ring - 1000092421×2
- 321000108550Not stockedscrew×4
- 331000108551Not stockedsupport×1
- 341000108552Not stockedo-ring×1
- Piston - 1000089289×1
- 361000108553Not stockedo-ring×1
- LOCK RING - 1000108554×2
- SHIM - 1000108555×2
- SPRING - 1000108556×2
- 401000257416Not stockedshift fork×1
- 411000108557Not stockedbushing×1
- STUD - 1000108559×1
- 431000108560Not stockedflange×1
- PLUG - 1000108561×1
- CROSS UNION SET - 1000260860×4
- Couplingring 1000260859×2
