ST50

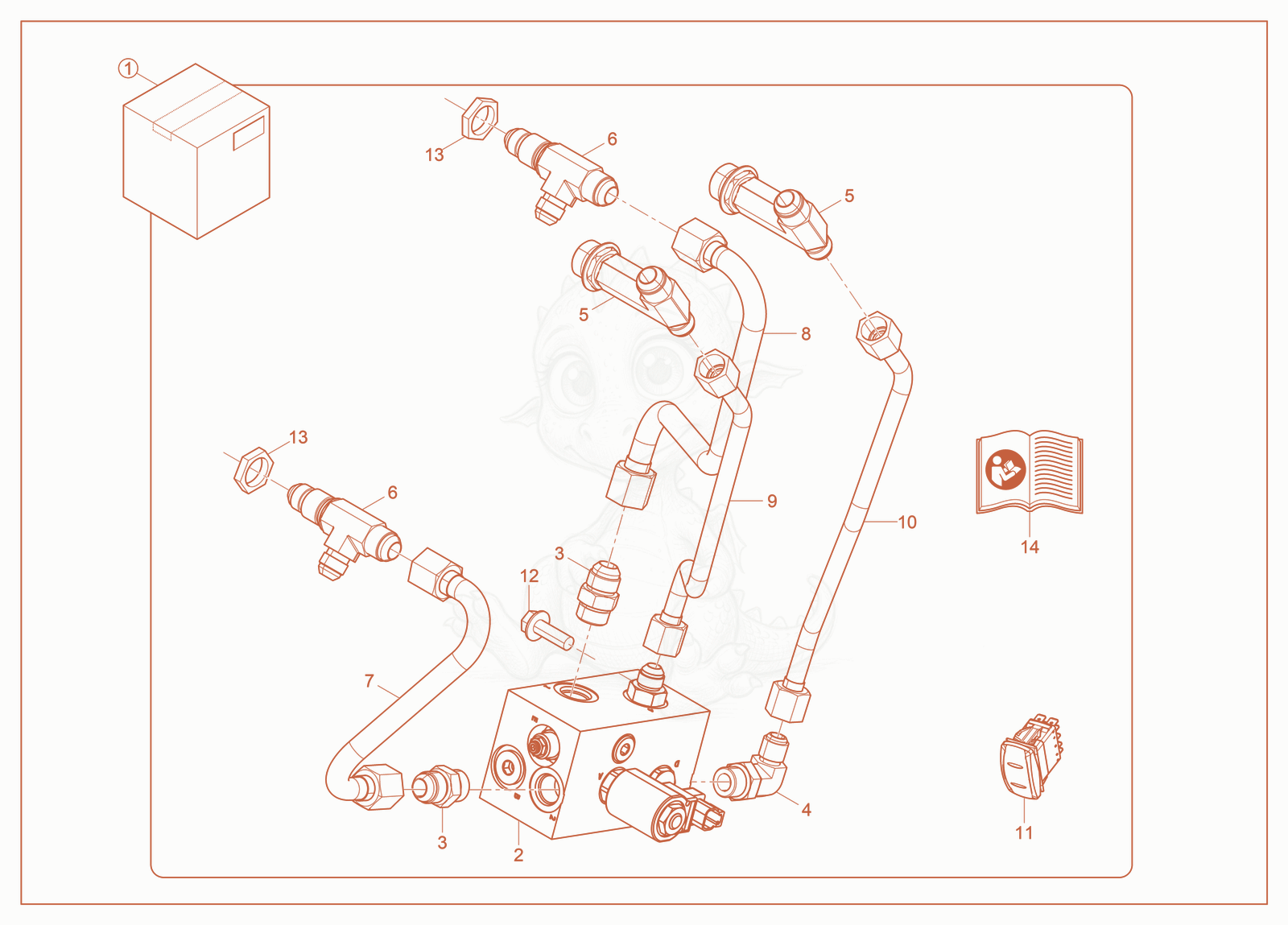

ST50 Kit—Bucket Level Diagram

Exploded parts diagram of the Kit—Bucket Level of a Wacker Neuson ST50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000489985Not stocked
    Kit—bucket leveling×1
  • 21000444542Not stocked
    Self-level valve×1
  • 31000343333Price
    FITTING HYD 10MB-10MJ - 1000343333×2
  • 41000343326Not stocked
    Elbow fitting×1
  • 51000340644Not stocked
    Tee fitting×2
  • 61000343363Not stocked
    Tee fitting×2
  • 71000339831Not stocked
    Tubing×1
  • 81000339820Not stocked
    Tubing×1
  • 91000339833Not stocked
    Tubing×1
  • 101000339832Not stocked
    Tubing×1
  • 111000342317Not stocked
    Rocker switch×1
  • 121000343380Price
    BOLT M10 X 30 FLANGED 10.9 ZINC - 1000343380×2
  • 131000343334Price
    NUT 7/8 BULKHEAD ZINC - 1000343334×2
  • 141000365306Not stocked
    Installation instructions×1
