ST37

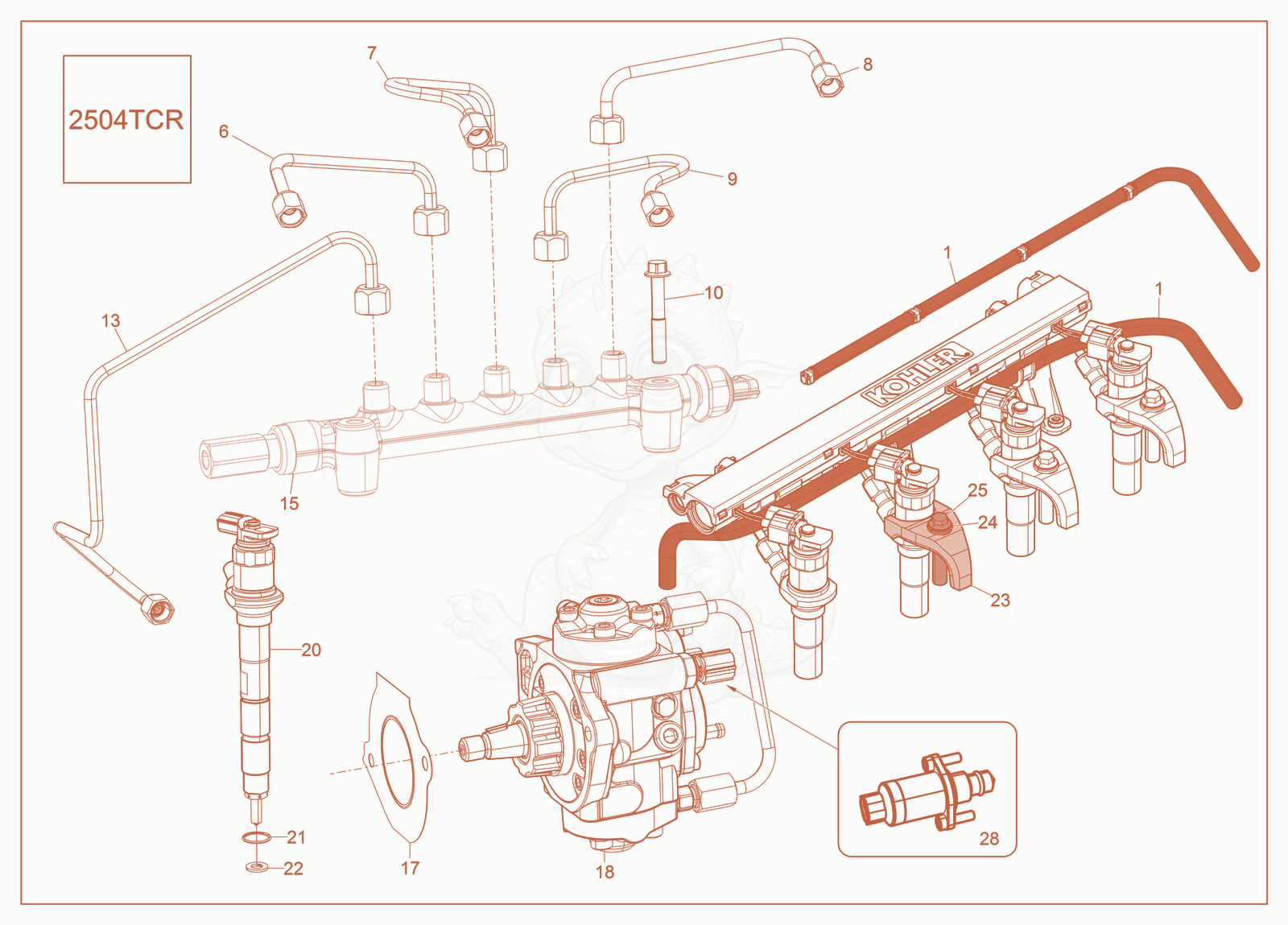

ST37 Fuel System Diagram
- 15200016344Not stockedFuel pipes×1
- SCREW - 5200016342×1
- Copper washer D14/10.2 1 - 5000082183×2
- CONNECTOR-HOSE - 5000159342×1
- 65100016060Not stockedInjection pipe×1
- 75100016061Not stockedInjection pipe×1
- 85100016062Not stockedInjection pipe×1
- 95100016063Not stockedInjection pipe×1
- 105200016343Not stockedScrew×2
- SCREW-FLANGE M8X40 - 5200016346×1
- 135200016347Not stockedFuel line×1
- MANIFOLD-Pressure line - 5200016354×1
- NUT-HEX-FLANGE - 5200016355×1
- GASKET - 5200016356×1
- 185200016357Not stockedInjection pump×1
- SCREW-HEX HEAD M8X28 - 5200016358×2
- 205200016359Not stockedInjection valve×4
- 215200016360Not stockedO-ring×4
- 225200016361Not stockedSeal×4
- BRACKET-INJECTOR - 5200016362×4
- WASHER-DOUBLE - 5200016363×4
- 255200016364Not stockedScrew×4
- 265200016365Not stockedScrew×1
- CLAMP - 5200016366×1
- VALVE KIT - 5100044912×1
