SCREED-TRUSS SP50,PWR,5',5HP

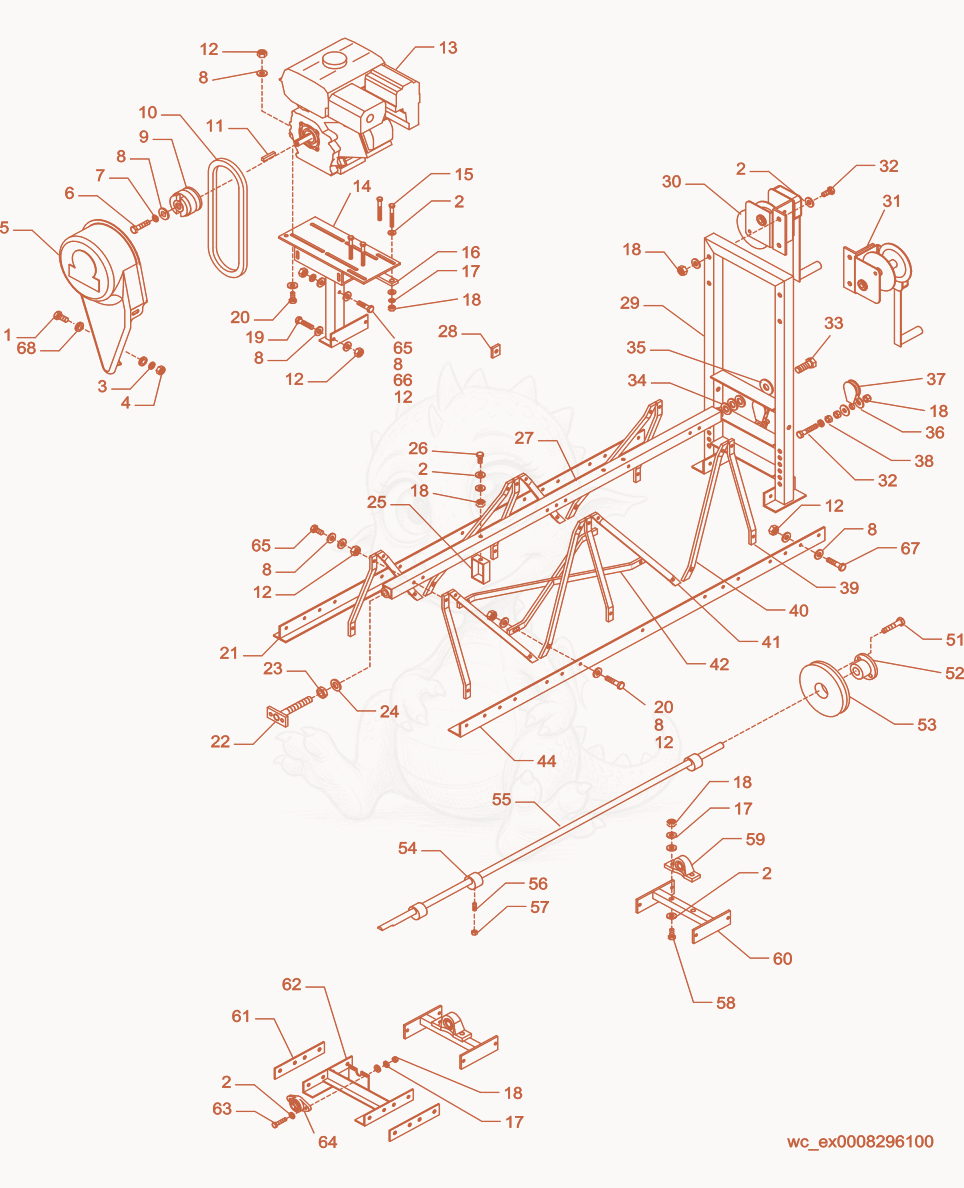

SP50 Truss Screed Components Diagram

Exploded parts diagram of the Truss Screed Components of a Wacker Neuson SP50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000051335Price
    SCREW 1/4-20 X 1 GR5,HX.HD. - 5000051335×2
  • 25000025637Price
    WASHER 3/8 NOM,STEEL,FLAT - 5000025637×32
  • 35000025647Price
    WASHER-LOCK 1/4,MED. - 5000025647×2
  • 45000025633Price
    NUT-LOCK 1/4-20,HEX,NYLON INS. - 5000025633×2
  • 55000116133Not stocked
    Beltguard×1
  • 65000051739Not stocked
    Screw×1
  • 75000053157Not stocked
    Lock washer×1
  • 85000025636Price
    WASHER 5/16 NOM,ST,FLAT - 5000025636×47
  • 95000116442Price
    Clutch - 5000116442×1
  • 105000116481Not stocked
    V-belt×1
  • 115000087918Not stocked
    Square key×1
  • 125000025634Not stocked
    Lock nut×32
  • 135000089226Not stocked
    Honda engine×1
  • 145000116446Not stocked
    Bracket×1
  • 155000116453Not stocked
    Screw×4
  • 165000116419Not stocked
    Plate×1
  • 175000025649Price
    WASHER-LOCK 3/8,MED. - 5000025649×14
  • 185000025723Price
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×18
  • 195000025547Price
    SCREW 5/16-18 X 1-1/4 GR5,HXHD - 5000025547×2
  • 205000027218Price
    SCREW 5/16-18 X 1-1/2,HX.HD. - 5000027218×12
  • 215000116433Not stocked
    T-blade×1
  • 225000116407Price
    BOLT-T,COARSE THD. - 5000116407×1
  • 235000116449Price
    NUT-JAM,COARSE THD. - 5000116449×1
  • 245000025640Price
    WASHER 3/4 NOM,FLAT STEEL - 5000025640×4
  • 255000116417Not stocked
    Cable guide×2
  • 265000088045Not stocked
    Screw×2
  • 275000116421Not stocked
    Frame×1
  • 285000117159Price
    Shim - 5000117159×1
  • 295000116444Not stocked
    Frame×1
  • 305000116404Not stocked
    Winch & cable×1
  • 315000116405Not stocked
    Winch & cable×1
  • 325000025690Price
    SCREW 1/2-13 X 2-1/2,HX.HD. - 5000025690×6
  • 335000116451Not stocked
    Screw×1
  • 345000025640Price
    WASHER 3/4 NOM,FLAT STEEL - 5000025640×3
  • 355000116457Not stocked
    Washer×1
  • 365000116456Price
    WASHER 1/2,FLAT - 5000116456×4
  • 375000116409Price
    PULLEY-CABLE - 5000116409×2
  • 385000025626Price
    NUT .500-13 HX JAM ZN - 5000025626×4
  • 395000116423Not stocked
    Strut×6
  • 405000116428Not stocked
    Strut×4
  • 415000116425Not stocked
    Strut×4
  • 425000116441Not stocked
    Brace×1
  • 445000117453Not stocked
    L-Blade×1
  • 515000025573Not stocked
    Hexagonal head cap screw×2
  • 525000116393Not stocked
    Bushing×1
  • 535000116394Price
    PULLEY - 5000116394×1
  • 545000116396Price
    WEIGHT-ECCENTRIC - 5000116396×3
  • 555000116380Price
    SHAFT-5 FT. - 5000116380×1
  • 565000116455Not stocked
    Setscrew×3
  • 575000025617Price
    NUT 3/8-16,HEX - 5000025617×3
  • 585000116452Price
    SCREW 3/8-16 X 2-1/2,HX.HD. - 5000116452×4
  • 595000116402Price
    BEARING-PILLOW BLOCK,3/4 - 5000116402×2
  • 605000116435Not stocked
    Bracket×2
  • 615000116437Not stocked
    Plate×1
  • 625000116436Not stocked
    Bracket×1
  • 635000043841Not stocked
    Hexagonal head cap screw×2
  • 645000116403Price
    BEARING-CONNECTOR - 5000116403×1
  • 655000025572Price
    SCREW 5/16-18X2-3/4 GR8,HX HD - 5000025572×8
  • 665000025648Price
    WASHER-LOCK 5/16,MED - 5000025648×1
  • 675000025546Price
    SCREW 5/16-18 X 1 GR5,HX.HD. - 5000025546×14
  • 685000025635Price
    WASHER 1/4 NOM,STEEL,FLAT - 5000025635×4
