SM60

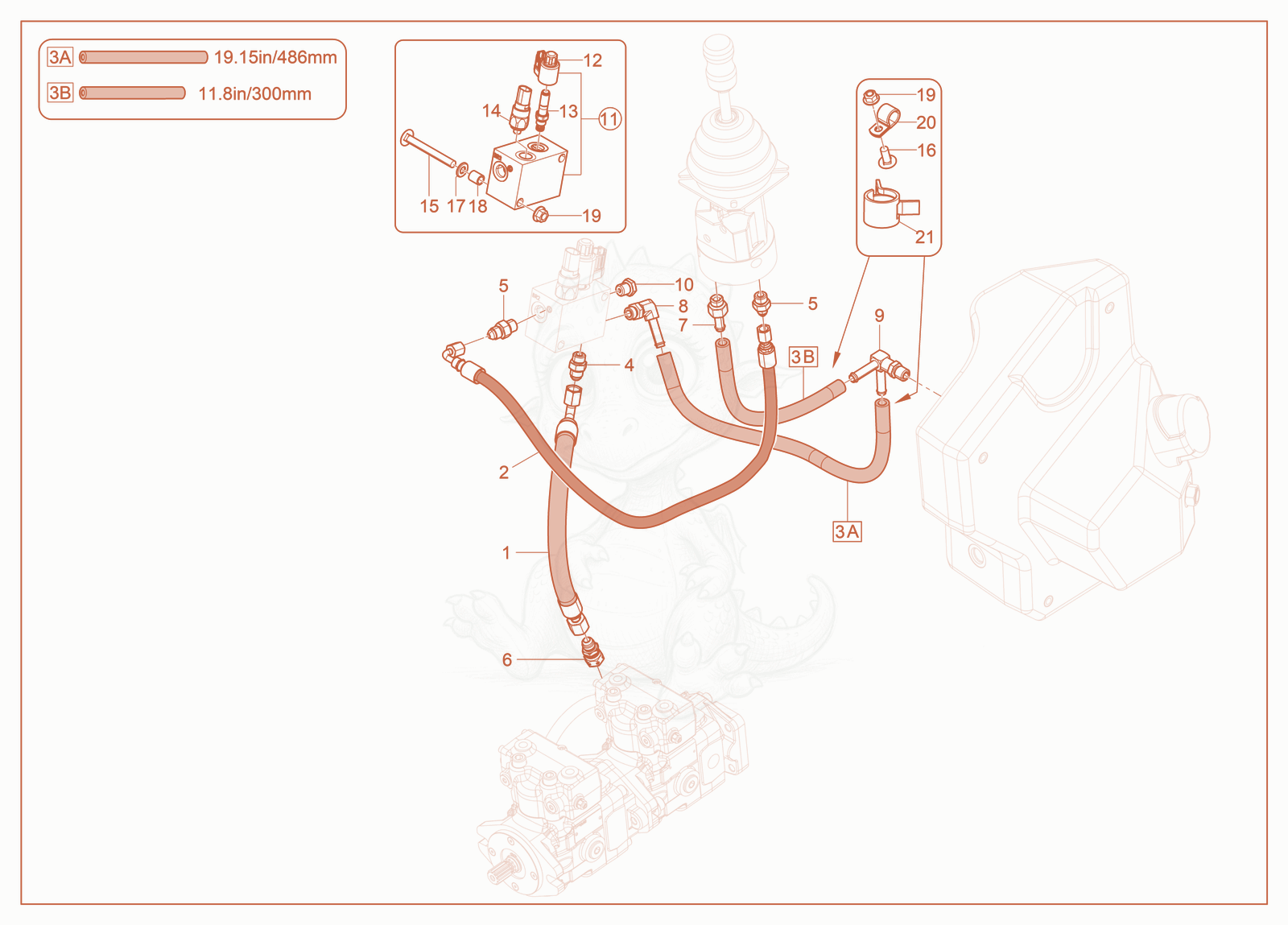

SM60 Brake System Diagram

Exploded parts diagram of the Brake System of a Wacker Neuson SM60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000480805Price
    HOSE ASSEMBLY - 1000480805×1
  • 21000480799Price
    HOSE ASSEMBLY - 1000480799×1
  • 31000505589Price
    Hose 2FT (609.6mm) - 1000505589×1
  • 41000343338Price
    FITTING HYD 06MB-06MJ - 1000343338×1
  • 51000343339Price
    FITTING HYD 06MB-04MJ - 1000343339×2
  • 61000475151Price
    FITTING HYD 04FBSPP-06MJ - 1000475151×1
  • 71000429997Price
    FITTING HYD 06MB-06HB - 1000429997×1
  • 81000343381Price
    FITTING HYD 06MB-06HB90 - 1000343381×1
  • 91000343151Price
    FITTING HYD TEE 06MORB 06 06 - 1000343151×1
  • 101000343370Price
    FITTING HYD PLUG 6408-06-O - 1000343370×1
  • 111000340170Price
    MANIFOLD BLOCK BRAKE - 1000340170×1
  • 121000437948Price
    valve - 1000437948×1
  • 131000365402Price
    MAGNET SPOOL - 1000365402×1
  • 141000430957Price
    SWITCH HYD PRESSURE,NC - 1000430957×1
  • 151000343337Price
    BOLT M10 X 90 CARRIAGE 8.8 ZINC - 1000343337×2
  • 165000162829Price
    BOLT-CARR M10X35 4.6,ZN YEL - 5000162829×1
  • 171000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 181000459586Price
    SPACER M10X16 - 1000459586×2
  • 195000010365Price
    NUT-LOCK M10 HEX. - 5000010365×3
  • 201000366591Price
    P-CLIP 3/4 VINYL COAT - 1000366591×1
  • 211000357140Price
    HOSE CLAMP CTB 16 - 1000357140×4
