SM100

SM100 Control Block Diagram

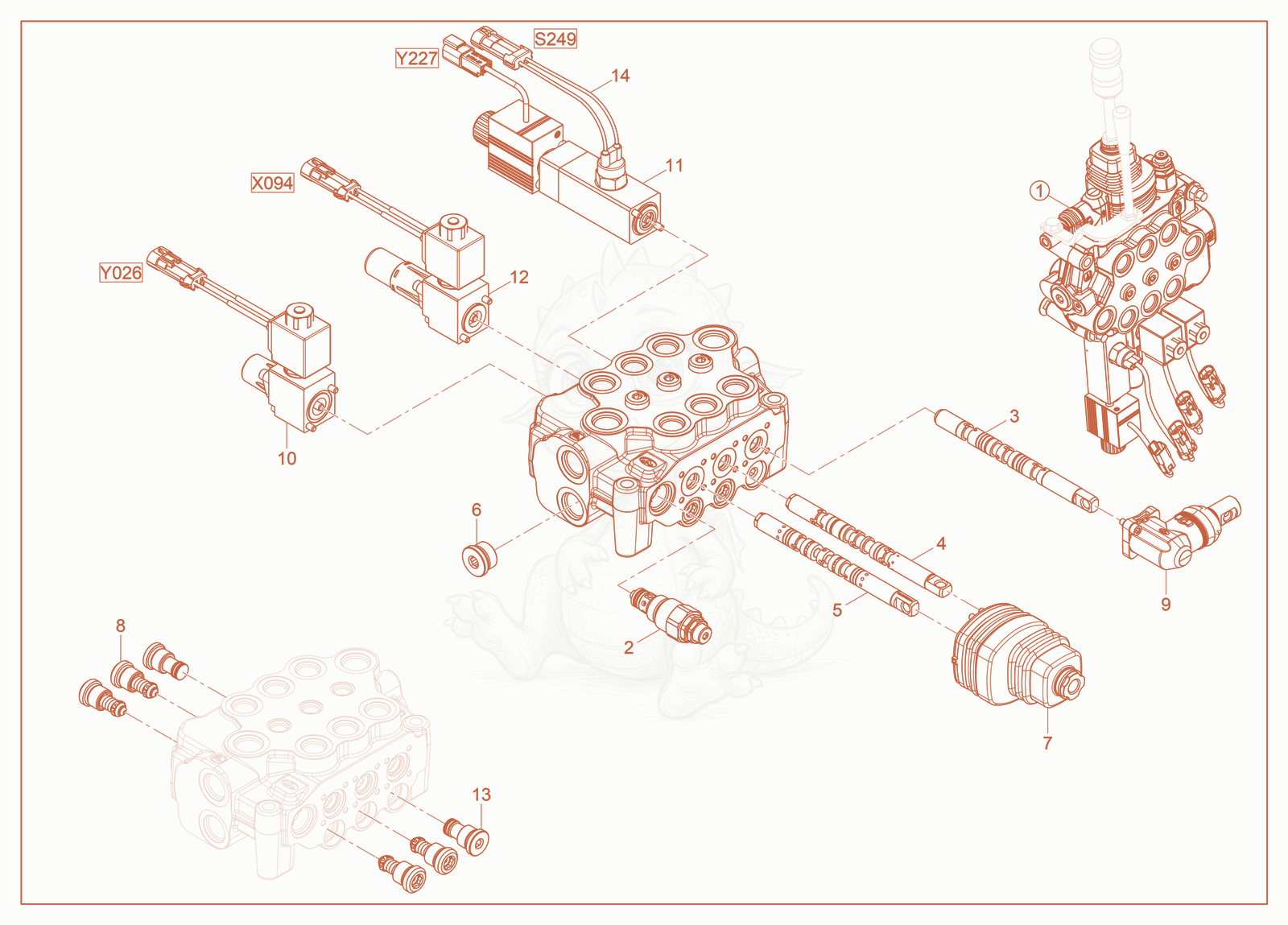

Exploded parts diagram of the Control Block of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000425601Not stocked
    Control valve×1
  • 25100062047Price
    Valve - 5100062047×1
  • 31000472001Price
    Spool - 1000472001×1
  • 41000472003Price
    Spool - 1000472003×1
  • 51000472002Price
    Spool - 1000472002×1
  • 61000472004Price
    SAE #10 Plug - 1000472004×2
  • 75100062048Price
    Joystick Kit - 5100062048×1
  • 81000472005Price
    VALVE-RELIEF - 1000472005×4
  • 95100062049Price
    Control Lever Kit - 5100062049×1
  • 105100062050Price
    Control Valve Kit - 5100062050×1
  • 115100062051Price
    Control Valve Kit - 5100062051×1
  • 125100062052Price
    Control Valve Kit - 5100062052×1
  • 131000472006Price
    Plug - 1000472006×2
  • 145100085600Not stocked
    Control valve switch×1
