RT56-SC TRENCH ROLLER

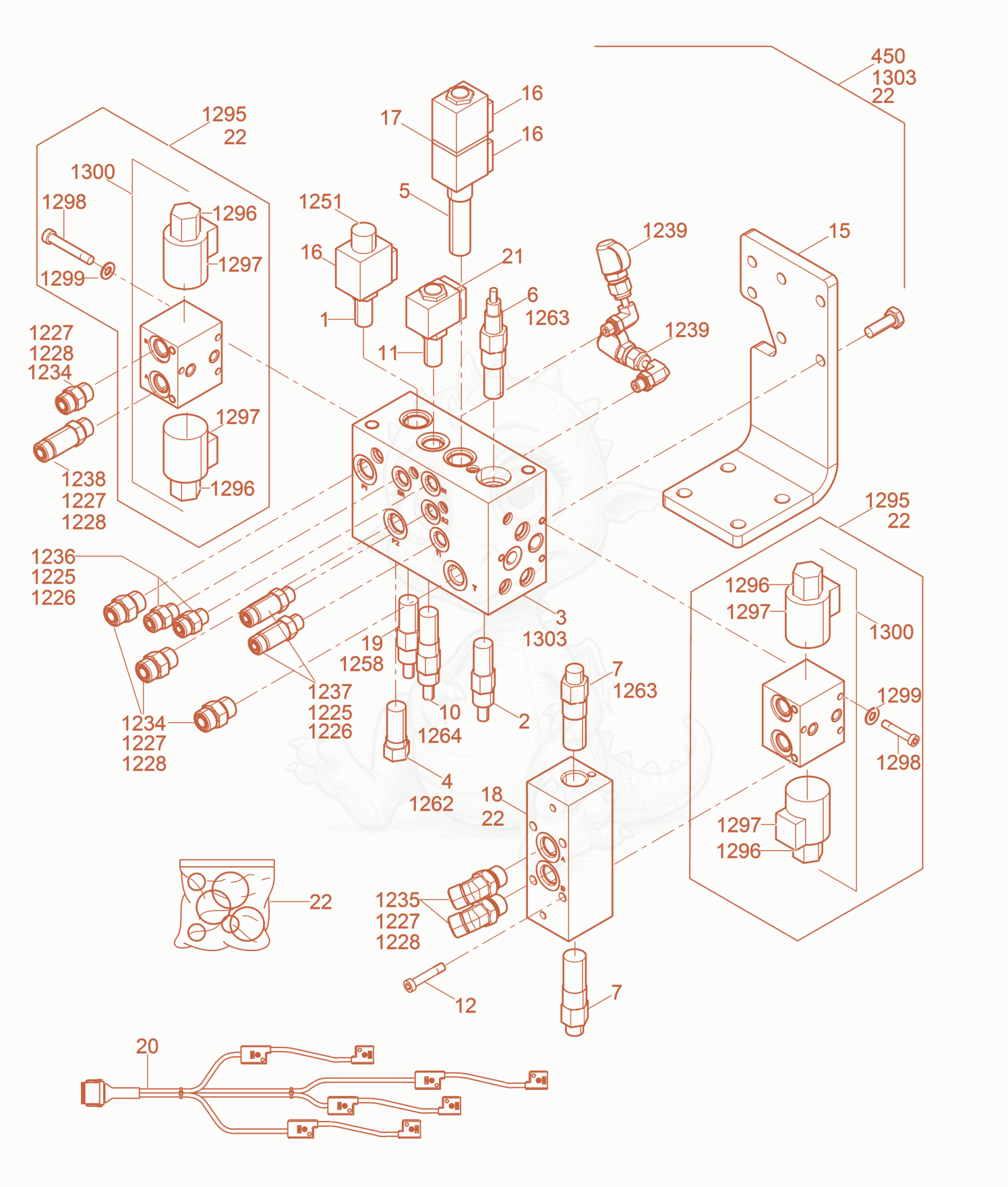

RT56-SC Hydraulic Manifold Diagram
- VALVE-SOLENOID - 5000159539×1
- VALVE-RELIEF - 5000159540×1
- BLOCK-MANIFOLD - 5000159541×1
- VALVE-CHECK - 5000159542×1
- VALVE-SOLENOID - 5000159543×1
- VALVE-RELIEF - 5000159546×1
- VALVE-COUNTERBALANCE - 5000159547×2
- VALVE-REDUCING - 5000159551×1
- VALVE-SOLENOID - 5000159552×1
- SCREW M8 X 70 SHCS - 5000159553×4
- SCREW 1/4-20 SCHCS - 5000159554×6
- BRACKET-MANIFOLD - 5000118614×1
- coil - 5000159544×2
- SPACER-COIL - 5000159545×1
- 185000159548Not stockedBlock×1
- VALVE-RELIEF - 5000158532×1
- WIRING HARNESS-HYD. MANIFOLD - 5000160683×1
- COIL-G,#8,12VDC - 5000160744×1
- SET O-RING,MANIFOLD,RT,SC - 5000161288×1
- 4505000150023Not stockedHydraulic manifold×1
- O-RING .468 X.078 DURO90 3-906 - 5000080731×4
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×4
- O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×7
- O-RING .644 X.087 DURO90 3-908 - 5000080732×7
- FITTING #8 - 5000081583×4
- FITTING-SDE45,08X08ST - 5000086581×2
- FITTING-MALE ADAPTER,STRAIGHT - 5000078816×2
- FITTING #6 - 5000158574×2
- FITTING #8 - 5000158572×1
- FITTING #6 - 5000158575×2
- Nut - 5000160948×1
- KIT-SEAL VALVE - 5000163700×1
- KIT-SEAL VALVE - 5000163701×1
- KIT-SEAL VALVE - 5000163702×1
- KIT-SEAL VALVE - 5000163703×1
- KIT-MDG RT VALVE & MTG.BOLTS - 5000173803×2
- NUT-MDG RT VALVE COIL - 5000176296×4
- COIL-SOLENOID,MDG RT VALVE - 5000176295×4
- BOLT-MDG VALVE MTG - 5000176297×6
- WASHER-MDG VLAVE MTG - 5000176298×6
- VALVE-SPOOL,MDG RT - 5000173865×2
- 13035000178658Not stockedPlug Set×1
