Roller RS600A

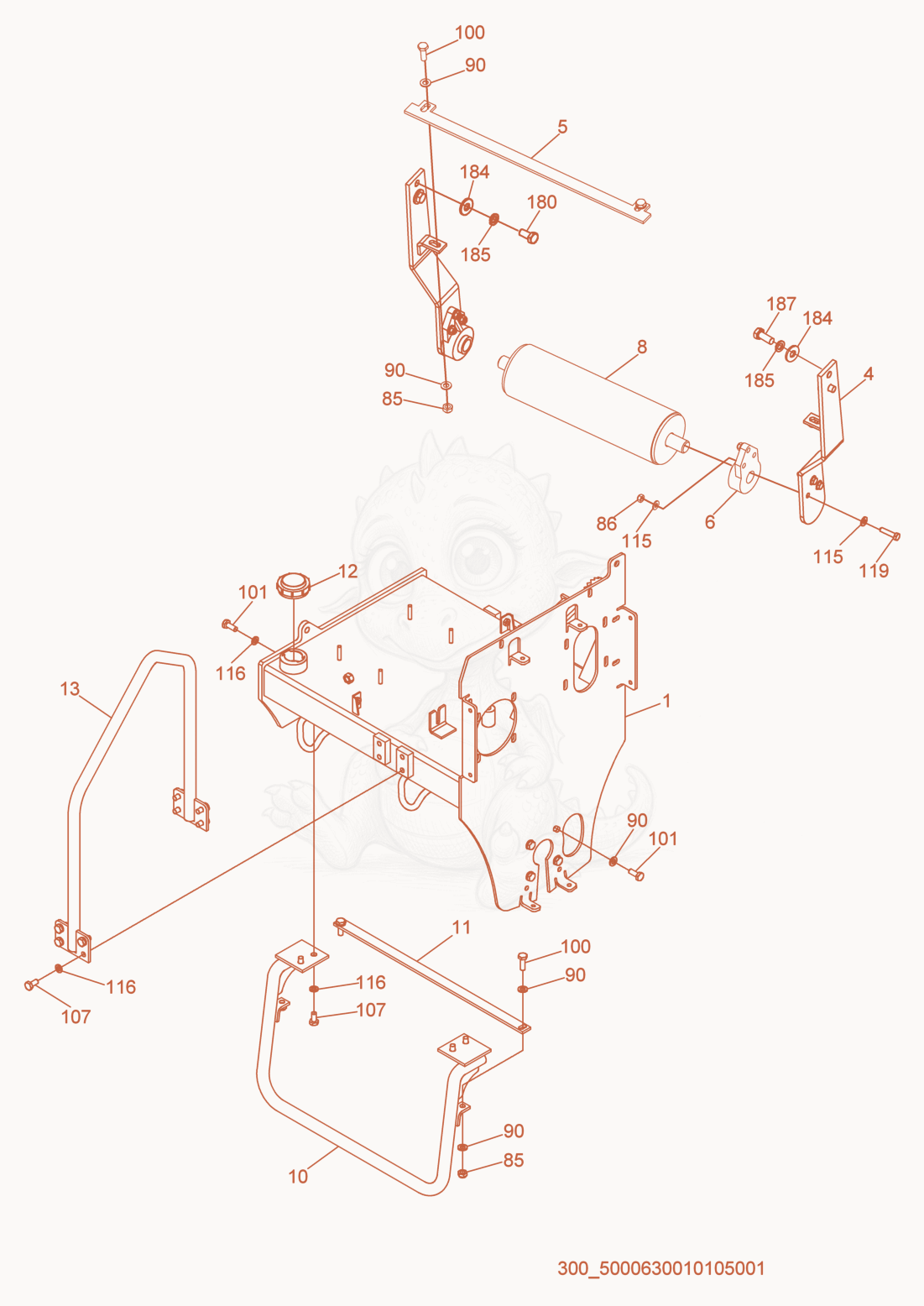

RS600A Frame cpl. Diagram

Exploded parts diagram of the Frame cpl. of a Wacker Neuson RS600A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000405489Not stocked
    Frame weldment×1
  • 45000406558Not stocked
    Bracket×2
  • 55000405491Not stocked
    Scraper×1
  • 65000402455Not stocked
    Flange bearing×2
  • 85000405493Not stocked
    Roller support×1
  • 105000400568Price
    Front Support Weldment - 5000400568×1
  • 115000400703Not stocked
    Scraper×1
  • 125000073167Price
    CAP-WATER TANK - 5000073167×1
  • 135000400560Not stocked
    Lift cage×1
  • 855000010365Price
    NUT-LOCK M10 HEX. - 5000010365×4
  • 865000010367Price
    NUT-LOCK M8 HEX - 5000010367×6
  • 905000010621Price
    WASHER B10.5 FLAT - 5000010621×8
  • 1005000011439Price
    SCREW M10 X 30 HX.HD - 5000011439×4
  • 1015000011440Price
    SCREW M10 X 25 HX.HD. - 5000011440×9
  • 1075000012364Price
    SCREW M10 X 20 HX.HD. - 5000012364×12
  • 1155000033198Price
    WASHER-LOCK B8 - 5000033198×12
  • 1165000407043Price
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×13
  • 1195000011340Price
    SCREW M8 X 35 HX.HD. - 5000011340×6
  • 1805000011423Price
    SCREW M12 X 30 HX.HD. - 5000011423×2
  • 1845000026025Price
    WASHER-STEEL,FLAT - 5000026025×4
  • 1855000012648Price
    WASHER-LOCK B12 - 5000012648×4
  • 1875000011422Price
    SCREW M12 X 35 HX.HD. - 5000011422×2
