RD7 Tandem Roller

RD7HE Piston/Connecting Rod Diagram

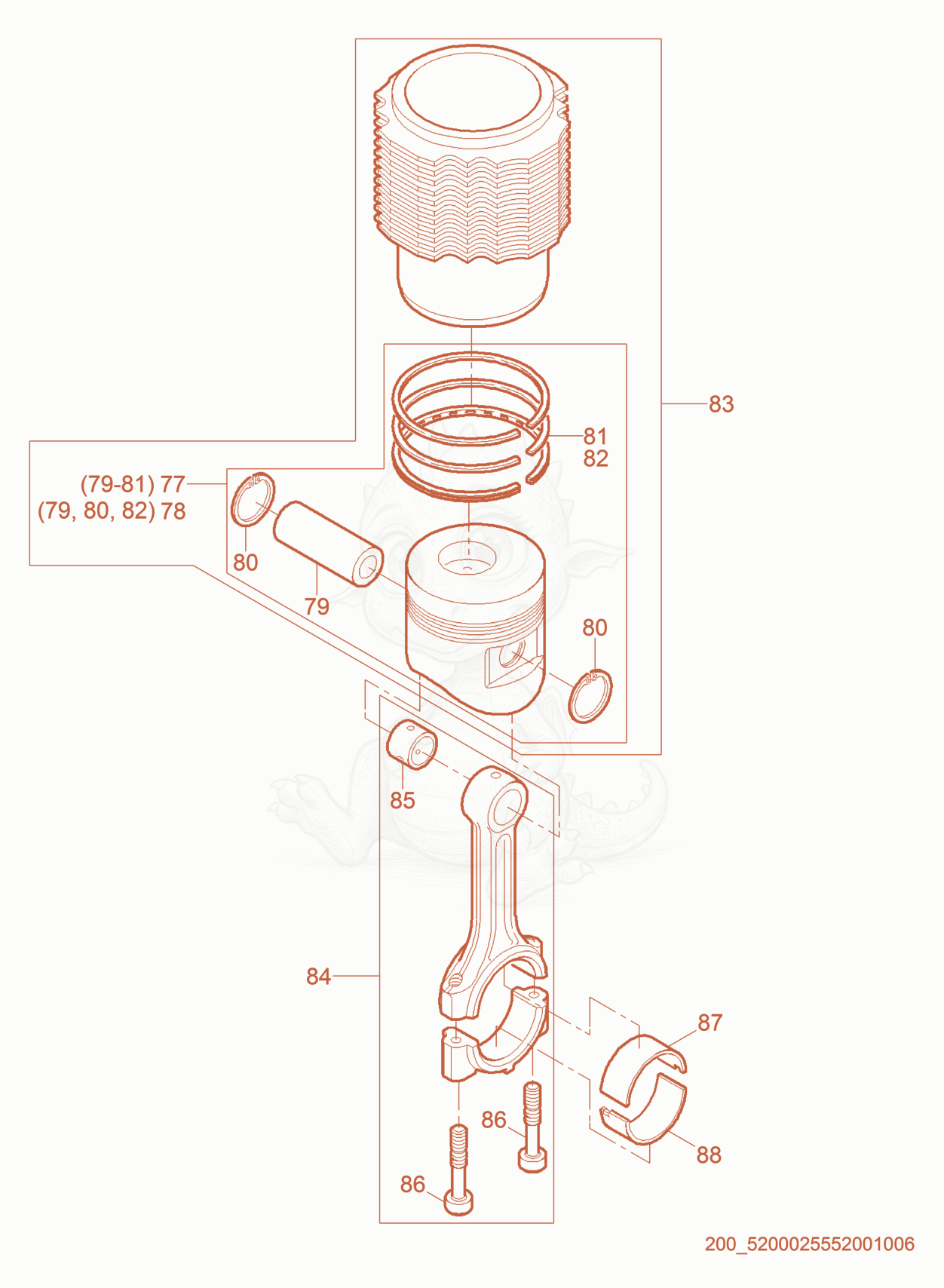

Exploded parts diagram of the Piston/Connecting Rod of a Wacker Neuson RD7HE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 775000226583Price
    PISTON HEAD - 5000226583×1
  • 785000226584Price
    PISTON HEAD,+0.5M - 5000226584×1
  • 785000226585Price
    PISTON HEAD,+1.0M - 5000226585×1
  • 795000104347Price
    PIN-PISTON - 5000104347×1
  • 805000104348Price
    RET.RING - 5000104348×2
  • 815000104346Price
    SET-PISTON RINGS - 5000104346×1
  • 825000106634Price
    PISTON RING SET, 91 DIA. - 5000106634×1
  • 825000207165Price
    SET-PISTON RING +0.5 - 5000207165×1
  • 835000226587Price
    CYLINDER W/PISTON - 5000226587×1
  • 845000104349Price
    CONNECTING ROD CPT - 5000104349×1
  • 855000104350Price
    BUSHING-CONNECTING ROD - 5000104350×1
  • 865000108022Price
    SCREW-CONNECTION ROD - 5000108022×2
  • 875000104352Price
    BEARING-CONNECTING ROD - 5000104352×1
  • 885000106635Price
    BEARING-CONNECTING ROD,0.5MM - 5000106635×1
