RD45-140c DPF

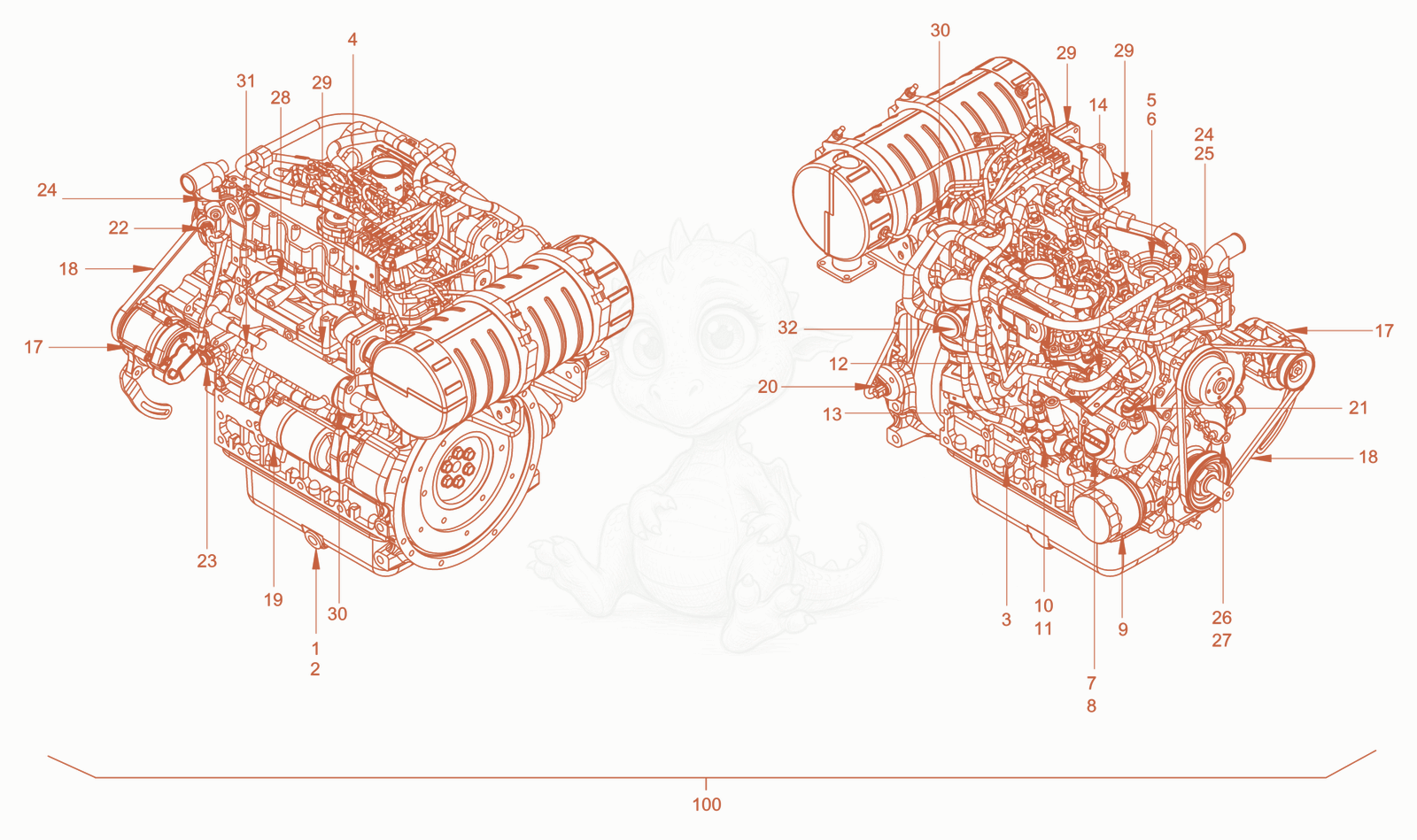

RD45-140CDPF pump drive and engine assembly Diagram

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD45-140CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100024307Not stocked
    locking screw×2
  • 25100024308Not stocked
    sealing×2
  • 35100024304Price
    oil dipstick - 5100024304×1
  • 45100025073Not stocked
    seal, valve cover×1
  • 55100012809Price
    Cover, oil filler, above - 5100012809×1
  • 65100023507Price
    o-ring seal - 5100023507×1
  • 75100012809Price
    Cover, oil filler, above - 5100012809×1
  • 85100023507Price
    o-ring seal - 5100023507×1
  • 95100025106Not stocked
    filter cartridge, lubric. oil×1
  • 105100025003Not stocked
    fuel pump×1
  • 115100025008Not stocked
    o-ring seal×1
  • 125100025004Not stocked
    pump×1
  • 135100025006Not stocked
    sealing×1
  • 145100025005Not stocked
    valve×1
  • 175100011672Not stocked
    Alternator×1
  • 175100012685Price
    Alternator - 5100012685×1
  • 185100059558Not stocked
    toothed v-belt×1
  • 185100025028Price
    v-belt - 5100025028×1
  • 195100012684Not stocked
    Starter×1
  • 205100025011Not stocked
    sensor×1
  • 215100025012Price
    sensor - 5100025012×1
  • 225100023324Price
    sensor - 5100023324×1
  • 235100023676Price
    engine oil pressure switch - 5100023676×1
  • 245100059551Not stocked
    thermostat×1
  • 255100012863Price
    Seal - 5100012863×1
  • 265100059550Not stocked
    water pump×1
  • 275100012873Price
    Seal - 5100012873×1
  • 285100059548Not stocked
    sealing×1
  • 295100025015Price
    sealing - 5100025015×2
  • 305100025016Not stocked
    sealing×2
  • 315100025016Not stocked
    sealing×1
  • 325100024983Price
    filter insert - 5100024983×1
  • 1005100057808Not stocked
    Diesel engine×1
