RD40-130c DPF

RD40-130CDPF cylinder spreader Diagram

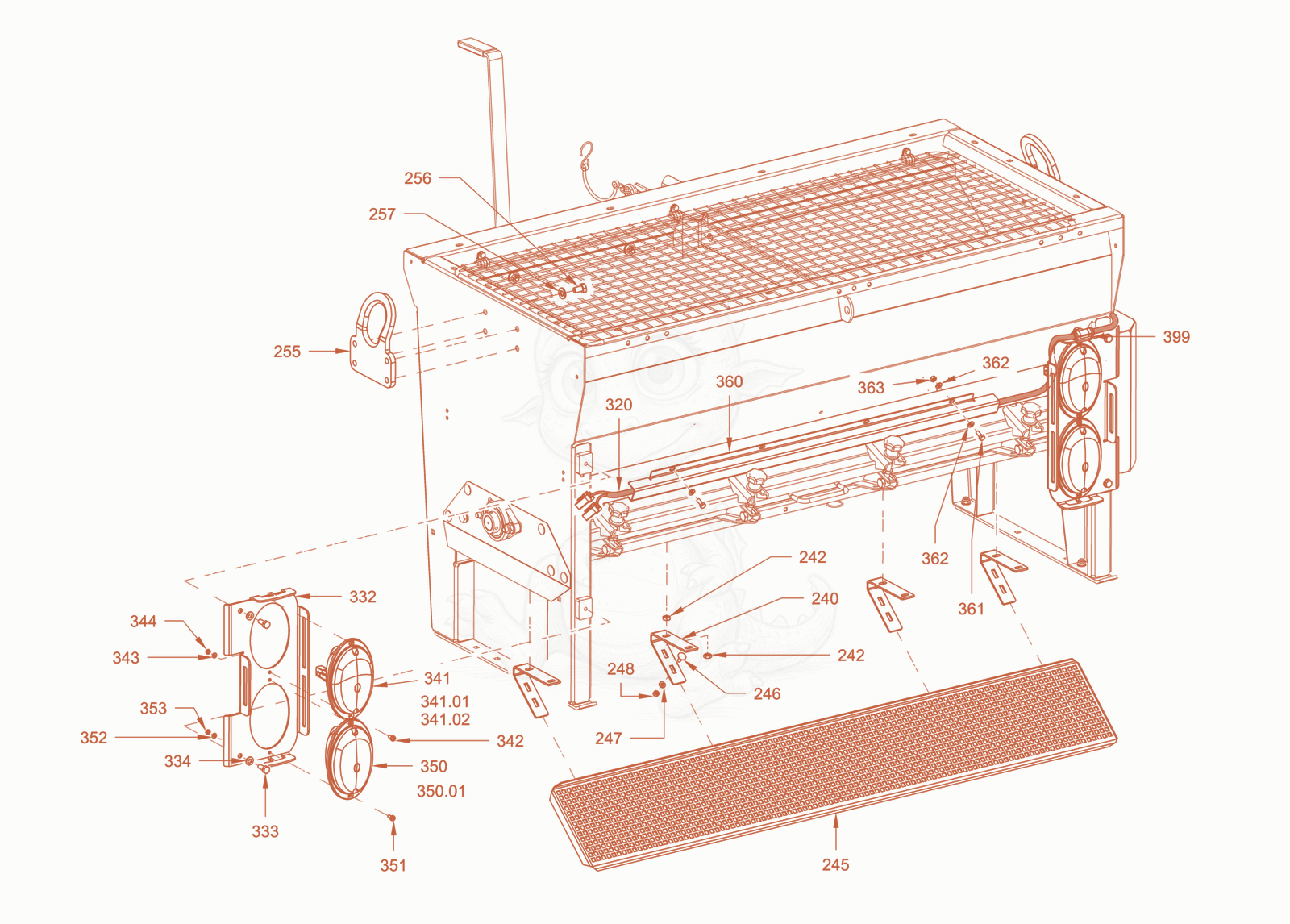

Exploded parts diagram of the cylinder spreader of a Wacker Neuson RD40-130CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2405100013053Not stocked
    Bracket×4
  • 2425100013537Price
    Hexagon nut - 5100013537×16
  • 2455100013028Not stocked
    Perforated plate×1
  • 2465100012931Price
    Mushroom head screw - 5100012931×8
  • 2475100013523Price
    Washer - 5100013523×8
  • 2485100012545Price
    Hexagon nut - 5100012545×8
  • 2555100013076Price
    Towing loop - 5100013076×2
  • 2565100012617Price
    Hexagon screw - 5100012617×8
  • 2575100012967Price
    Locking washer - 5100012967×8
  • 3205100012991Not stocked
    Wire harness×1
  • 3325100013023Not stocked
    Lamp support×2
  • 3335100012515Price
    Hexagon screw - 5100012515×4
  • 3345100012966Price
    Locking washer - 5100012966×4
  • 3415100013448Price
    Lamp - 5100013448×2
  • 3415100012213Price
    Lamp - 5100012213×2
  • 3415100011802Price
    Tail light - 5100011802×2
  • 3425100012591Price
    Fillister head screw - 5100012591×4
  • 3435100012936Price
    Washer - 5100012936×4
  • 3445100011599Price
    Hexagon nut - 5100011599×4
  • 3505100011801Price
    Reversing light - 5100011801×2
  • 3505100013448Price
    Lamp - 5100013448×2
  • 3515100012591Price
    Fillister head screw - 5100012591×4
  • 3525100012936Price
    Washer - 5100012936×4
  • 3535100011599Price
    Hexagon nut - 5100011599×4
  • 3605100013070Not stocked
    Silentbloc×1
  • 3615100012600Price
    Hexagon screw - 5100012600×2
  • 3625100012965Price
    Locking washer - 5100012965×4
  • 3635100012545Price
    Hexagon nut - 5100012545×2
  • 3995100013573Price
    Wire fastener - 5100013573×20
